Chapter 5. Preparing the hardware 133
Part of the information that is stored in the IMM2 can be accessed with F1-Setup by selecting
System Settings  Integrated Management Module. Figure 5-1 shows the first panel of
the IMM2 configuration panel.

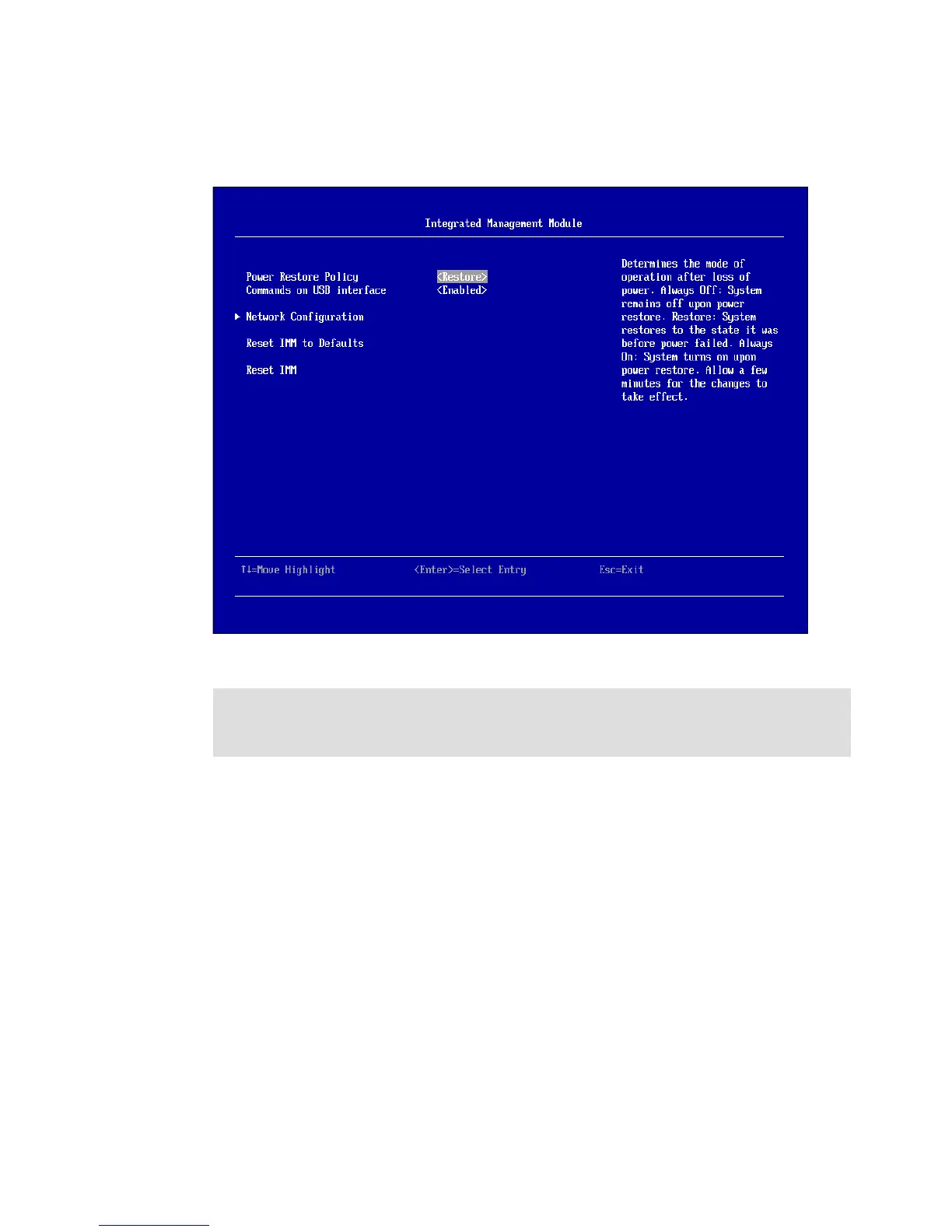

Figure 5-1 Integrated Management Module panel
The next section explains how to connect to the IMM2, set up your network, and gain a
remote presence.
5.1.2 IMM2 network access
The greatest strength of the IMM2 is the ability to completely monitor and manage the server
from over the network. How much functionally you have through this remote access depends
entirely on your configuration of the IMM2.
Tip: If you have a server but you do not know the logon credentials, you can reset it by
going to the panel that is shown in Figure 5-1. From F1-Setup, you can restore the IMM2
configuration to the factory defaults by selecting Reset IMM to Defaults.
