Icom IC-7800 User Manual

5-22
5
FUNCTIONS FOR RECEIVE

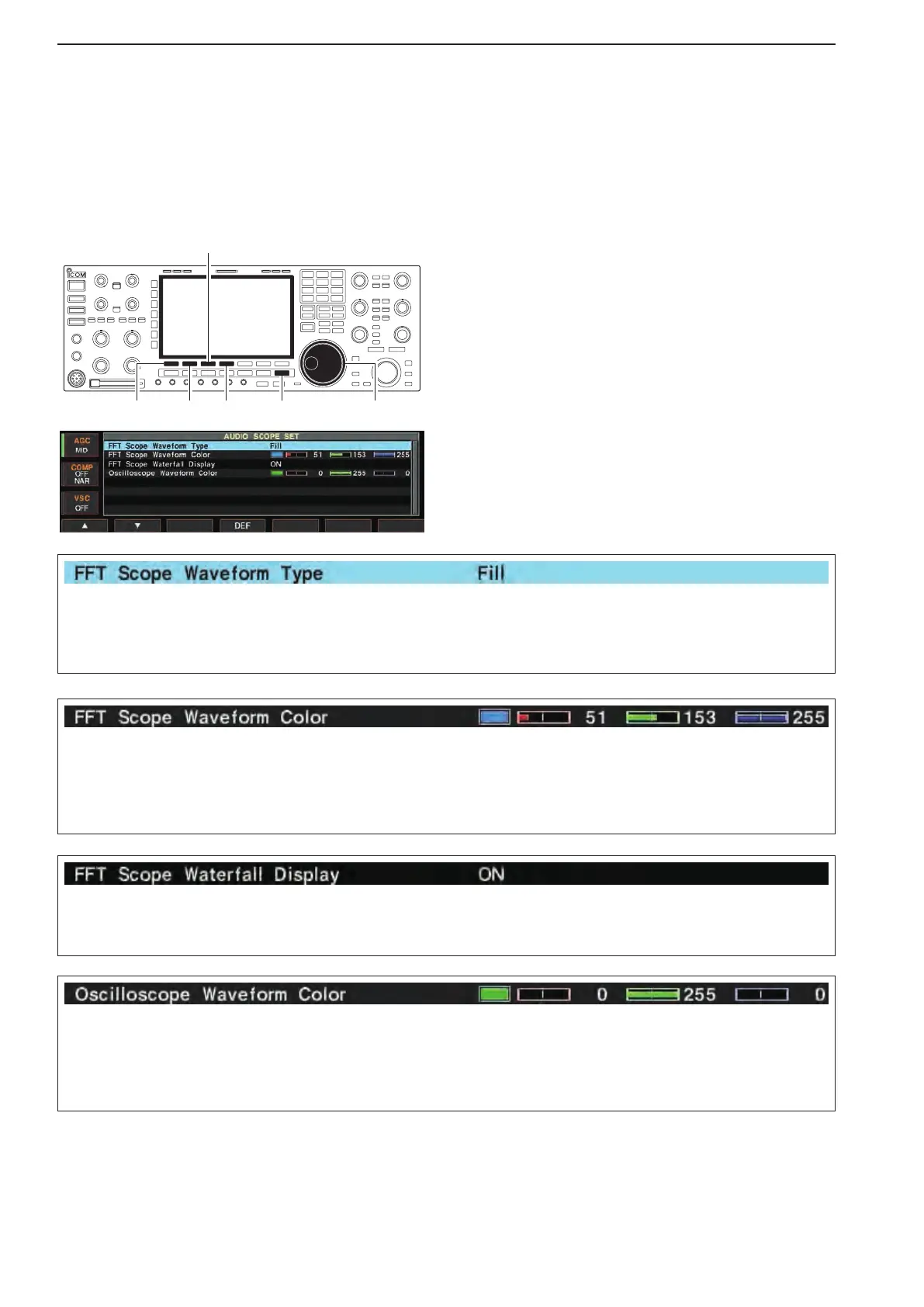

D Audio scope set mode
This set mode is used to set the FFT scope waveform
type, color, waterfall display and oscilloscope wave-
form color.
[F-1•Y] Main dial[EXIT/SET][F-2•Z][F-4•DEF]
[F-3•Ω ≈]
qDuringaudioscopedisplayisON,push[F-7•SET]
to select the Audio scope set mode screen.
wPush[F-1•Y ]or[F-2•Z] to select the desired set
item.
e Set the desired condition using the main dial.
 •Holddown[F-4•DEF]for1secondtoselectthedefault
condition or value.
 •Push [F-3•Ω ≈] to select the set contents for some
items.
r Push [EXIT/SET] to exit from set mode.
Set the waveform color for the FFT scope. •ThecolorissetinRGBformat.
•Push[F-3•Ω ≈] to select R (Red), G (Green) and B
(Blue), and rotate the ratio from 0 to 255 range.
•ThesetcolorisindicatedintheboxbesidetheRGB
scale.
Set the waveform color for the Oscilloscope. •ThecolorissetinRGBformat.
•Push[F-3•Ω ≈] to select R (Red), G (Green) and B
(Blue), and rotate the ratio from 0 to 255 range.
•ThesetcolorisindicatedintheboxbesidetheRGB
scale.
Select the waveform type for the FFT scope.  •Fill :Thewaveformisrepresentedbythe
color.
 •Line :The waveform is represented by
outline.
Select the waterfall display ON or OFF.  •ON :Displaysthe waterfall onthe FFT
scope.
 •OFF :Doesnotdisplaythewaterfall.
