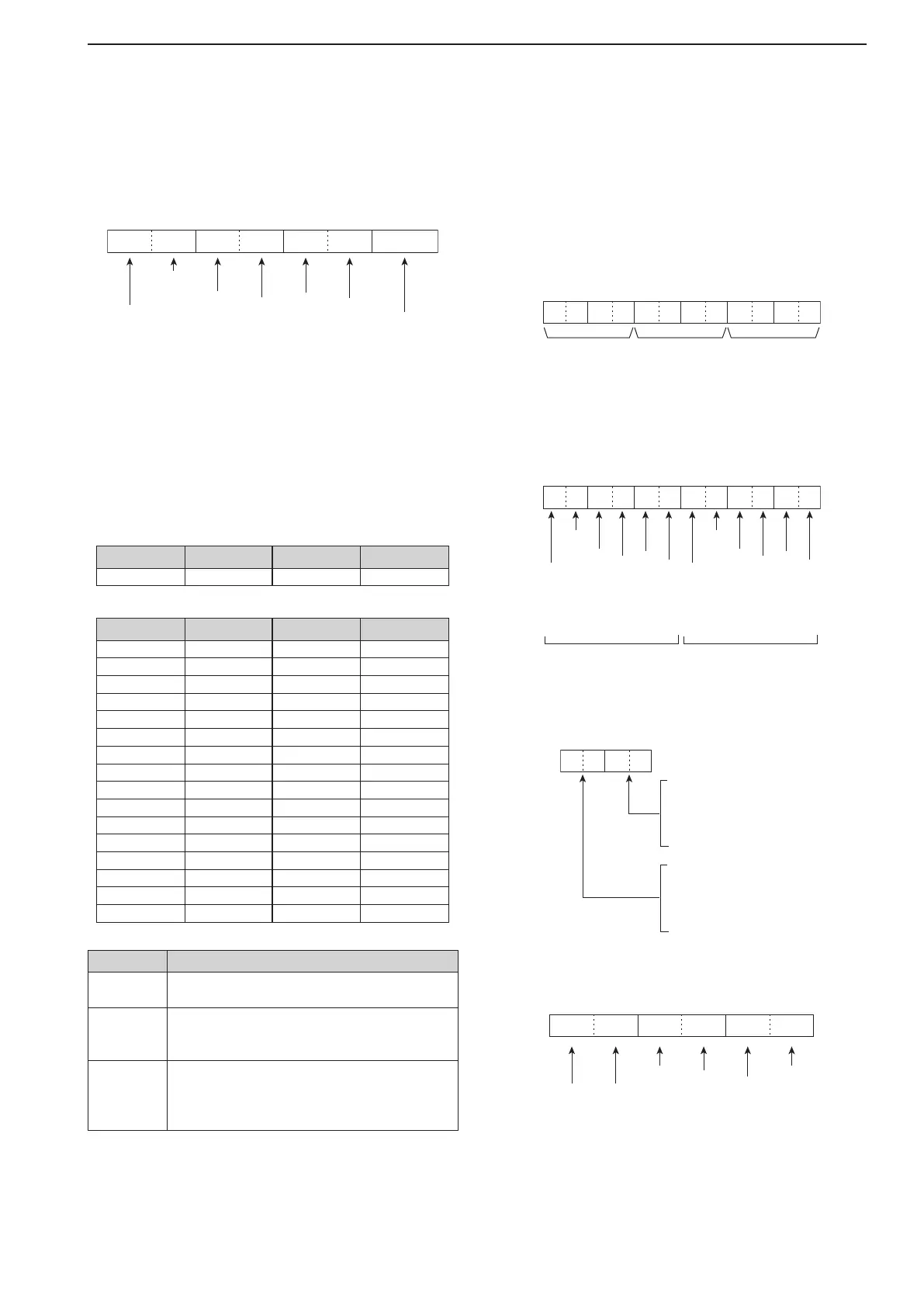

Icom IC-7800 User Manual

14-11
14
CONTROL COMMAND
• Offset frequency setting
Command : 1A 050071, 050072, 050077
1 kHz digit: 0–9 100 Hz digit: 0 (fixed) 100 kHz digit: 0–9 10 kHz digit: 0–9 10 MHz digit: 0–9
†
1 MHz digit: 0–9 Direction: 00=+ direction 01=– direction
q
0XXXXXX
we
0
r*
*No need to enter for transverter offset frequency setting.
†
Transverter offset only; Fix to ‘0’ for split offset setting.
• Codes for memory name, opening message and
CLOCK2 name contents
- Character’s code— Alphabetical characters
Character ASCII code Character ASCII code
A–Z 41–5A a-z 61–7A
- Character’s code— Symbols
Character ASCII code Character ASCII code
! 21 # 23
$ 24 % 25
& 26 \ 5C
? 3F ” 22
’ 27 ` 60
^ 5E + 2B
− 2D
✱
2A
/ 2F . 2E
, 2C : 3A
; 3B = 3D
< 3C > 3E
( 28 ) 29
[ 5B ] 5D
{ 7B } 7D
| 7C _ 5F
¯ 7E @ 40
Command Set item/available characters
1A 00 Memory name
All characters are available.
1A 050058 Opening message
Capital letters, numerals, some symbols (− / .
@) and space are available.
1A 050063 CLOCK2 name
Capital letters, small letters, numerals, some
symbols(!#$%&\?"’`^+–✱/ . , : ; = < > (
) [ ] { } | _ ¯ @) and space are available.
• Color setting
Command : 1A 050112, 050113, 050153, 050154,
050155, 050156, 050160, 050161,
050162, 050163, 050191, 050193,
050221, 050225, 050227
q
0 XXX0XXX0 XXX
werty
R (Red)
0000–0255
G (Green)
0000–0255
B (Blue)
0000–0255
• Bandscope edge frequency setting
Command : 1A 050121, 050122, 050123, 050124,
050125, 050126, 050127, 050128,
050129, 050130, 050131, 050132
1 kHz: 0–9 100 Hz: 0 (fixed) 100 kHz: 0–9 10 kHz: 0–9 10 MHz: 0–6 1 MHz: 0–9 1 kHz: 0–9 100 Hz: 0 (fixed) 100 kHz: 0–9 10 kHz: 0–9 10 MHz: 0–6 1 MHz: 0–9
q
X XXXXXXXXXXX
werty
Lower edge Higher edge
• Data mode with filter width setting
Command : 1A 06
q
X XXX
w
00=Data mode OFF
01=FIL1
02=FIL2
03=FIL3
00=Data mode OFF
01=Data mode 1 (D1)
02=Data mode 2 (D2)
03=Data mode 3 (D3)
• Repeater tone/tone squelch frequency setting
Command : 1B 00, 1B 01
100Hz digit: 0–2 10 Hz digit: 0–9 1 Hz digit: 0–9 0.1 Hz digit: 0–9 Fixed digit: 0* Fixed digit: 0*
q*
00XXX
we
X
*Not necessary when setting a frequency.
