2
PANEL DESCRIPTION
2

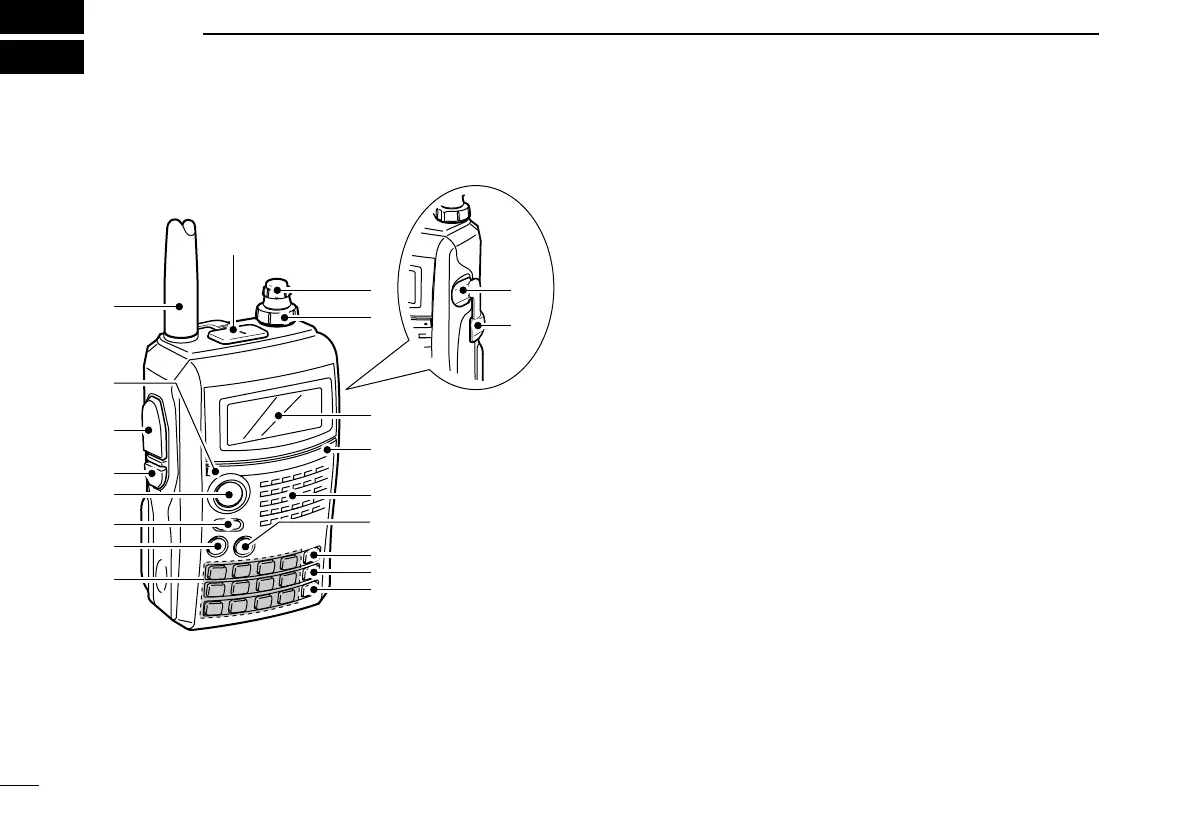

■ Front, top and side panels
qANTENNA CONNECTOR (p. 1)
Connects the supplied antenna.
• An optional AD-92SMA adapter (p. 122) is available for connect-
ing an antenna with a BNC connector.
wTX/RX INDICATOR [TX/RX] (p. 24)
Lights green while receiving a signal or when the squelch
is open; lights red while transmitting.
ePTT SWITCH [PTT] (p. 24)
Push and hold to transmit, release to receive.
rSQUELCH KEY [SQL]
➥ Push and hold to open the squelch temporarily and
monitor the operating frequency. (p. 22)
➥ While pushing and holding this key, rotate [DIAL] to ad-
just the squelch level. (p. 21)
tMENU/LOCK KEY [MENU/LOCK]
➥ Push to toggle menu screen indication ON and OFF.
(p. 85)
➥ Push and hold for 1 sec. to toggle the lock function ON
and OFF. (p. 25)
yPOWER KEY [PWR]
Push and hold for 1 sec. to turn the transceiver power ON
and OFF.
uMAIN/DUAL KEY [MAIN/DUAL]
➥ Push to select the main band between A and B bands.
(p. 26)
➥ Push and hold for 1 sec. to toggle the dualwatch func-
tion ON and OFF. (p. 25)
iKEYPAD (pgs. 4, 5)
