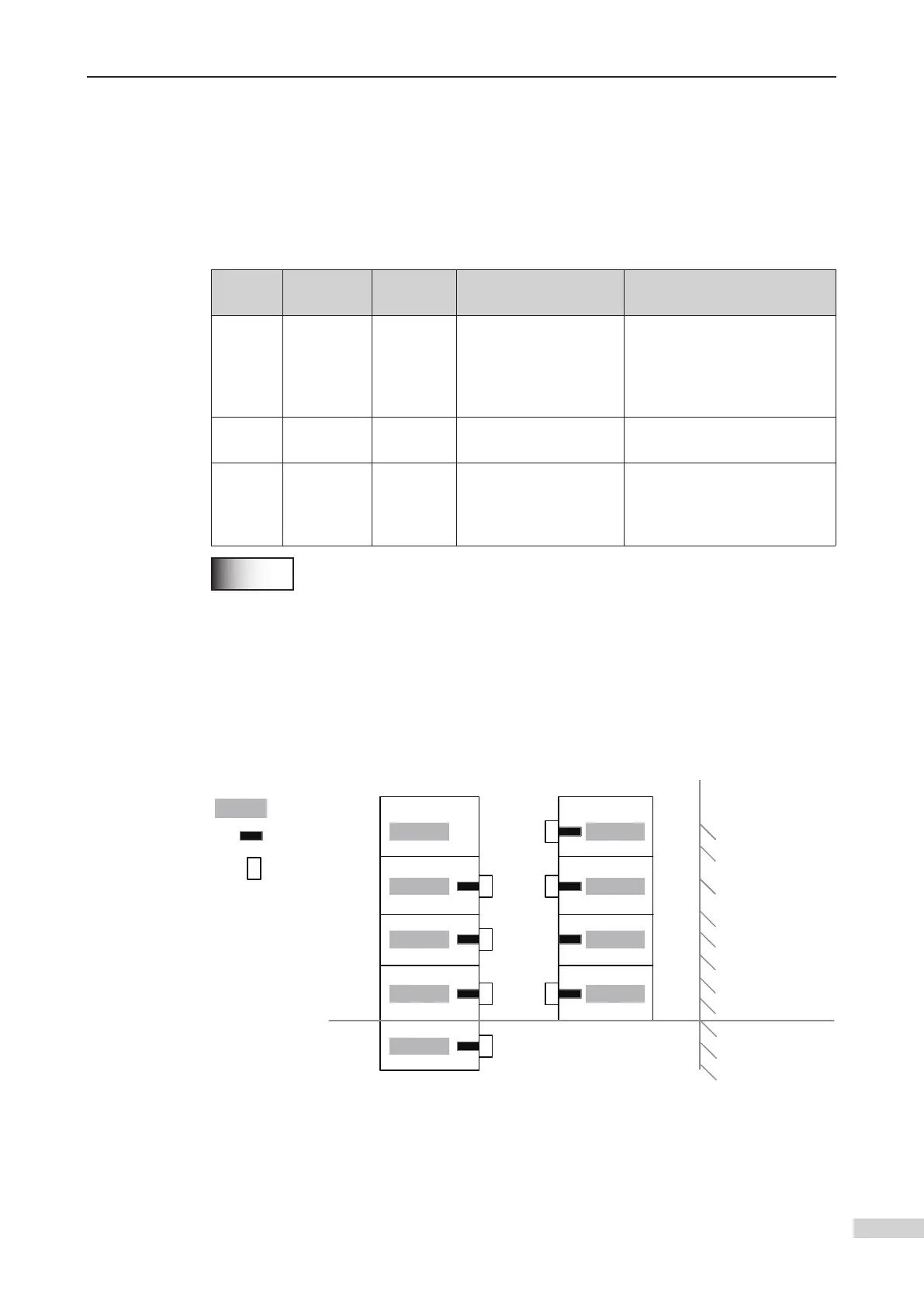

Inovance Monarch NICE 3000 new Series User Manual

9 Description of Functions and Schemes
-
329
-
󶍿
󶍿
󶍿󶍽
󶍿󶍿
󶍿
2 Parameters
Function
Code
Description
Setting
Range
Setting in Parallel
Control
Remarks
F6-07
Number of
elevators
in parallel/
group
mode
1 to 8 2 -
F6-08
Elevator
No.
1 to 8
Main elevator:1;
auxiliary elevator: 2
-
F6-09
Program
control
selection
-
Bit3 = 1: Parallel/group
control implemented
at CAN2
Set Bit3 to 1 when the CAN2
communication port CN4
is used for parallel/group
control.
Example
Two elevators in parallel control
󶍿󶍿
󶍿󶍿󶍿󶍿
󶍿󶍿󶍿󶍿
4.
󶍾
4
3
2
1
5
4
2
Elevator 1#
Elevator 2#
Physical floor 5
Floor B1
Floor 1
Floor 2
Floor 3
5
Leveling plate
HCB address
User floor
Floor 4
(Not stop)
Floor 4 Floor 4
Floor 3
Floor 2
Floor 1
Physical floor 4
Physical floor 3
Physical floor 2
Physical floor 1
󶙽Floor diagram of two elevators in parallel control
