Interacoustics Eclipse EP25 User Manual

D-0120588-B – 2019/03
Eclipse – Instructions for Use - EN Page 11

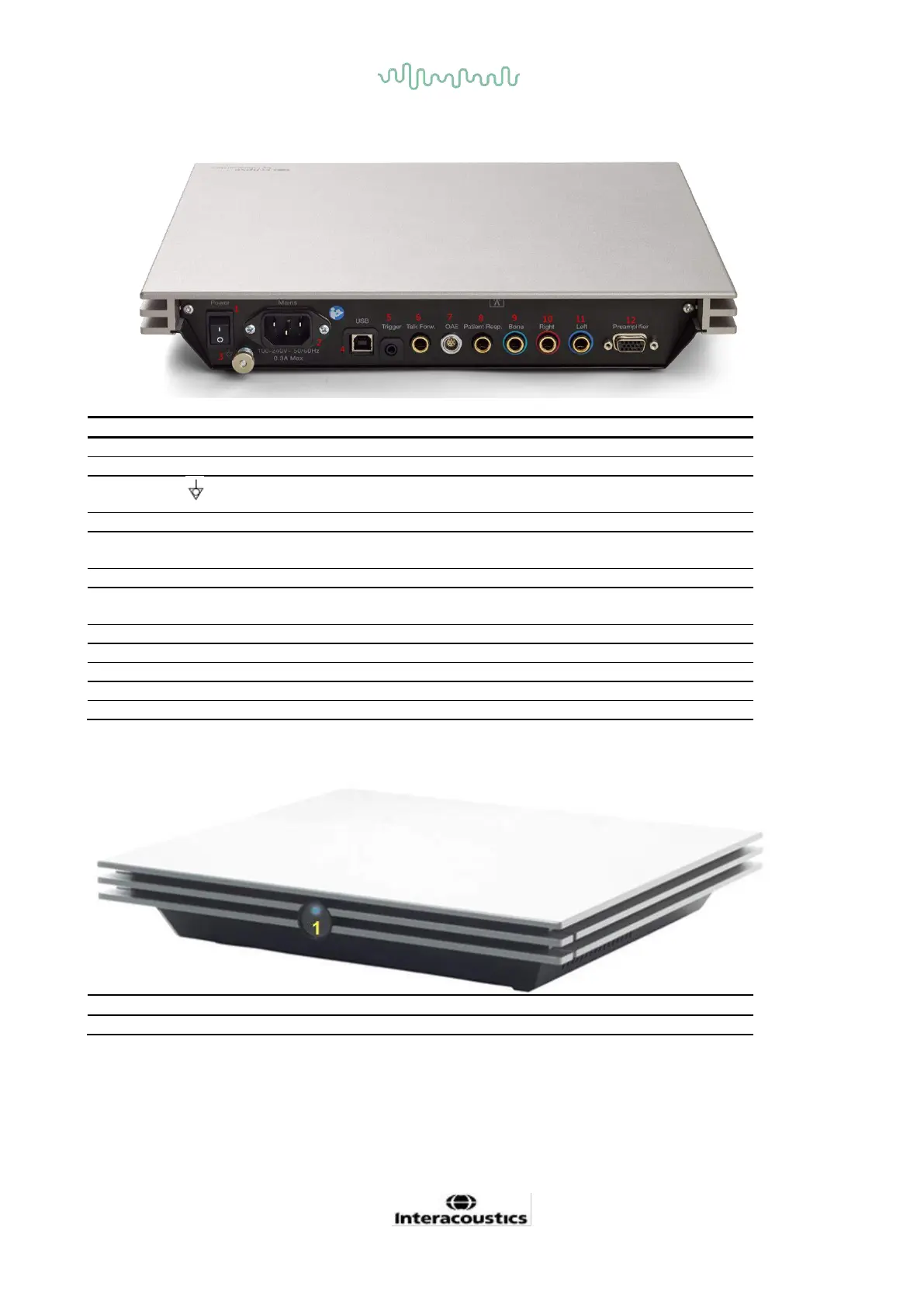

2.3.2 Eclipse back panel
Position:
Symbol:
Function:
1
Power
Turns power on/off
2
Mains
Plug for mains cable, 100-240V~ 50-60 Hz
3
Connection for equipotentiality, please refer to the chapter
markings.
4
USB/PC
Plug for USB cable to connect to PC
5
Trigger In/Out
Connector for trigger input/output
E.g. eABR (cochlear implant) testing etc.
6
Talk Forward
Connector for talk forward microphone
7
OAE
Plug for the OAE probe. Note the OAE probe is dedicated
to one Eclipse only! Calibration is stored on the Eclipse.
8
Patient Resp.
Plug for patient response button
9
Bone
Plug for bone conductor
10
Right
Plug for right headphone/insert earphone
11
Left
Plug for left headphone/ insert earphone
12
Preamp.
Plug for Preamplifier
2.3.3 Eclipse front panel
Position:
Symbol:
Function:
1
Power indication
Power on – blue light. Power off - no light.
