D-0120588-B – 2019/03
Eclipse – Instructions for Use - EN Page 67
5 Research module
The research module license enables options to export averaged curves. It can also be used to log each
sweep so the entire recording can be “replayed”. The exported data can be analyses further under eventually
Excel and Matlab programs.

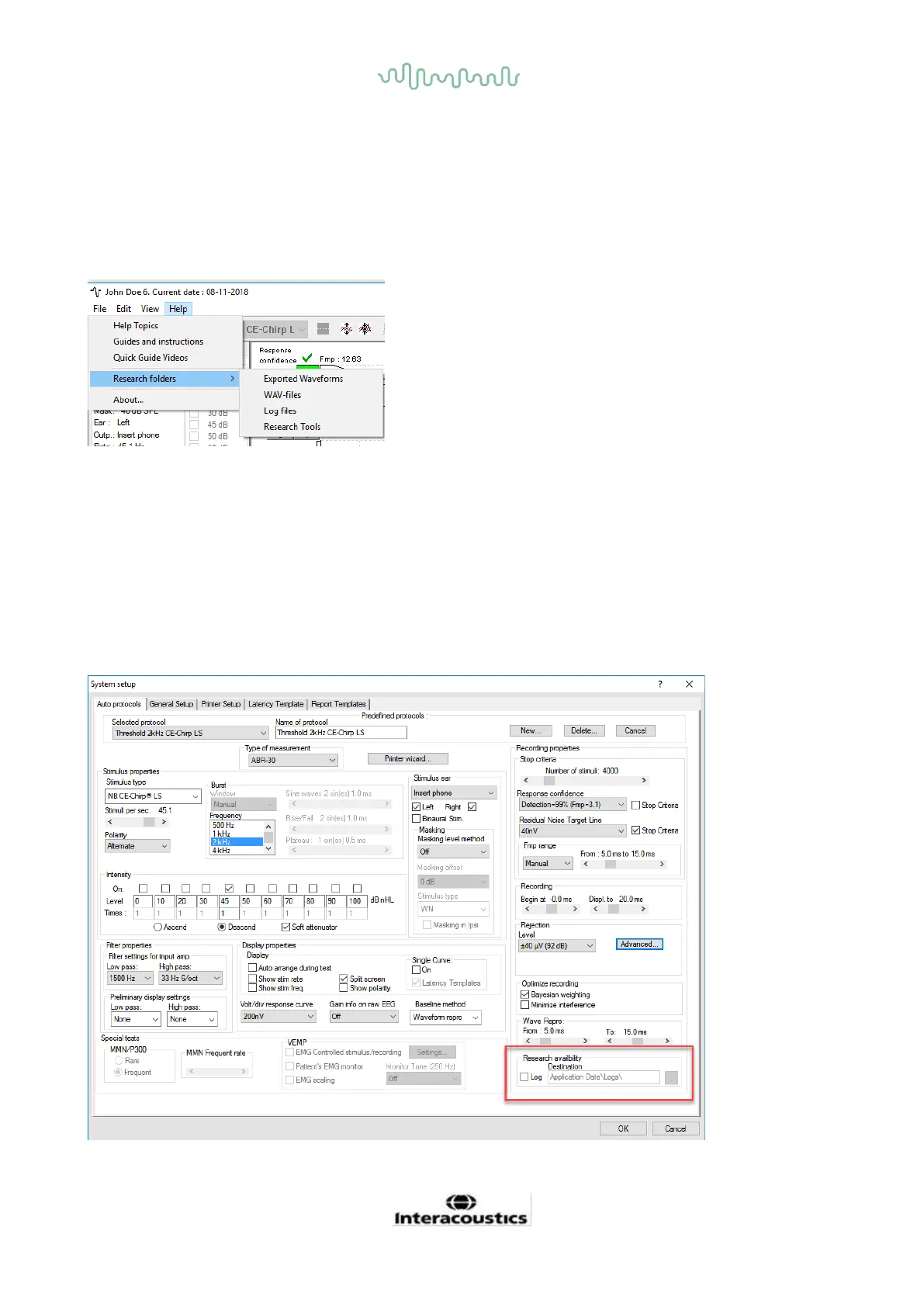

For quick access to the research files and folders, go to help and open the folder of interest.
5.1.1 Logging of each sweep for a later ”replay”
First set a folder to save the logged data in the protocol from where data needs to be logged. See picture.
Create and set folder e.g. “C:\EP Log”
Start logging data, select the protocol and run the test, e.g. here protocol Loopback test.
Now all sweep and data for this session has been logged and saved to the “C:\EP Log” folder.
All raw data are hardware filtered.
Open the C:\EP Log folder and start using the data under Matlab/Excel etc.
