D-0120588-B – 2019/03
Eclipse – Instructions for Use - EN Page 20

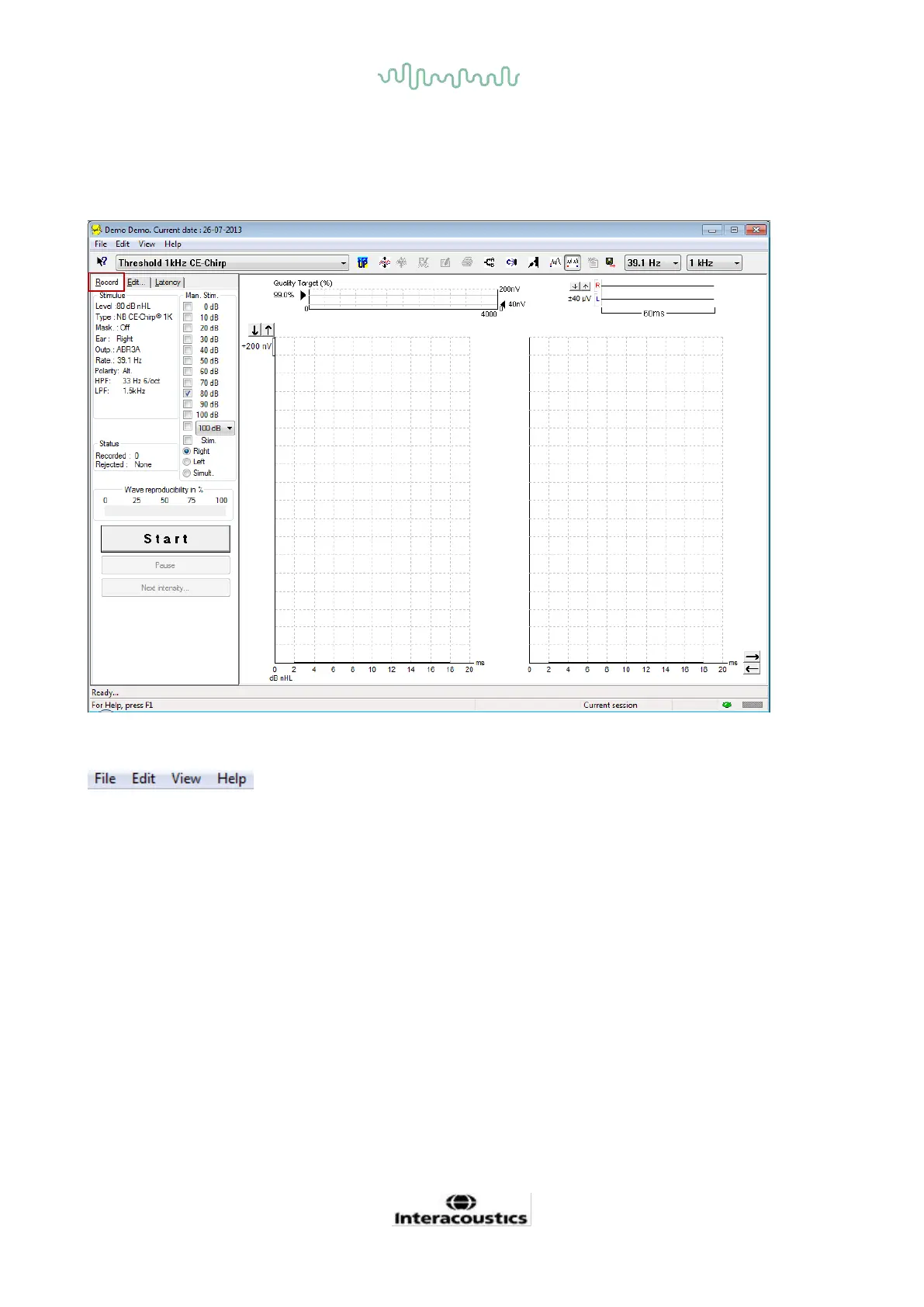

3.1 The record tab
The following section describes the elements of the Record Tab. Some functions will also be available in
the Edit Tab.
3.1.1 Main menu items
File provides access to System setup, Print all pages, Print preview, Print setup and Exit.
Edit provides access to Delete waveform marker and Delete waveform markers on all curves.
1. Select Delete waveform marker to delete a specific waveform marker on the selected curve.
2. Select Delete waveform markers on all curves to delete all waveform markers for the selected
curve.
View provides access to waveform display options.
1. Select Left to view only the recorded left ear curves on the screen (Alt+V + L).
2. Select Right to view only the recorded right ear curves on the screen (Alt+V + R).
3. Select Both L & R to view both the left and right recorded curves on the screen (Alt+V + B)
4. Select Show cursor to enable the cursor function.
Help provides access Help topics and About...
1. Select Help Topics for a comprehensive list of help topics from the operation manual.
2. Select About... to access information about the software version number, DSP1, DSP2, Hardware
version and the Firmware version.
