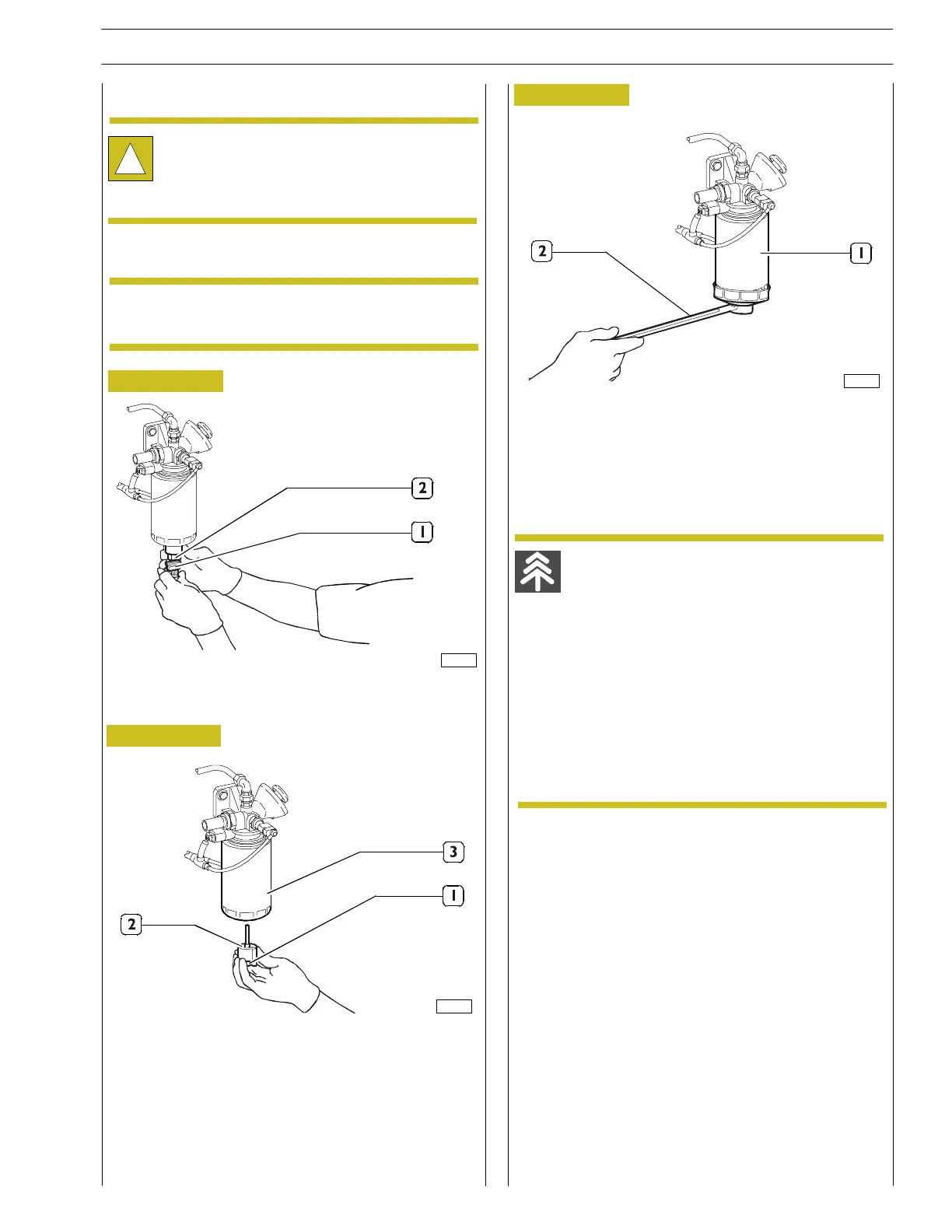

Figure 3
Figure 4
Figure 5
- Remove the connector (3) for indicating water in the
fuel filter by acting on the locking piston (4).
- Turn the screw (1) and separate the c onnectin g head (2)
from the filter casing (3).
- If the condensate drain operation is carried out, retighten
the screw plug as soon as the fuel begins to emerge.
- If you need to change the filter, fully drain the diesel in
the filter cartridge and separate component (2) from
filter cartridge (3).
- After positioning t he tool 99360076 under the filter,
unscrew and remove the filter (1) with the aid of a 27
mm wrench (2).
CHANGING FUEL PREFILTER AND
WATER SEPARATOR FILTER
!
Handle all parts extremely carefully .
Never get your hands or fingers between pieces.
Wear the required safety cloth ing such as goggles,
gloves, safety shoes and helmet.
To change the fuel pre—filter and water separator filter,
proceed as illustrated here.
Before disassemblin g, place under the filter a basin
of suitable capacity.
Improper waste disposal is a threat for the
environment. Potentially hazardous waste used on
IVECO vehicles includes lubricants, fuels, coolants,
filters and batteries.
— Use watertight containers when draining off
fluids. Never use containers for foodstuffs or
beverages that can lead people to drink from
them.
— Never throw waste on the ground, on tips or
in water c ou rses.
— Obtain information on the appropriate ways
of recyc lin g or dispo sin g of waste from the
local authorities or c o llect ion centres.
Hand screw and tighten for another 3/4 turn.
83486
NOTE
83488
83487
SECTION 3 - INDUSTRIAL APPLICATION
87
VECTOR 8 ENGINES
Print P2D32V001E Base - April 2006
