Tecnical view

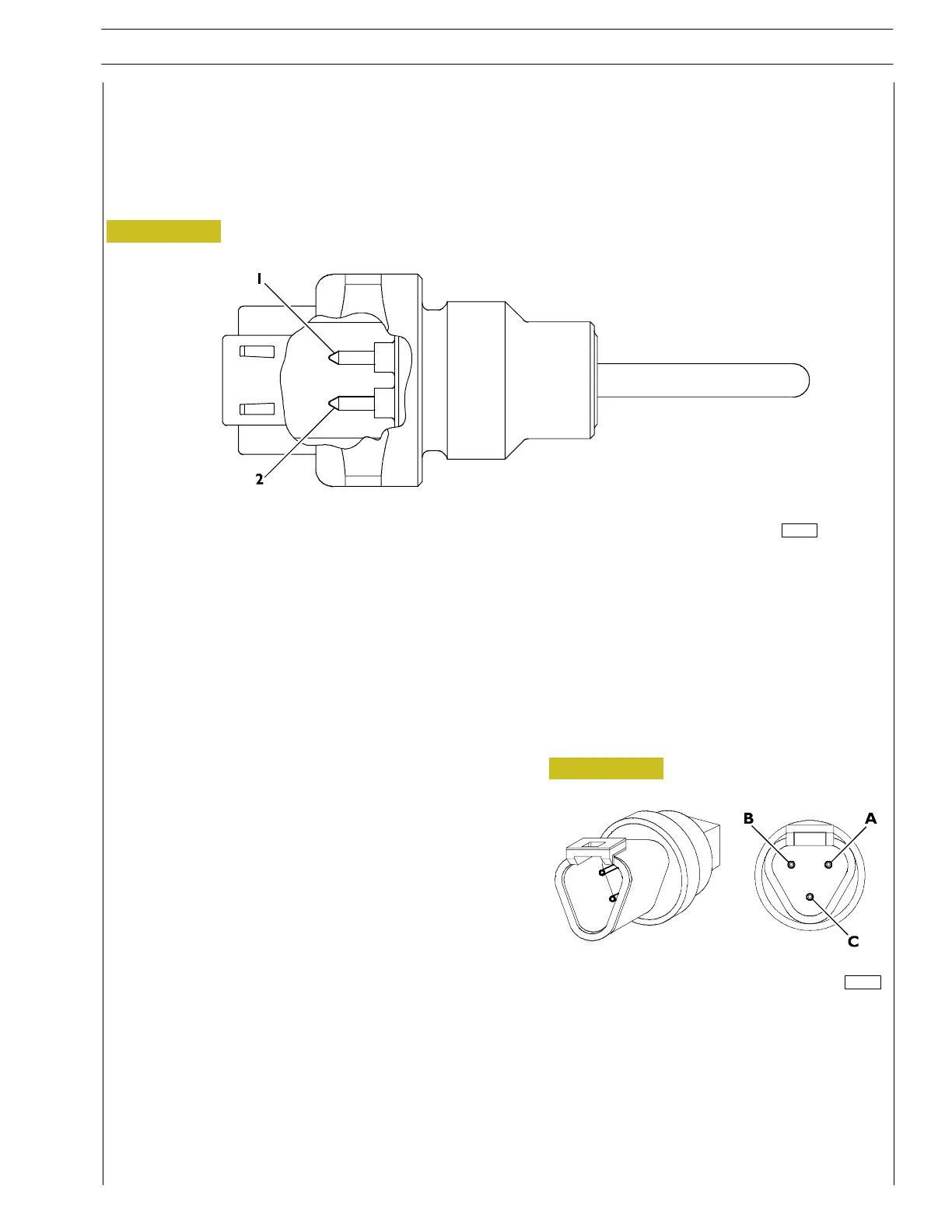

1. electrical signal - 2. Ground
Pressure sensors
The pressure sensors are used to indicate the oil pressure (reference 3, Figure 1), atmospheric pressure (reference 5, Figure 1)
and turbo ou tlet air pressure (reference 13, Figure 1) valu es to the electronic un it.
Features:
Air pressure sensor
- max pressure : 472 kPa (absolut). .....
- voltage 5 ± 0.25 Vdc............
- energy absorption 20 mA Max....
- Tightening torque 10 ± 2 Nm....
Engine oil pressure sensor
- max pressure 1135 kPa (absolut).......
- voltage 5 ± 0,25 Vdc............
- energy absorption 20 mA Max....
- Tightening torque 10 ± 2 Nm....
Atmosferic pressure sensor
- max pressure 116 kPa (assoluta).......
- voltage 5 ± 0,25 Vdc............
- energy absorption 20 mA Max....
- Tightening torque 10 ± 2 Nm....
Figure 3
Figure 4
Engine components
Temperature sensors
These are NTC type sensors an d are used to indic a te the operating temperatures of the en g ine coolant (reference 1, Figure 1),
engine oil (reference 2, Figure 1), fuel (reference 6, Figure 1) and exchanger outlet air (reference 12, Figure 1) to the electronic
unit
A. feed - B. ground - C. Electrical signal
89783
89784
SECTION 3 - INDUSTRIAL APPLICATION
47
VECTOR 8 ENGINES
Print P2D32V001E Base - April 2006
