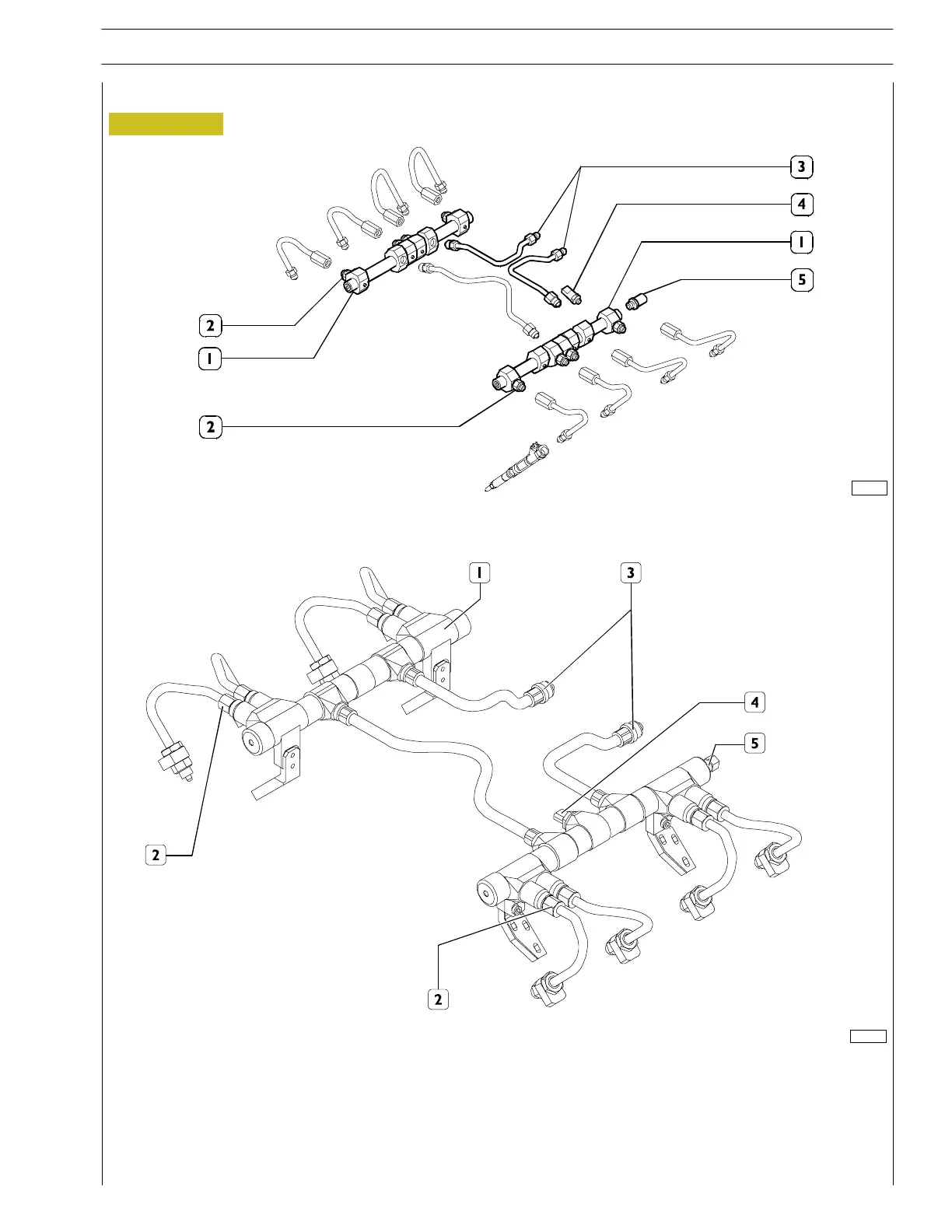

Figure 18
Rail (pressure accumulator)
1. Common rail (one for each row) — 2. Flow limiters — 3. Fuel inlet from the high—pressure pump (on e for each common
rail) — 4. Pressure sensor — 5. Pressure relief valve (one o n the right—hand rail)
112490
81388
RAIL FOR G-DRIVE / DRAGON / SPRINKLER APPLICATIONS
RAIL FOR GRIFFON APPLICATION
SECTION 2 - FUEL
21
VECTOR 8 ENGINES
Print P2D32V001E Base - April 2006
