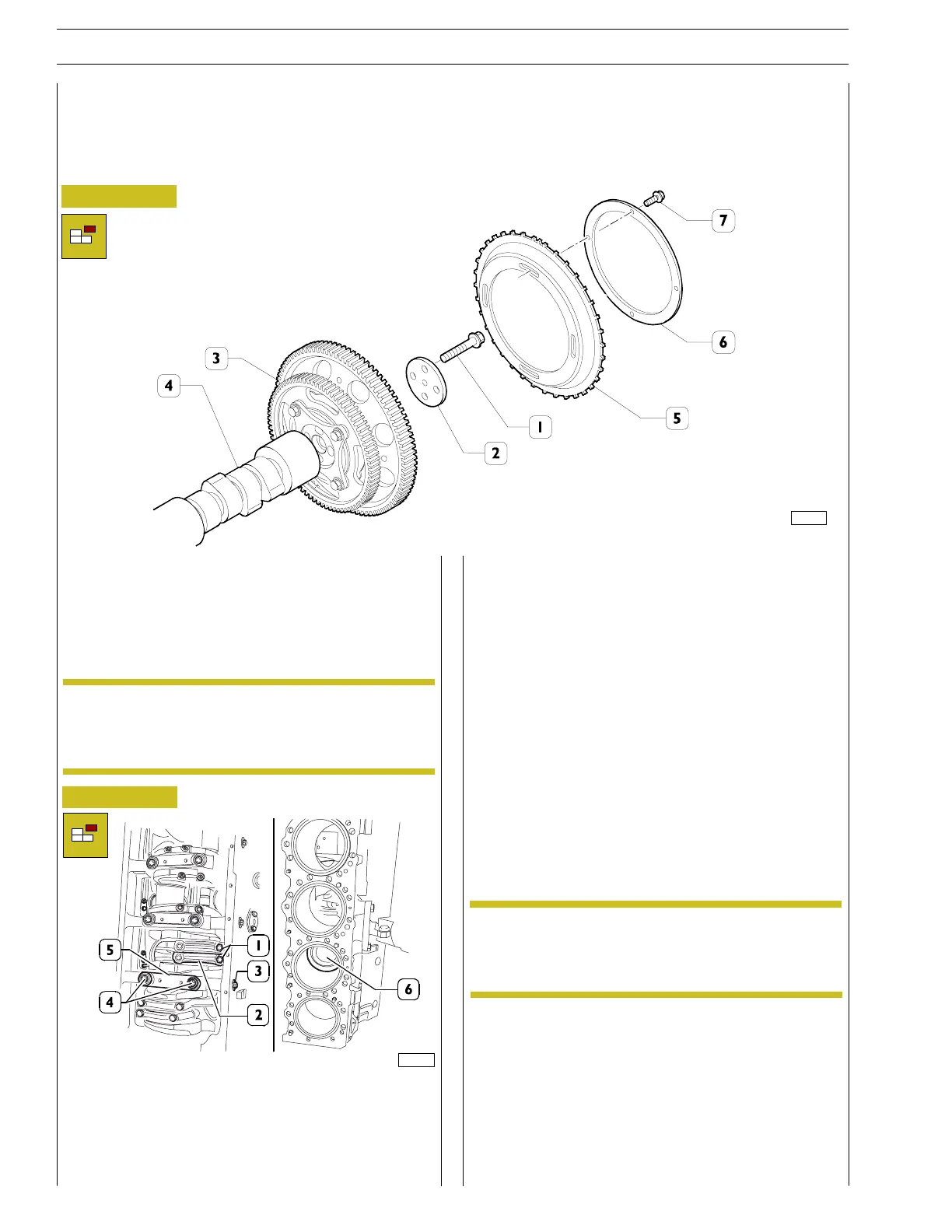

Figure 1
- Remove the gear fitted on the camshaft: unscrew the
screw (1) and remove the spacer (2); extract the gear (3)
from the camshaft.
During disassembly, the components (5) and (6) are
fastened by the screws (7) on the gear (3). If
necessary, separate the various parts and replace the
worn ones.
Figure 2
Check the protrusion of the pistons (6) from the crankcase
and note it down.
Set the cylinder assembly upright. Extract the pistons as
follows:
- Loosen the nuts (1) of the bolts fixing the connecting r od
caps to the connecting rods.
- Turn the c rankshaft until the piston i s exactly at the TDC;
in any other position it would not be possible to extract
the piston because the connecting would interfere with
the cylinder liner.
- Remove the connecting rod cap (2) and extract the
piston from the cylinder liner.
Set the crankcase horizontally. Remove the top (4) and side
(3) bol ts fixing the main bearing caps to the crankcase and ex-
tract them.
On the central main bearing housings (5) and on the
cap there are the thrust half—rings for adjusting the
crankshaft end float.
82230
ENGINE OVERHAUL
Dismantling the engine at the bench
The instructions below assume that the engine has been fitted on an overhaul stand and all the specific components for Iveco Motors
application components have been removed (see Section 3 of this manual).The section therefore includes all the most important
overhaul procedures for the engine block.
103196
NOTE
NOTE
10
SECTION 4 - OVERHAUL AND TECHNICAL SPECIFICATIONS
VECTOR 8 ENGINES
Base - April 2006 Print P2D32V001E
