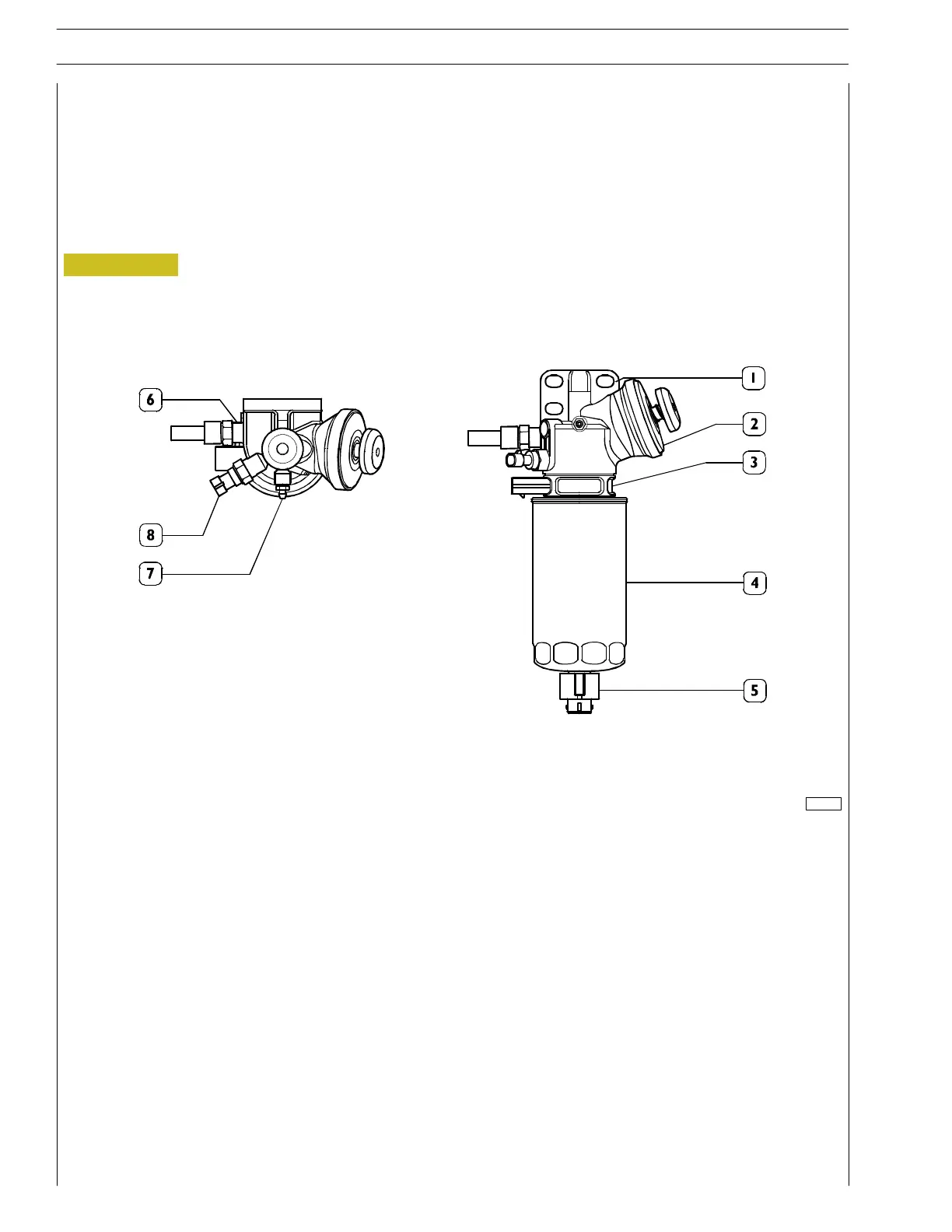

Figure 7
Fuel pre-filter for DRAGON and GRIFFON applications
The h igh water separation type fuel pre- filter has a sensor (5) at the base of the c artridge (4) that signals the presence of water
to be drained.
There is a manual priming pump (2) and an air breather jet (7) on the filter mounting (1).
There is a heater (3) on the mounting for heating the diesel, an intake with a rapid connector (6) for the return pipe from the
tank and a temperature sensor (8).
1. Filter mounting — 2. Manual priming pump and system bleed — 3. Heater —
4. Fuel pre-filter cartridge — 5. Water in fuel presence sensor — 6. Attachment with rapid pipe connector —
7. System breather jet — 8. Temperature sensor
89669
10
SECTION 2 - FUEL
VECTOR 8 ENGINES
Base - April 2006 Print P2D32V001E
