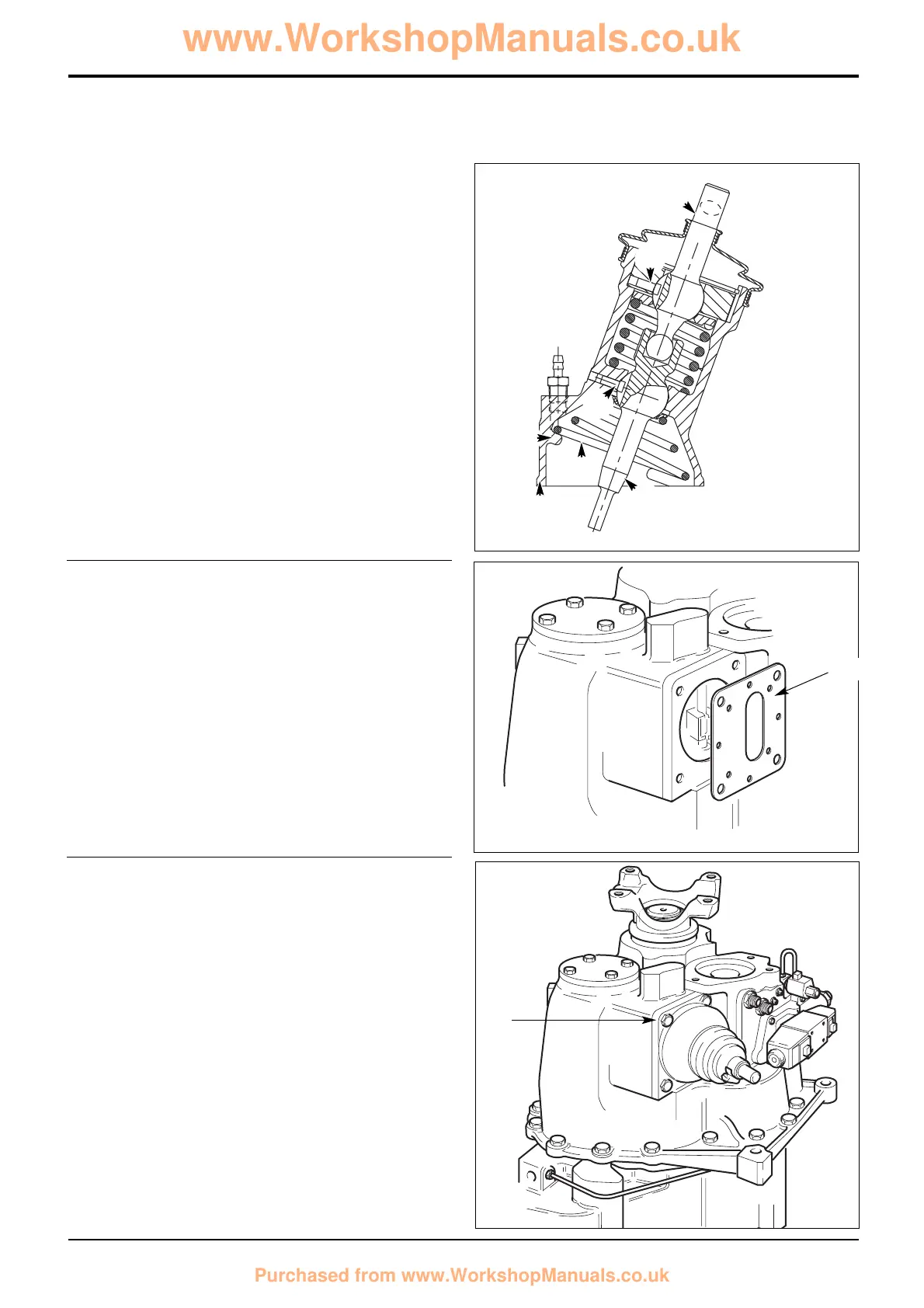

44 If the gear lever turret assembly has been dismantled,
apply grease liberally to the working surfaces before
assembling. Assembly is the reverse of the procedure
detailed in Gearbox - Dismantling, Step 1, but note the
following:
a Be sure to locate the slots in the levers A with the
pegs B in the housing E.
b After fitting spring C, rotate it so that the end of the
bottom coil butts with the the spigot D in the
housing E.
45 Locate a new gasket (not shown) on the casing followed
by the gear lever turret baffle plate. Make sure the plate
is the correct way round.
45
46
46 Locate a second gasket and then fit the turret
assembly.
Apply JCB Threadlocker and Sealer to mounting bolts
and tighten to 56 Nm (42 lbf ft). Check for gear
selection.
A
D
C
E
B
*
A
B
