Cab ROPS/FOPS Structure - Checks
!!
WARNING
The machine is fitted with a Roll Over Protection
Structure (ROPS) and a Falling Objects Protection
Structure (FOPS). You could be killed or seriously injured
if you operate the machine with a damaged or missing
ROPS/FOPS. If the ROPS/FOPS has been in an accident,
do not use the machine until the structure has been
renewed. Modifications and repairs that are not
approved by the manufacturer may be dangerous and
will invalidate the ROPS/FOPS certification.
INT-2-1-9/3
Failure to take these precautions could result in death or
injury to the operator.
1 Check the structure for damage.

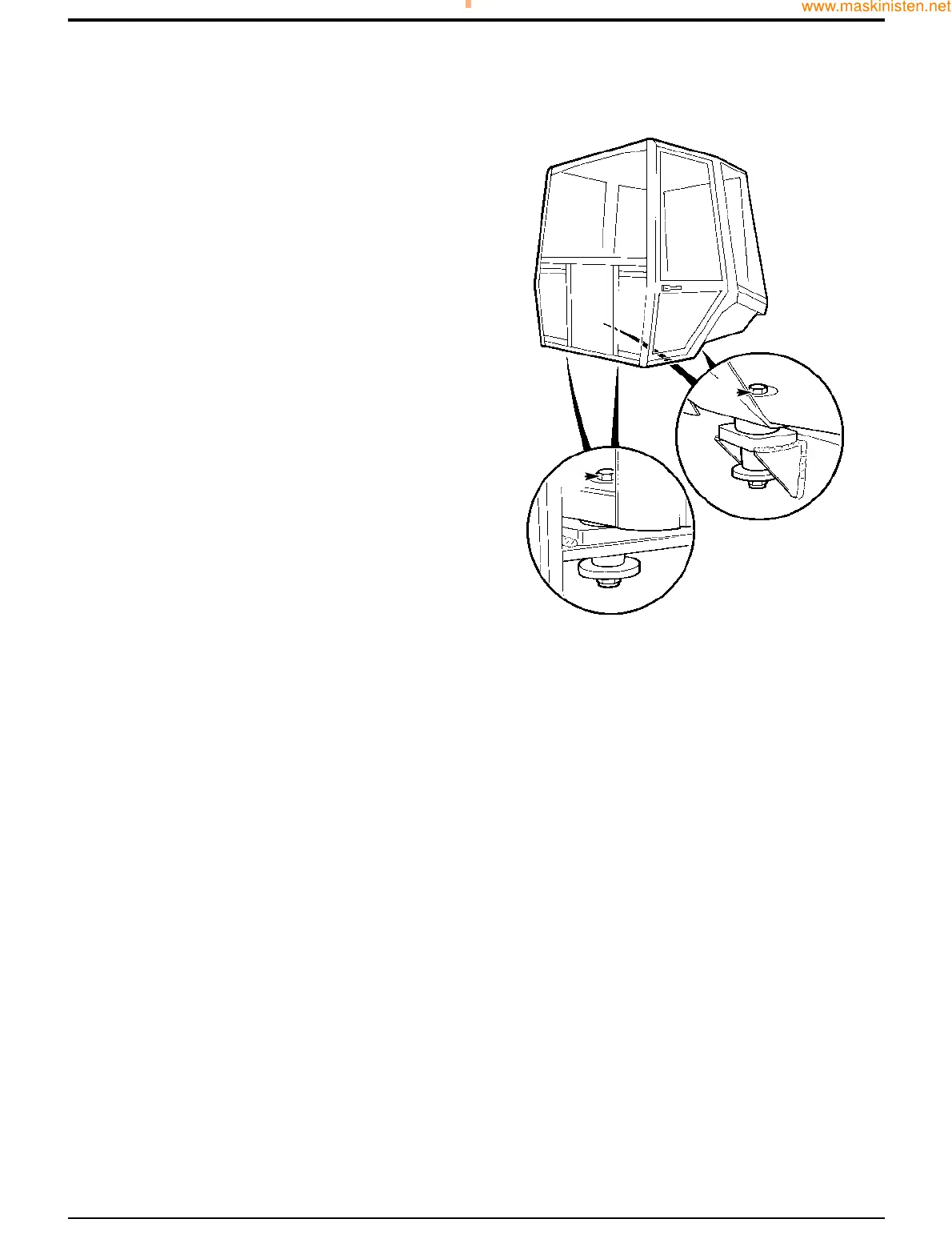

2 Check that the mounting bolts are installed and
undamaged. Check the bolt torques. Tighten them to
the correct torque if necessary. Torque-tighten bolts A
to 200Nm (147lbf ft; 20.5kgf m).
22 - 1
Section B Body & Framework
9803/7130
Section B
22 - 1
Issue 1
Service Procedures
S224070
AA
AA
