BB
50 - 2
Calliper Removal and Replacement
! WARNING
This is a safety critical installation. Do not attempt to do
this procedure unless you are skilled and competent to
do so.
Installation and mounting of the parking brake calliper
requires tightening of the mounting bolts to a specific
torque figure. Do not attempt to do this job unless you
have the correct tools available.
0010
! WARNING
Before working on the parking brake, park on level
ground and put chocks each side of all four wheels. Stop
the engine and disconnect the battery so that the engine
cannot be started. If you do not take these precautions
the machine could run over you.
BRAK 8-8
! WARNING
Brake pads generate dust which if inhaled, may
endanger health. Wash off the calliper before
commencing work. Clean hands thoroughly after work.
13-3-1-3

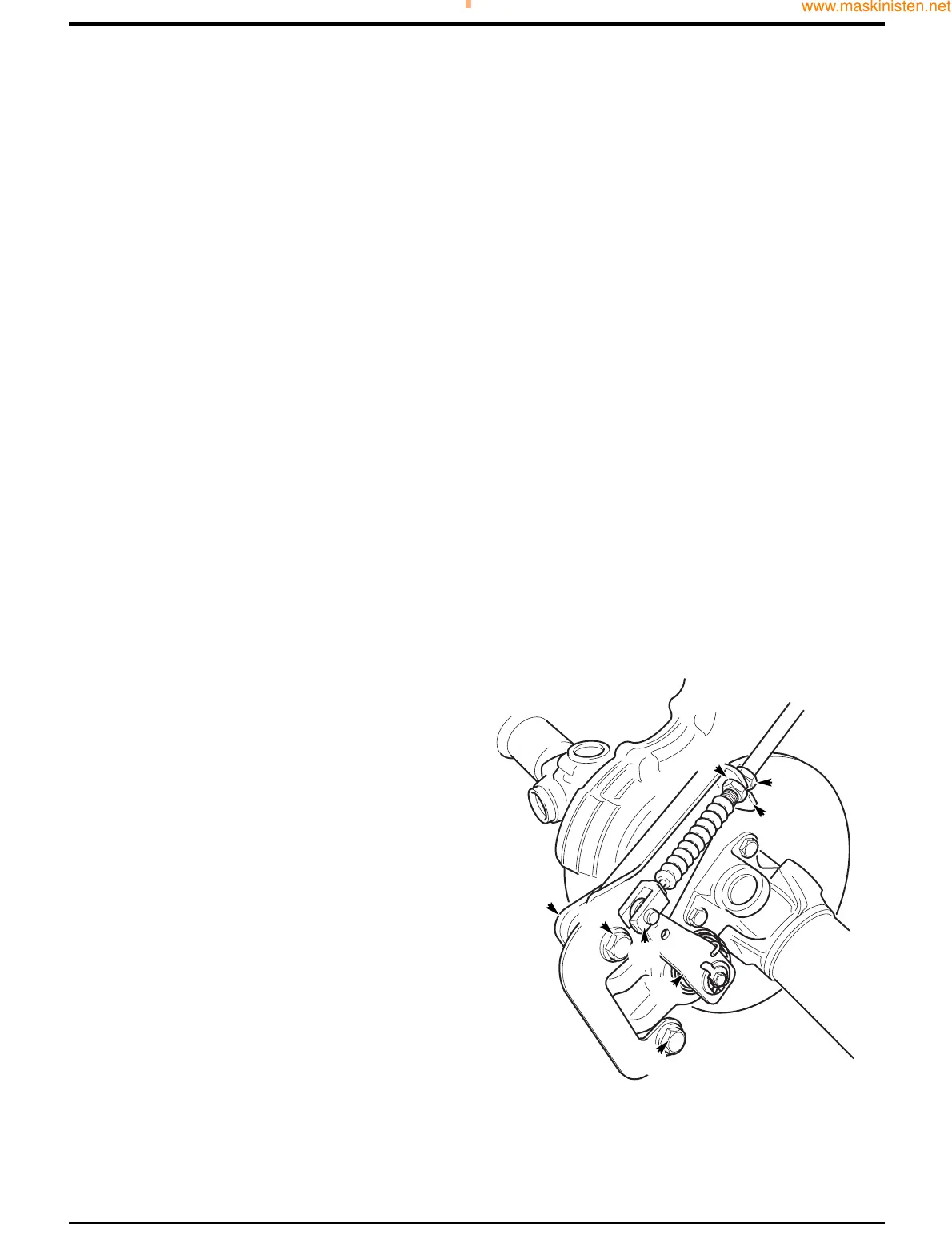

Removal
1 Release the parking brake lever (lever horizontal).
2 Disconnect clevis A, note which of the three holes on
the lever is used.
3 Undo locknuts B and disconnect the cable from the
bracket D.
4 Support the calliper and remove the two mounting bolts
and hardened washers C. Lift the calliper and bracket D
clear of the brake disc.
Note: Do not remove transmission mounting bracket F
unless it needs to be renewed.
Replacement
Replacement is the reverse of the removal sequence.
1 Locate the calliper on the brake disc and fit new
mounting bolts C with hardened washers, torque
tighten to 255 Nm (188 lbf ft).
2 Insert cable into bracket D, do not tighten locknuts B at
this stage as the brake will need adjusting.
3 Refit the clevis to the top hole in the operating lever E.
4 Make sure there is adequate freedom of movement of
operating lever E to ensure a positive brake application,
and that the lever returns to the rest position when the
parking brake is released.
5 Adjust the parking brake, see Service Procedures,
Parking Brake Adjustment. Never unscrew the
clevis A to adjust the cable.
Torque Settings
Item Nm lbf ft
C 255 188
Section G Brakes
9803/7130
Section G
50 - 2
Issue 1
Parking Brake
AA
FF
CC
CC
EE
DD
BB
