Checking the Oil Level
1 Prepare the Machine
Park the machine on level ground. Lower the backhoe
to the ground.
2 Stop the Engine
Remove the starter key
3 Raise the Bonnet
See Opening and Closing the Bonnet.
4 Check the Oil Level

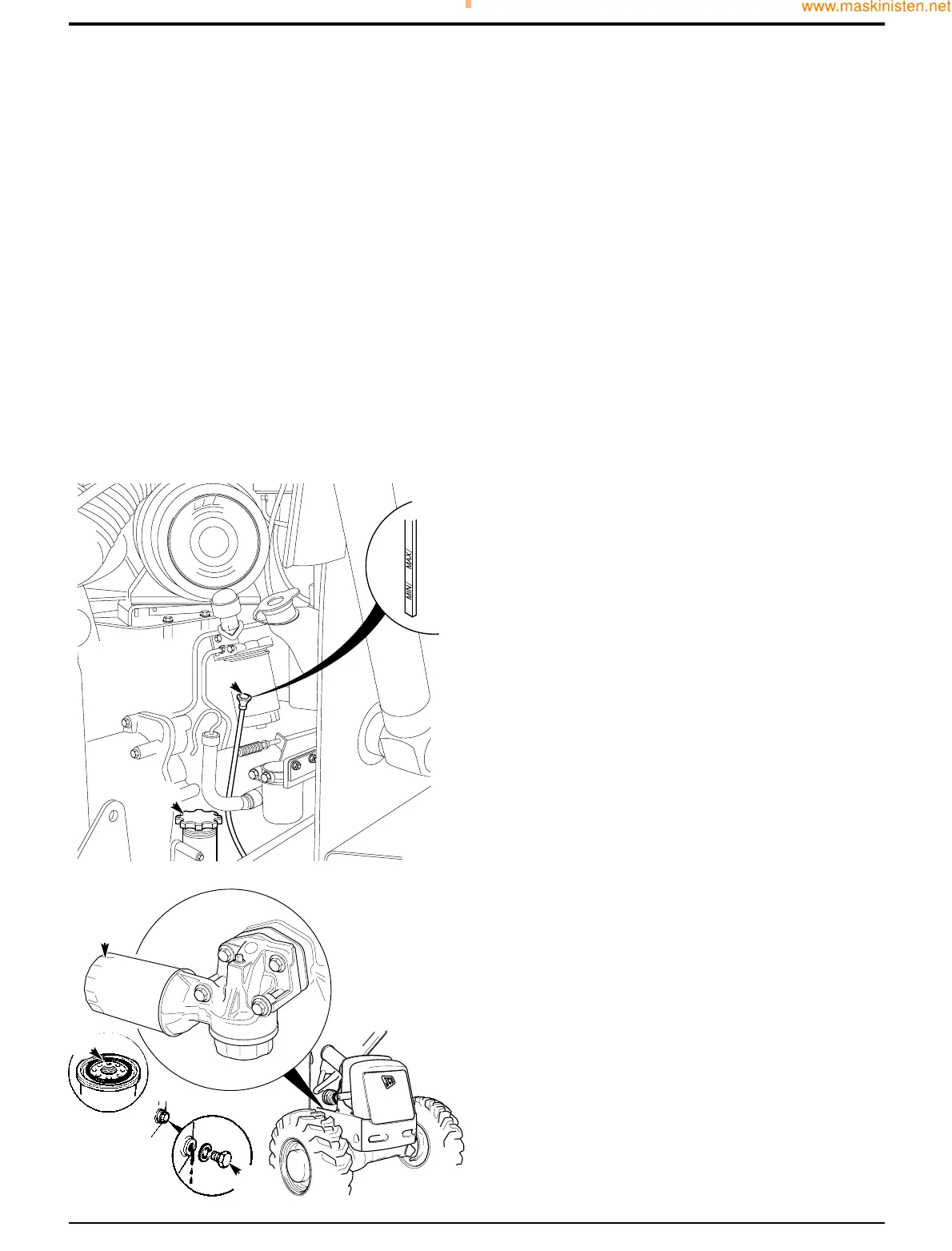

Check that the oil level is between the two marks on
the dipstick A. Add oil if necessary, through filler B. Use
only the recommended oil, see Fluids, Lubricants,
Capacities and Specifications. Make sure that the
dipstick and filler cap are fully inserted and tightened.
14 - 1
Changing the Oil and Filter
!!
WARNING
Hot oil and engine components can burn you. Make sure
the engine is cool before doing this job.
2-3-3-2
!!
WARNING
Oil is toxic. If you swallow any oil, do not induce
vomiting, seek medical advice. Used engine oil contains
harmful contaminants which can cause skin cancer. Do
not handle used engine oil more than necessary. Always
use barrier cream or wear gloves to prevent skin
contact. Wash skin contaminated with oil thoroughly in
warm soapy water. Do not use petrol, diesel fuel or
paraffin to clean your skin.
INT-3-2-3
1 Do Steps 1 to 3 of 'Checking the Oil Level'
2 Remove the Right Hand Side Panel
See Engine Panels.
3 Drain the Oil
a Place a container that can hold at least 12 litres (3
gal) beneath the engine (To catch the oil).
b Remove drain plug C and its 'O' ring. Let the oil
drain out, then clean and refit the drain plug with a
new 'O' ring. Tighten to 34 Nm (25 lbf ft).
4 Change the Filter
a Unscrew the filter canister D; remember that it will
be full of oil.
b Check that the filter head adapter is secure.
c Clean the filter head.
d Add clean engine lubricating oil to the new filter
canister. Allow enough time for the oil to pass
through the filter element.
e Smear the seal E on the new filter with oil. Screw in
the new filter canister - hand tight only.
5 Fill the System
Fill the engine to the max mark on the dipstick with
new oil through the filler. See Fluids, Lubricants,
Capacities and Specifications for recommended oil
grades. Wipe off any spilt oil. Check for leaks. Make
sure the filler cap is correctly refitted.
6 Obtain Oil Pressure
Make sure the engine will not start and turn the starter
switch to operate the starter motor until the oil pressure
light is extinguished. (To make sure the engine will not
start, remove the engine shut-off solenoid fuse housed
in the fuse box).
7 Check for Leaks
Start the engine and check for leaks. When the engine
has cooled, check the oil level.
Section 3 Routine Maintenance
9803/7130
Section 3
14 - 1
Issue 1
Engine Oil and Filter
391800
BB
AA
DD
391750
EE
CC
