Flow Diverter Valve
Dismantling and Assembly

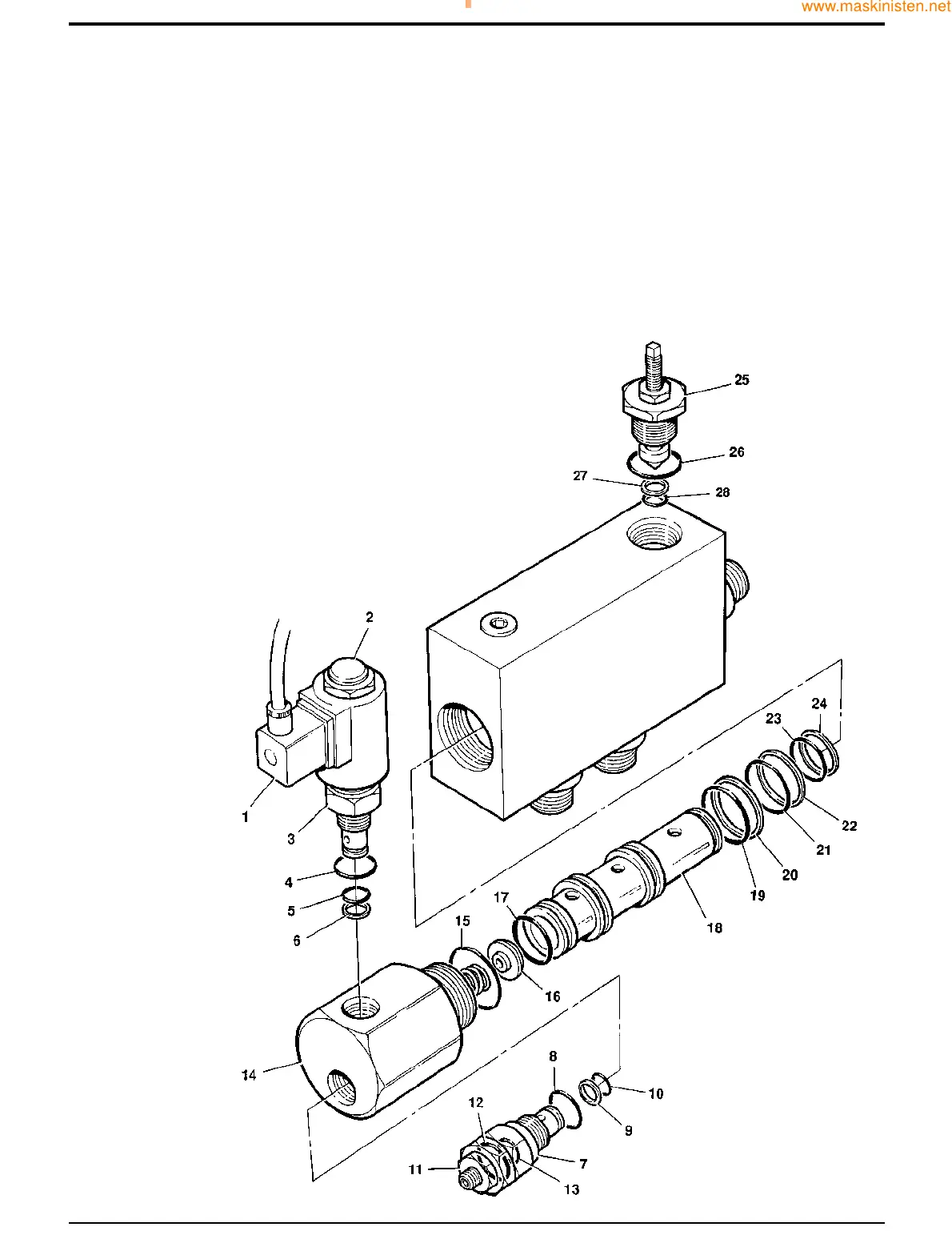

The numerical sequence shown on the illustration is
intended as a guide to dismantling.
For assembly the sequence should be reversed.
When Assembling
Renew all seals and 'O' rings. Lubricate with JCB Special
Hydraulic Fluid.
Torque Settings
Item Nm kgf m lbf ft
2 5 0.5 3.7
3 45 4.6 33
7 60 6.1 44
14 200 20.4 148
25 100 10.2 74
After assembly make sure that the valve is set for the correct
flow and pressure, refer to page A/2-5 and A/2-6.
