30 - 1
Removal
!!
WARNING
Make the machine safe before getting beneath it. Lower
the attachments to the ground; engage the parking
brake; remove the starter key, disconnect the battery.
2-3-2-2
Carry out the geneal safety procedures detailed in Section 3
Machine Safety.

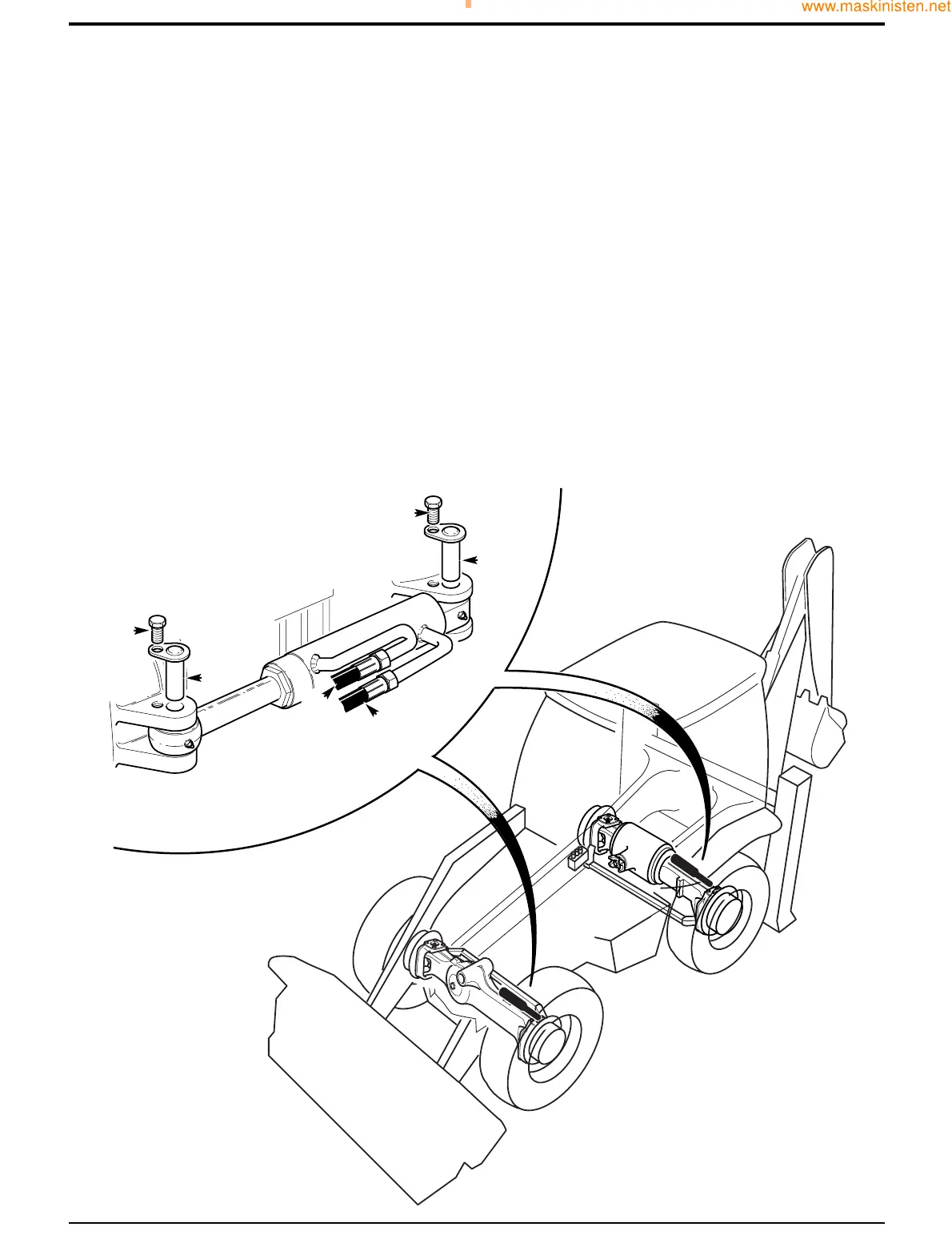

The following procedure applies to the steer rams on the
front and rear axles:
1 Disconnect the two hoses A, making a note of the ram
connections they came from. Blank the hoses and plug
the ram ports to prevent ingress of dirt.
2 Remove screws B and pins C at each end of the ram
and lift the ram clear.
Replacement
Replacement is the reverse of removal.
Torque Settings
Item Nm kgf m lbf ft
B 56 5.7 41
Dismantling and Assembly
Refer to Section E Hydraulic Rams, Typical Ram,
Dismantling and Assembly.
Section H Steering
9803/7130
Section H
30 - 1
Issue 1
Steer Rams
