26 - 1
Section 3 Routine Maintenance
9803/7130
Section 3
26 - 1
Issue 1
Align Road Wheels
!!
WARNING
At the start of each working period, and at least once a
day, or if having difficulty in steering, check and, if
necessary, re-align the road wheels.
2-1-1-10
1 Start the Engine
2 Turn the Steering Wheel to Full Right Lock
3 Stop the Engine
Remove the starter key.
4 Move the Setting Lever to SET Position
!!
WARNING
The engine has exposed rotating parts. Switch OFF the
engine before working in the engine compartment. Do
not use the machine with the engine cover open.
5-2-6-5
a Open the bonnet.

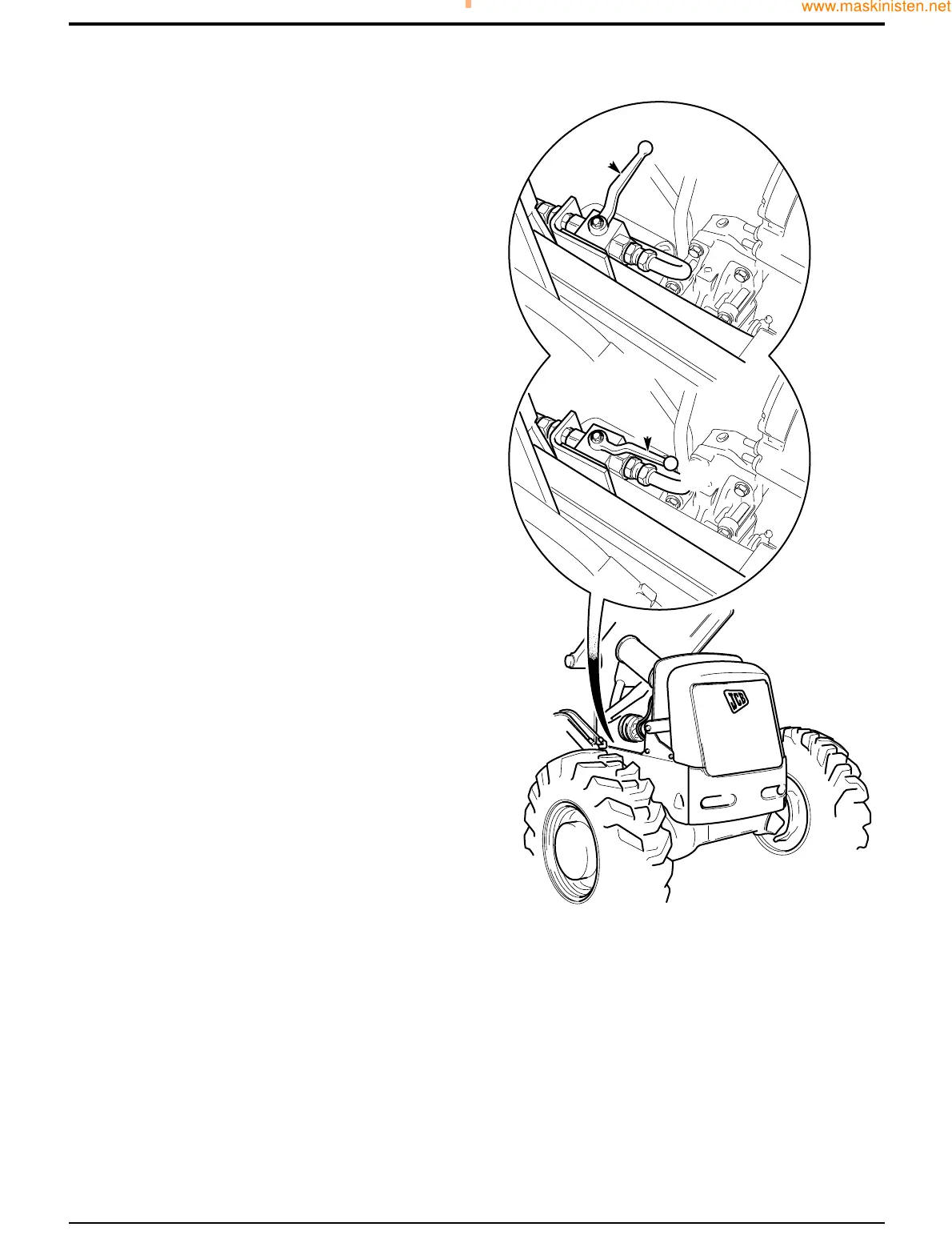

b Move the setting lever A to the SET position S as
shown.
5 Start the Engine
6 Continue to Turn the Steering Wheel to Full Right
Lock until Full/Maximum Travel is Obtained
7 Stop the Engine.
Remove the starter key.
8 Move the Setting Lever to LOCK Position
a Move the setting lever A to the LOCK position L as
shown.
b Close the bonnet.
9 Repeat Steps 1 to 8, if necessary.
!!
DANGER
The steering setting lever must be in the FULLY LOCK
position before driving the machine, failure to do so will
result in a loss of steering. The setting lever must not be
removed or modified.
5-2-6-6
