jcb 4CX Service Manual

4 - 5
Section 1 General Information
9803/3280
Section 1
4 - 5
Issue 1
Service Tools (cont'd)
Section C - Electrics

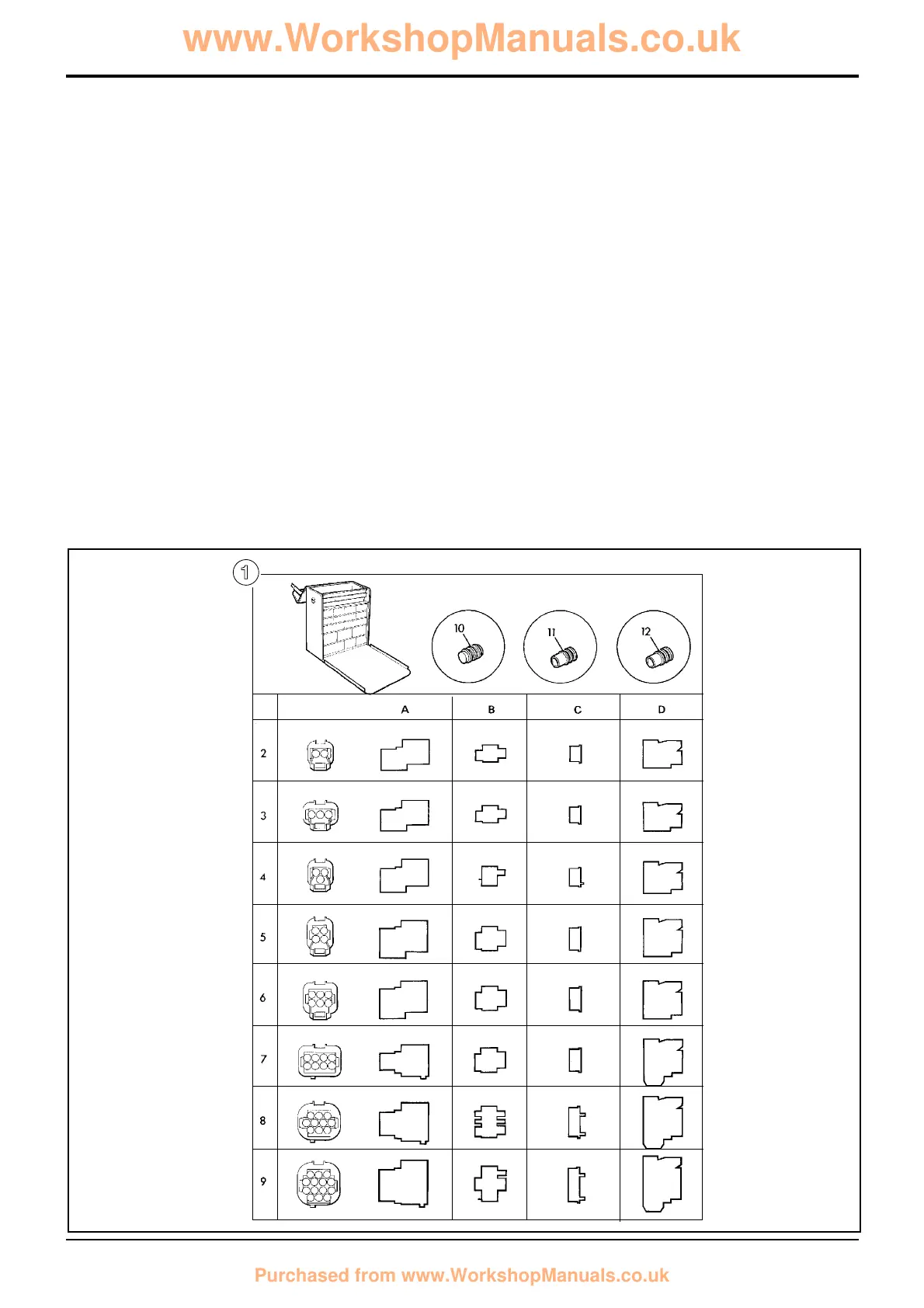

1 Electrical Repair Kit
2A :7212/0002 2 Way Pin Housing
2B :7212/0004 2 Way Pin Retainer
2C :7212/0003 2 Way Socket Retainer
2D :7212/0001 2 Way Socket Connector
3A :7213/0002 3 Way Pin Housing
3B :7213/0004 3 Way Pin Retainer
3C :7213/0003 3 Way Socket Retainer
3D :7213/0001 3 Way Socket Connector
4A :7213/0006 3 Way Pin Housing (DT)
4B :7213/0008 3 Way Pin Retainer (DT)
4C :7213/0007 3 Way Socket Retainer (DT)
4D :7213/0005 3 Way Socket Connector (DT)
5A :7214/0002 4 Way Pin Housing
5B :7214/0004 4 Way Pin Retainer
5C :7214/0003 4 Way Socket Retainer
5D :7214/0001 4 Way Socket Connector
6A :7216/0002 6 Way Pin Housing
6B :7216/0004 6 Way Pin Retainer
6C :7216/0003 6 Way Socket Retainer
6D :7216/0001 6 Way Socket Connector
7A :7218/0002 8 Way Pin Housing
7B :7218/0004 8 Way Pin Retainer
7C :7218/0003 8 Way Socket Retainer
7D :7218/0001 8 Way Socket Connector
8A :7219/0002 10 Way Pin Housing
8B :7219/0004 10 Way Pin Retainer
8C :7219/0003 10 Way Socket Retainer
8D :7219/0001 10 Way Socket Connector
9A :7219/0006 14 Way Pin Housing
9B :7219/0008 14 Way Pin Retainer
9C :7219/0007 14 Way Socket Retainer
9D :7219/0005 14 Way Socket Connector
10 :7210/0001 Dummy Plug
11 :7210/0002 Wire Seal (1.4 - 2.2 mm dia.)
12 :7210/0003 Wire Seal (2.2 - 2.9 mm dia.)
S188380
1
