Electrics
Harness Data
Section C
Section C
9803/3280
Issue 2*
151 - 1
151 - 1
721/10940_1
Key to Connectors:
FA
Bulkhead Plug
FB
Front Cab Earth
FC
Steer Mode Unit
FD
Forward Relay
Forward H.L
FE
Reverse Relay
Reverse H/L
FF
Drive Relay
Interlock Relay
FG
Transmission Dump
Blank
FH
4WS
Auto 2WD
FJ
Link
FK
Diodes
FL
Column Switch - Powershift
FM
Footbrake Switch
FN
Wiper Motor
FP
Column Switch - RH
FR
Front Warning Lights
FS
Speedometer
FSA
Speedometer Illumination
FSB
Speedometer Illumination
FT
Steer Mode Switch
FU
Brake Mode Switch
FV
Hazard switch
FW
Main Lights
FX
2/4WD Select
FY
Fog Light Switch
FZ
Brake Link Socket
GA
Brake Link Pin

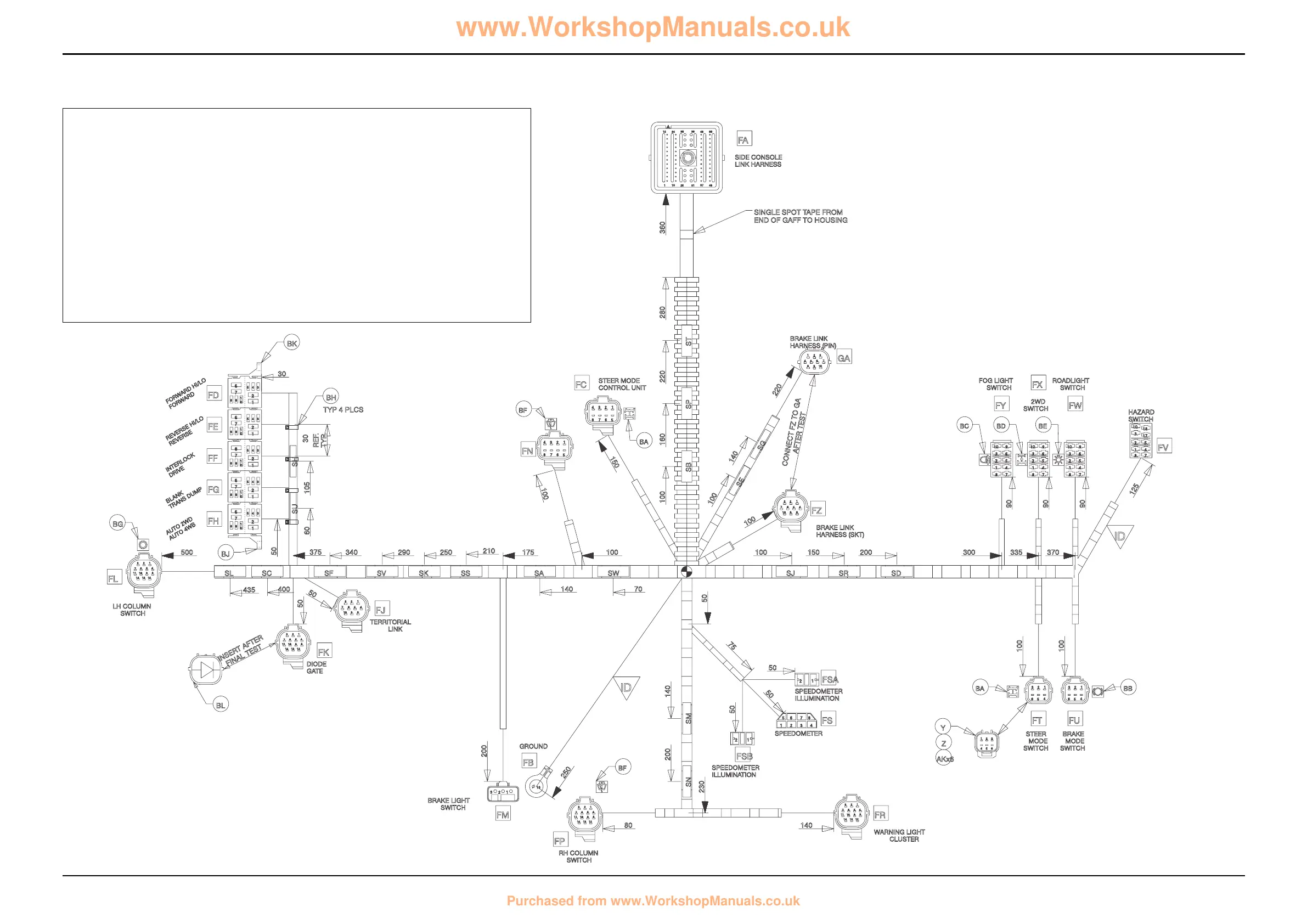

Harness Drawing - Front Console, 4 speed Powershift, Synchro Shuttle, page 1 of 2 - CAD 721/10940 Issue 1
