86 - 1
Bed in bearings 6 and 8 by rotating hub in each direction
whilst tightening nut 3. When correct torque setting has
been achieved, back off one flat and fit split pin 2.
Torque Settings
Item Nm kgf m lbf ft
3 40† 4.0† 30†
9 30 3.0 21
† Back off one flat before fitting split pin.
Section F Transmission
9803/3280
Section F
86 - 1
Issue 1
Front Axle
Dismantling and Assembly
(2 Wheel Drive Machines)
When Dismantling

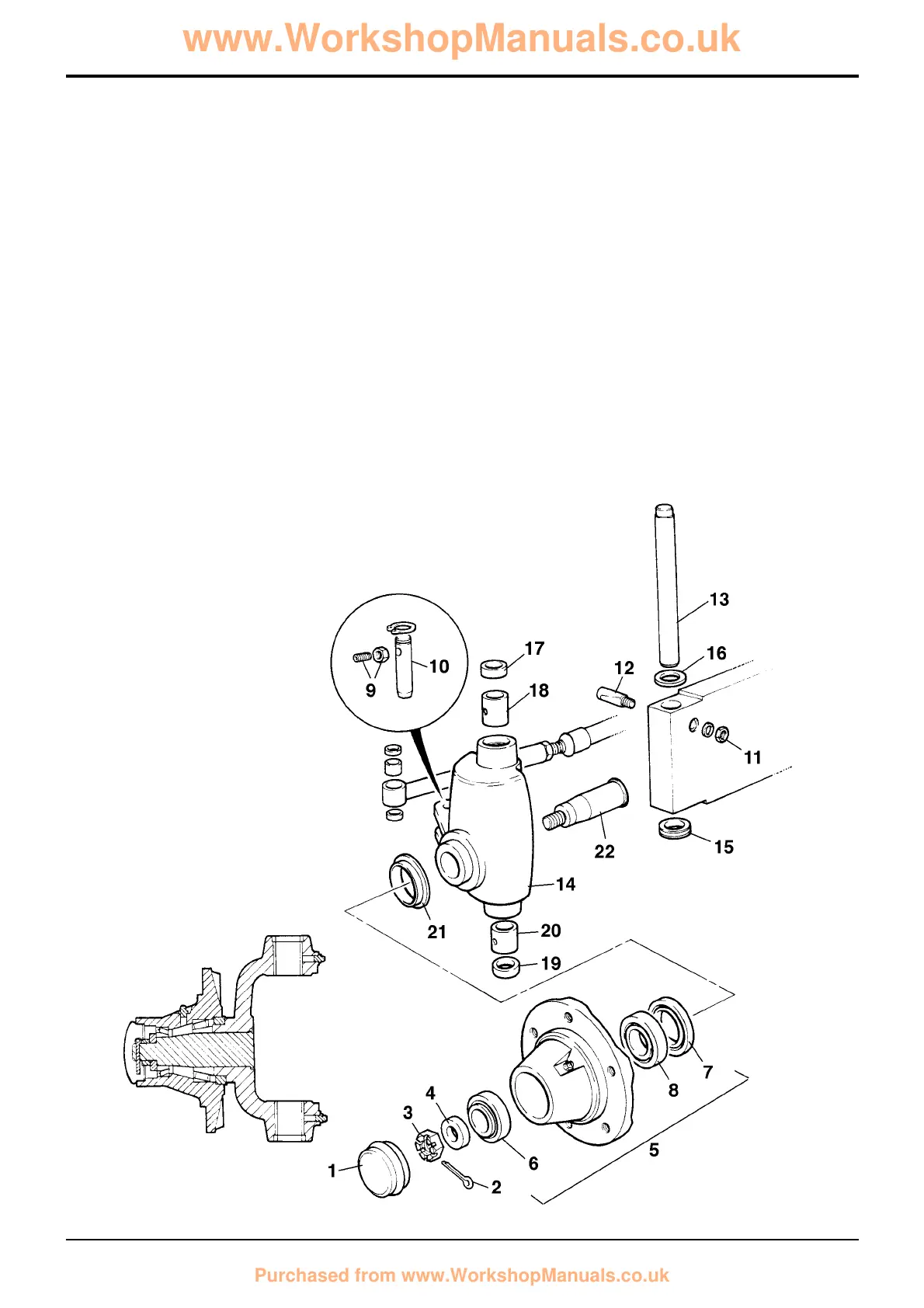

The numerical sequence shown on the illustration is
intended as a guide to dismantling.
For assembly the sequence should be reversed.
A suitable press will be required to remove and replace stub
axle 22.
When Assembling
Fit bushes 18 and 20 with open ends of grease grooves
facing the axle beam.
Add shims 16 as required to give zero to 0.1mm (0.004in)
clearance between axle beam and bearing 15.
Apply JCB Lock and Seal to threads of bolt 9.
Pack JCB Special MPL Grease into hubs 5 and between lips
of seals 7.
