SRX220 Services Gateway LEDs
This topic includes the following sections:
•
Front Panel LEDs on page 16
•
Ethernet Port LEDs on page 17
Front Panel LEDs
Figure 3 on page 16 shows the SRX220 Services Gateway front panel LEDs.
Table 10 on page 16 lists the LED indicators on the SRX220 Services Gateway front panel.

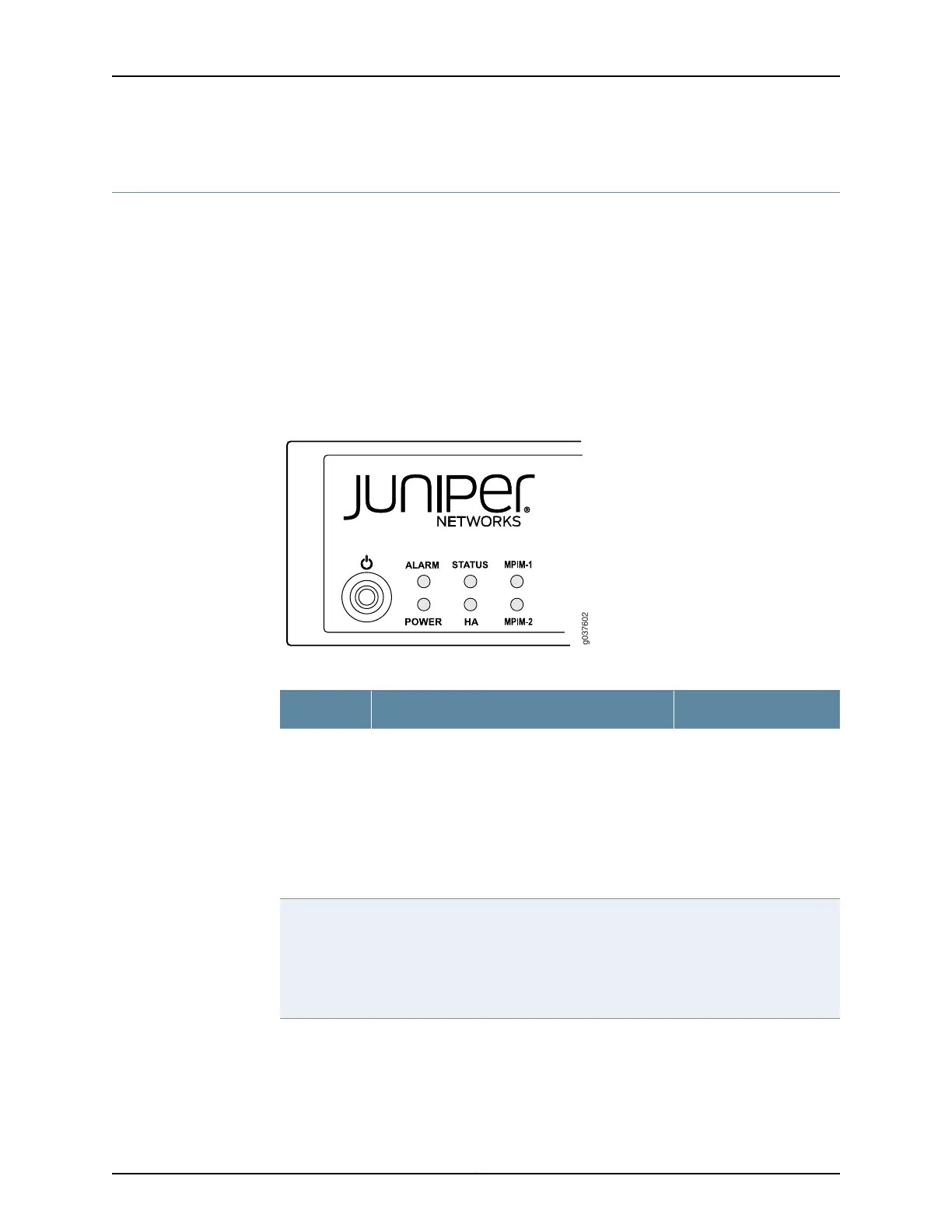

Figure 3: SRX220 Services Gateway Front Panel LEDs
Table 10: SRX220 Services Gateway Front Panel Component LEDs
UsageDescriptionComponent
The Alarm LED shows
major or minor alarms and
whether the device is
functioning normally.
The Alarm LED has the following indicator colors:
•
Red indicates a major alarm.
•
Amber indicates a minor alarm.
•
Off indicates that the device is starting up.
NOTE: When the system is up and running, if the
Alarm LED is off, it indicates that no alarms are
present on the device.
Alarm LED
The Status LED shows
whether the device is
starting up, is functioning
normally, or has failed.
The Status LED has the following indicator colors:
•
Green indicates that the device is functioning
normally.
•
Amber indicates that the device is starting up.
•
Red indicates that the device has failed.
Status LED
Copyright © 2016, Juniper Networks, Inc.16
SRX220 Services Gateway Hardware Guide for H Model Numbers
