Juniper SRX220 Hardware Guide

CHAPTER 8
Cable Specifications and Pinouts
•
Interface Cable and Wire Specifications for the SRX220 Services Gateway on page 39
•
RJ-45 Connector Pinouts for the SRX220 Services Gateway Ethernet Port on page 39
•
RJ-45 Connector Pinouts for the SRX220 Services Gateway Console Port on page 40
Interface Cable and Wire Specifications for the SRX220 Services Gateway
Table 19 on page 39 lists the specifications for the cables that connect to ports.
Table 19: Cable and Wire Specifications for Ports
Device
Receptacle
Maximum
LengthCable/Wire RequiredCable SpecificationPort
RJ-456 ft (1.83 m)One 6-ft (1.83-m) length
with DB-9/RJ-45
connectors
RS-232 (EIA-232) serial
cable
Console
port
RJ-45328 ft
(100 m)
One 15-ft (4.57-m)
length with RJ-45/RJ-45
connectors
CAT-5e (Category 5)
cable or equivalent
suitable for 100BASE-T
operation
Ethernet
port
Related
Documentation
RJ-45 Connector Pinouts for the SRX220 Services Gateway Ethernet Port on page 39•
• RJ-45 Connector Pinouts for the SRX220 Services Gateway Console Port on page 40
RJ-45 Connector Pinouts for the SRX220 Services Gateway Ethernet Port
Figure 8 on page 39 shows the RJ-45 cable connector pinouts for Ethernet ports.

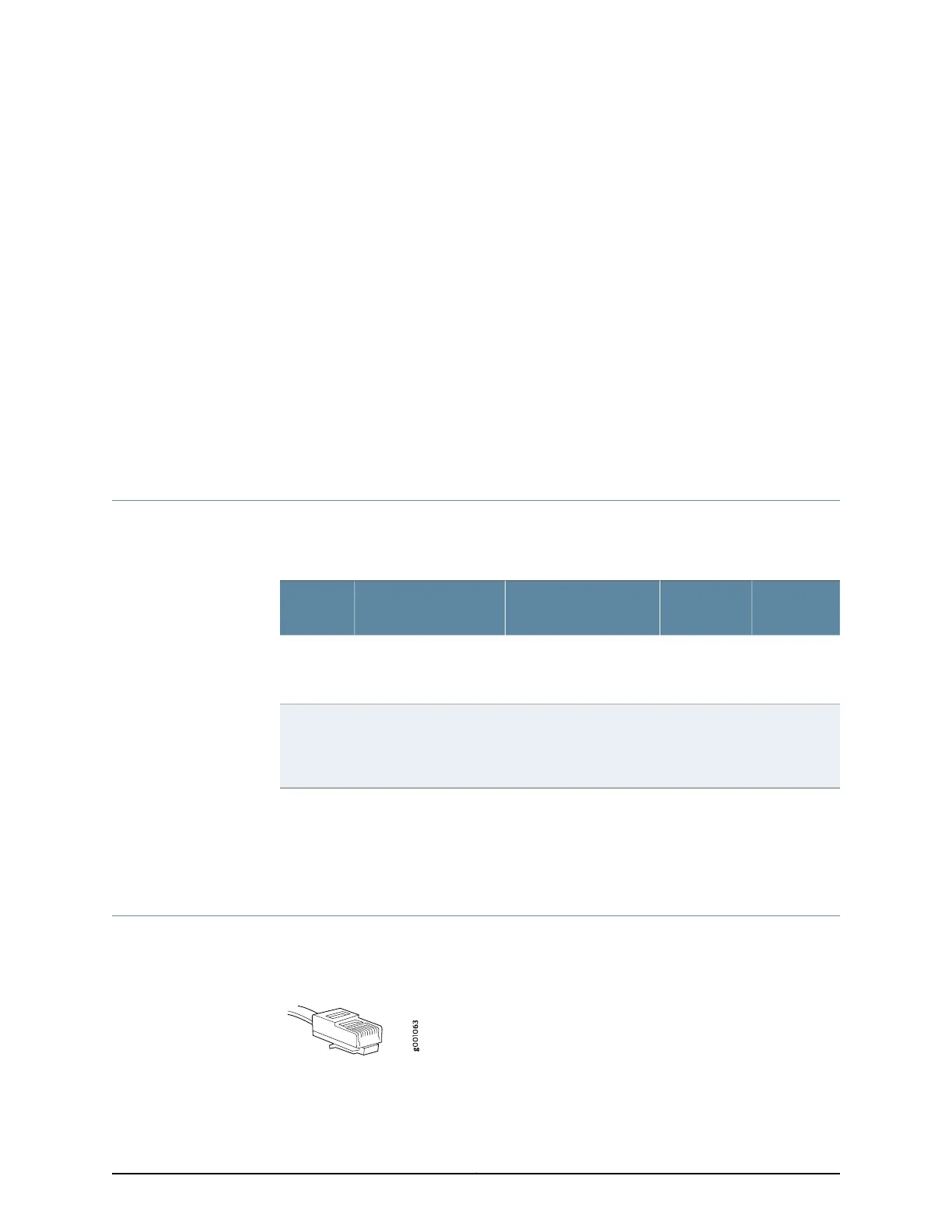

Figure 8: Ethernet Cable Connector (RJ-45)
Table 20 on page 40 describes the RJ-45 connector pinouts for the 1-Gbps (1000-Mbps)
Ethernet port.
39Copyright © 2016, Juniper Networks, Inc.
