Juniper SRX320 Hardware Guide

6. Have a second person install two pairs of mounting screws through the bracket holes
on either side of the device to secure it to the wall. Figure 12 on page 58 shows the two
different orientations in which you can mount the services gateway on a wall.

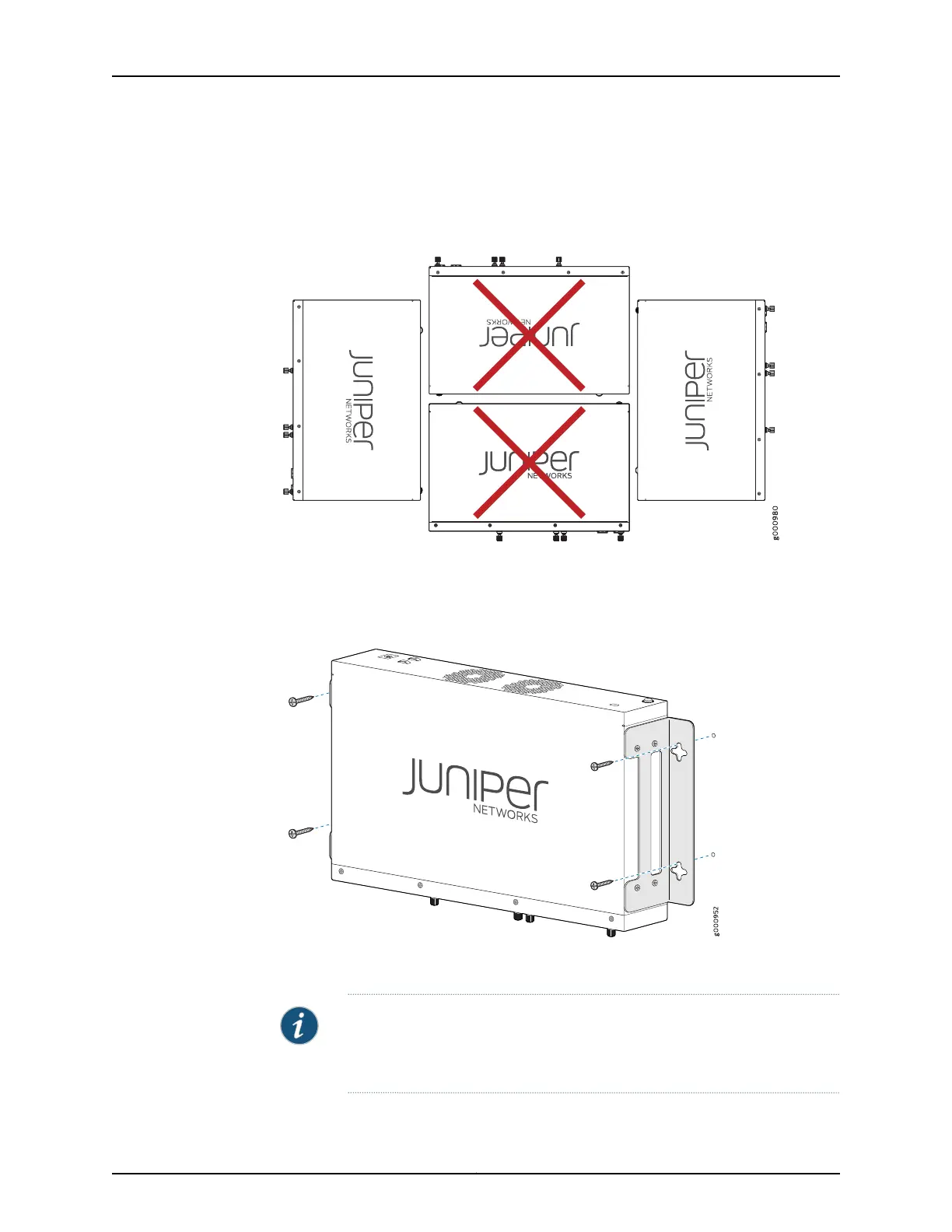

Figure 12: Orienting the SRX320 Services Gateway on a Wall
7. Verify that the mounting screws on one side are aligned with the mounting screws on
the opposite side and that the device is level (see Figure 13 on page 58).
Figure 13: Mounting the SRX320 Services Gateway on a Wall
NOTE: For information on installing Mini-Physical Interface Modules
(Mini-PIMs), see the SRX300 Series and SRX550 High Memory Services
Gateway Interface Modules Reference.
Copyright © 2016, Juniper Networks, Inc.58
SRX320 Services Gateway Hardware Guide

Juniper SRX320 Specifications

General

Firewall throughput	1000 Mbit/s
Number of users	50 user(s)
Quality of Service (QoS) support	Yes
Mobile VPN IPSec	250
IPS/IDS throughput	100 Mbit/s
USB 2.0 ports quantity	1
Connectivity technology	Wired
SFP module slots quantity	2
Ethernet LAN (RJ-45) ports	6
Internal memory	4000 MB
Flash memory	8000 MB
Storage media type	Flash
Power consumption (typical)	27 W
Heat dissipation	157 BTU/h
Concurrent connections	64000
Mean time between failures (MTBF)	284700 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Routing protocols	BGP, CLNS, IS-IS, OSPF, RIP-1, RIP-2

Weight and Dimensions

Weight	1510 g
Dimensions (WxDxH)	299.9 x 43.9 x 191 mm
