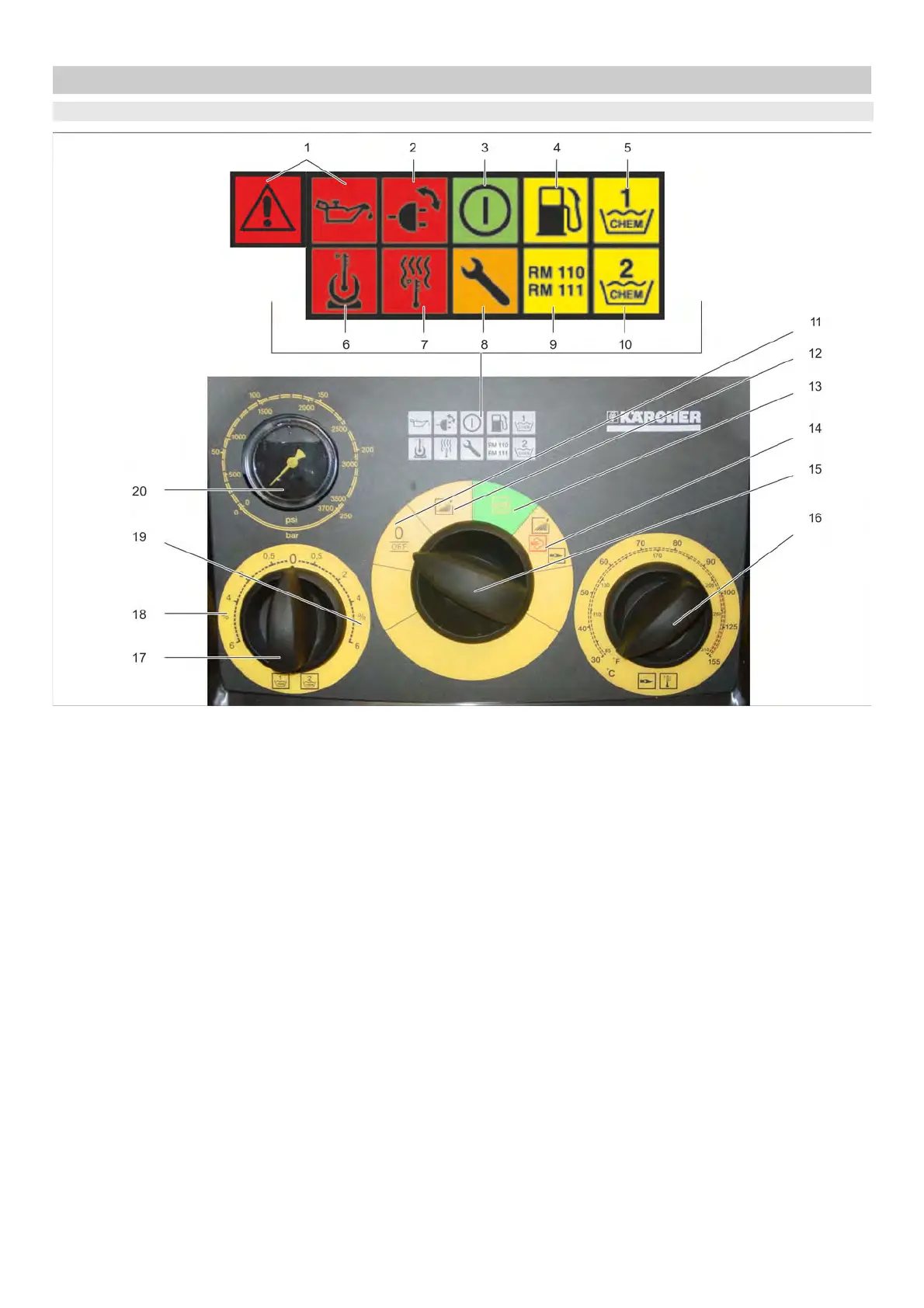

1 Control LED 0, pump (red)
Note
Symbol depending on unit model.
2 Control LED 1, rotation direction (red)
3 Control LED 2, operation (green)
4 Control LED 3, fuel (yellow)
5 Control LED 4, detergent tank 1 (yellow)
6 Control LED 5, motor (red)
7 Control LED 6, burner (red)
8 Control LED 7, service (orange)
9 Control LED 8, liquid softener (yellow)
10 Control LED 9, detergent tank 2 (yellow)
11 Programme switch position "Off"
12 Programme switch position "Cold water operation"
13 Programme switch position "ECO mode"
14 Programme switch position "Hot water / steam opera-
tion"
15 Programme switch
16 Setting, water temperature
17 Dosage valve for detergent
18 Dosing range detergent tank 1
19 Dosing range detergent tank 2
20 Manometer
Note
In the "ECO mode“ the water temperature is maintained at
60? (+/- 9 K). Set water temperatures < 60°C are effective,
<60 ? remain ineffective.
