English 5.906-432.0 Rev. 00 (06/15) 49

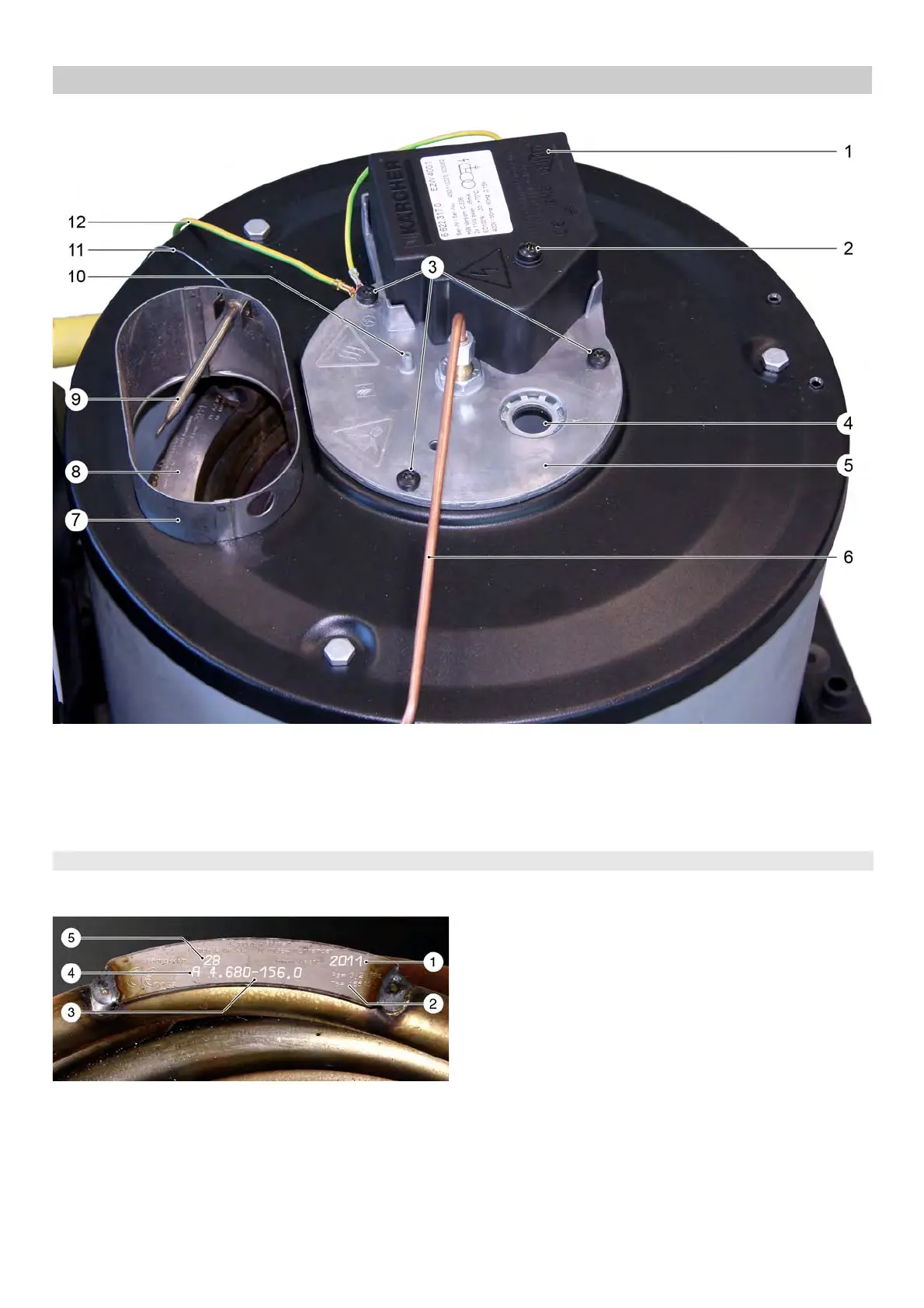

1 Electronic ignition transformer
2 Fastening screw of ignition transformer
3 Screws for burner cover (3 x)
4 Sight glass, ignition monitoring (option)
5 Burner cover
6 Fuel line
7 Exhaust nozzle, on-demand heater
8 Type plate of heating coil
9 Exhaust temperature sensor
10 Connection for air pressure measurement
11 Capillary exhaust temperature monitor
12 Protective conductor
The type plate of the heating coil can be read through the
exhaust stack.
1 Year of manufacture
2 Specifications
3 Part number of heating coil
4 Pressure test passed
5 Continuous plant number
6.22 Booster heater (with ignition transformer new)
6.22.1 Type plate of heating coil
