Kärcher HDS 8/18 M Service Manual

38 English 5.906-432.0 Rev. 00 (06/15)

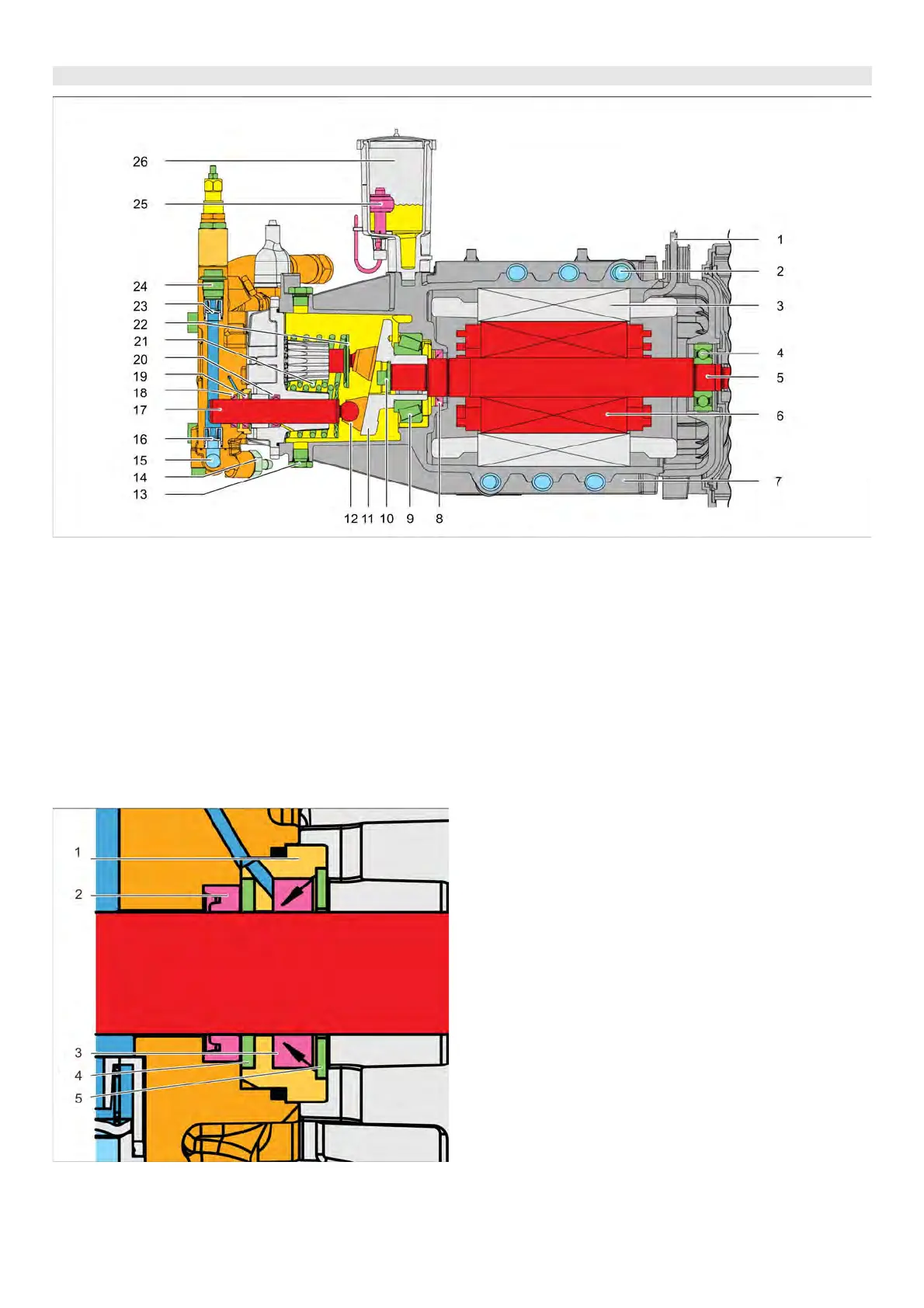

1 Connecting cable, motor
2 Cooling coil
3 Stator
4 Motor bearing, rear (B bearing)
5 Motor shaft
6 Rotor
7Casing
8 Shaft seal ring
9 Motor bearing, front (A bearing)
10 Screw
11 Swash plate
12 Slide shoe
13 Oil drain screw
14 Detergent suck in
15 Suction side
16 Suction valve (green with HDS 13/20)
17 Piston
18 High pressure seal
19 Low pressure seal
20 Oil seal
21 Piston spring
22 Retaining plate for piston spring
23 Pressure valve
24 Valve screw
25 Oil level sensor
26 Oil fill container
1 Bushing
2 High pressure seal
3 Low pressure seal
4 Washer, plastic
5 Washer, brass
6.16.1 Engine (water-cooled)
