English 5.906-432.0 Rev. 00 (06/15) 17

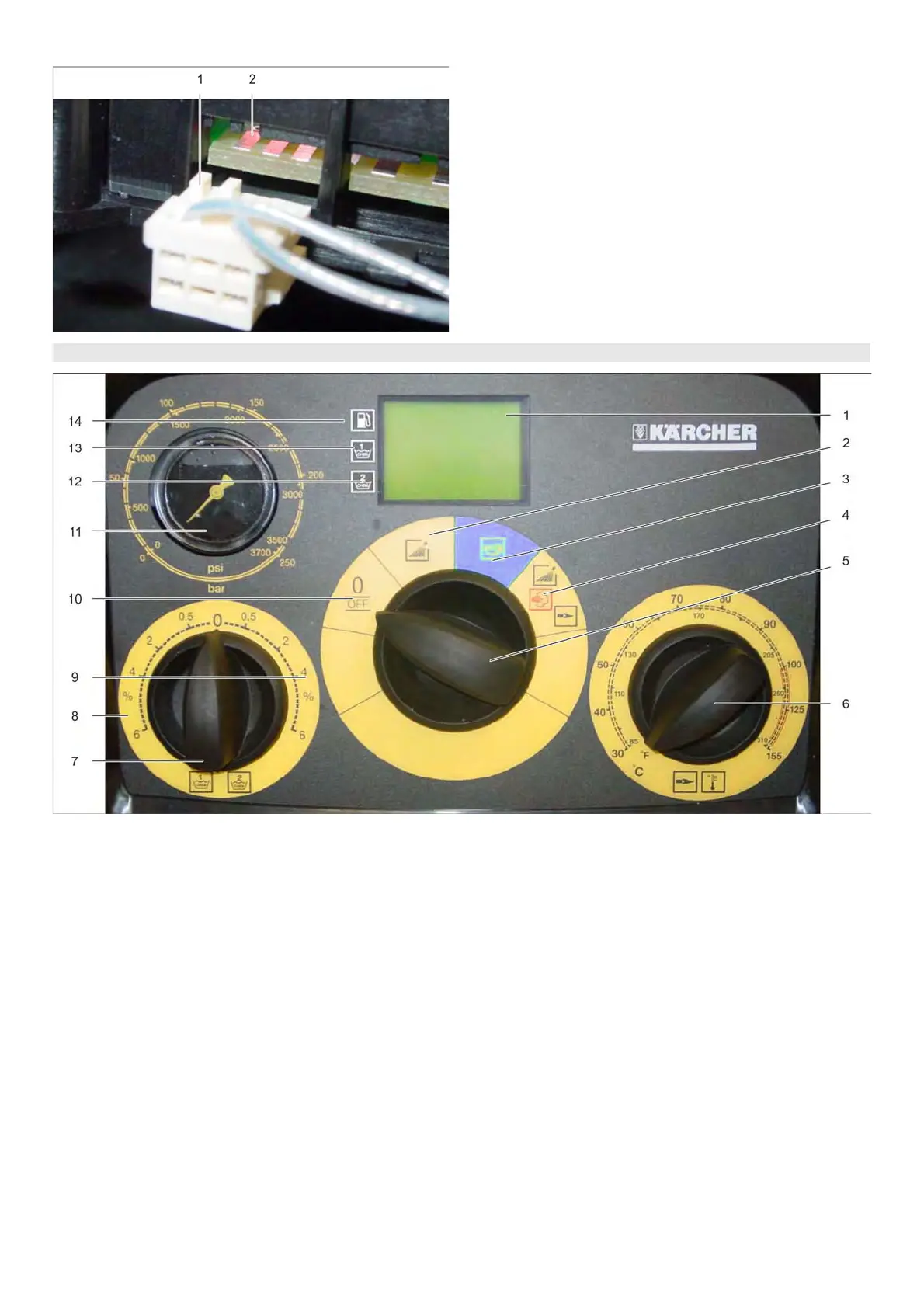

1 Encoding pin
2 Recess for encoding pin
Plug coding
The plugs for the PCB connections are designed with en-
coding pins and their matching recesses in the PCB base
so that only the matching plug can be attached to the re-
spective connection.
1 Display
2 Programme switch position "Cold water operation"
3 Programme switch position "ECO mode*"
4 Programme switch position "Hot water / steam opera-
tion"
5 Programme switch
6 Setting, water temperature
7 Dosage valve for detergent
8 Dosing range detergent tank 1
9 Dosing range detergent tank 2
10 Programme switch position "Off"
11 Manometer
12 Filling level detergent tank 2
13 Filling level detergent tank 1
14 Filling level fuel
Note
In the "ECO mode“ the water temperature is maintained at
60? (+/- 9). Set water temperatures < 60°C are effective,
settings <60? remain without any effect.
5.4.5 Control panel with display indication (HDS 13/20 only)
