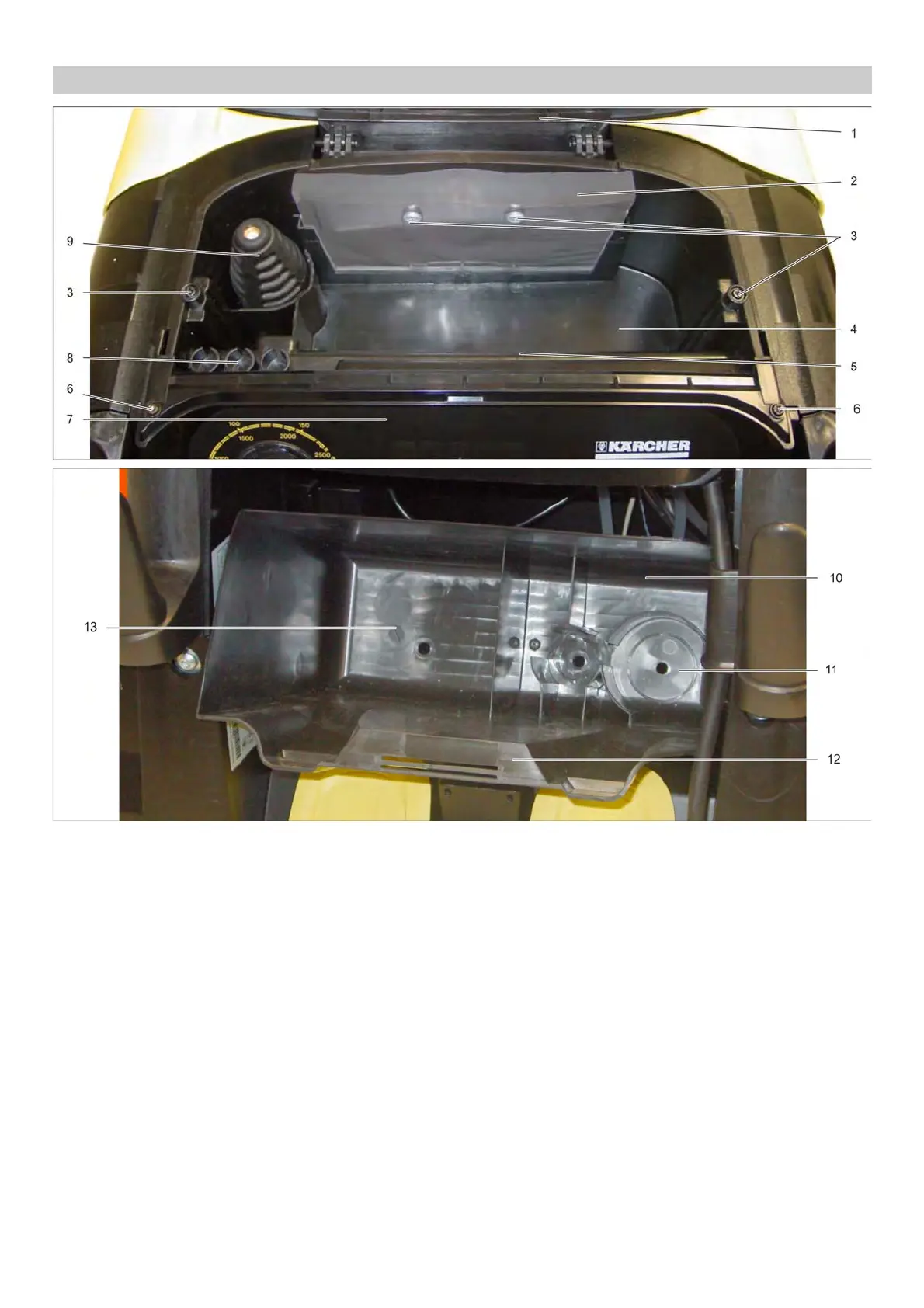

1 Cover, upper storage compartment

2 Storage operating instructions

3 Fastening screws upper storage compartment (4x)

4 Storage compartment top

5Nameplate

6 Fastening screw control panel

7 Operator console

8 Storage replacement nozzles

9 Storage dirt grinder

10 Storage compartment bottom

11 Bottle holder for round liquid softener bottle or deter-

gent bottle

12 Recessed grip

13 Bottle holder for two RFID liquid softener bottles

6.5 Storage compartments

Kärcher HDS 8/18 M Service Manual
