56 English 5.906-432.0 Rev. 00 (06/15)

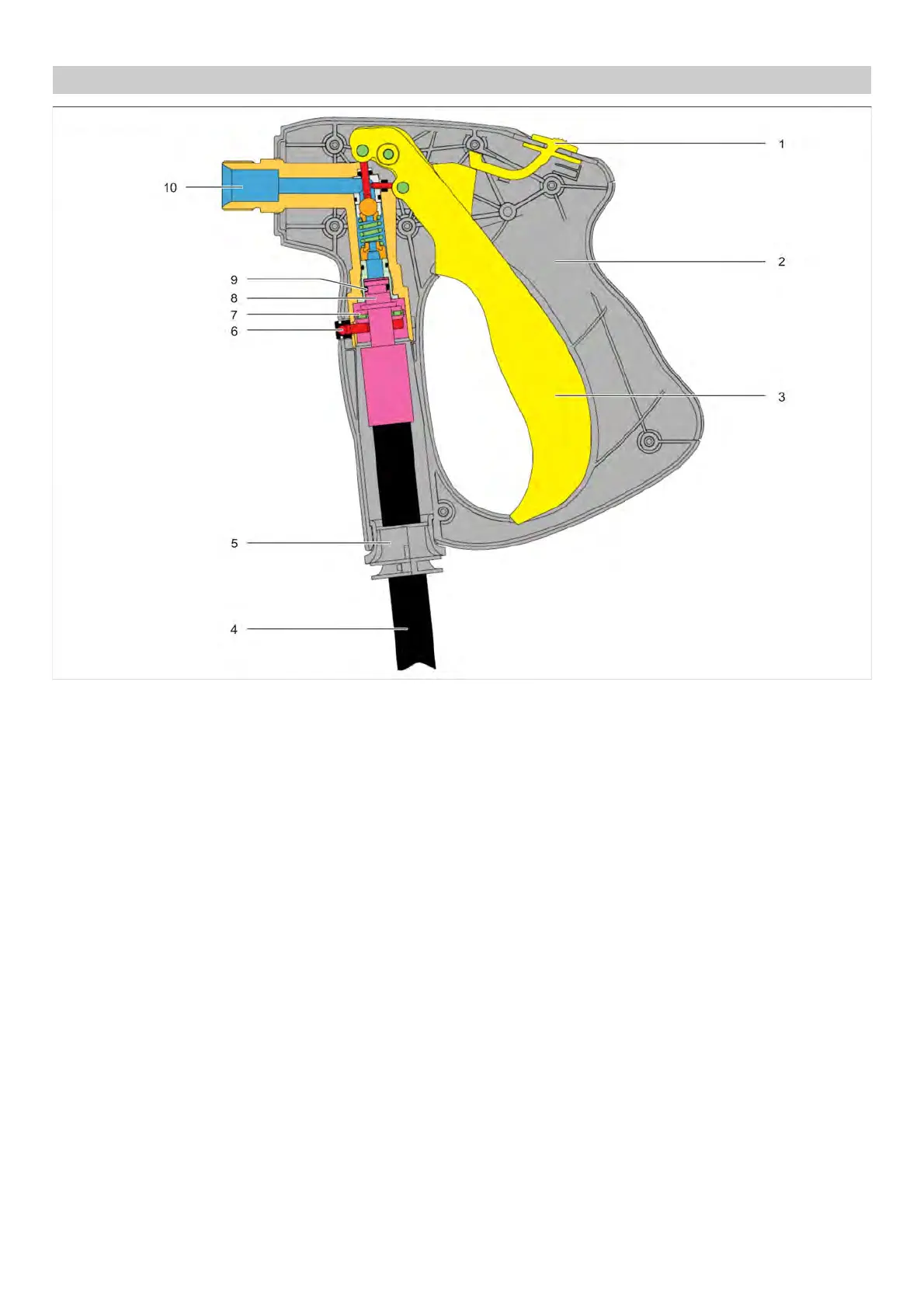

1 Lock trigger gun
2 Casing shell
3 Hand lever
4 High pressure hose
5 Hose guide
6 Safety clip
7 Needle bearing
8 Coupling high-pressure hose/trigger gun
9O ring
10 Node piece
Function
When the manual lever is actuated, the valve in the node
piece opens and the water can flow from the hose through
the gun into the spray lance.
Note
The node piece cannot be repaired and must be replaced
as a complete unit.
The date of manufacture is imprinted on the node piece. It
is composed of the month (letters A to L for January
through December) and year (1-digit number 1 for 2011, 2
for 2012, etc.).
Example: H1 = August 2011
6.26 Hand spraygun
