Kärcher HDS 8/18 M Service Manual

English 5.906-432.0 Rev. 00 (06/15) 41

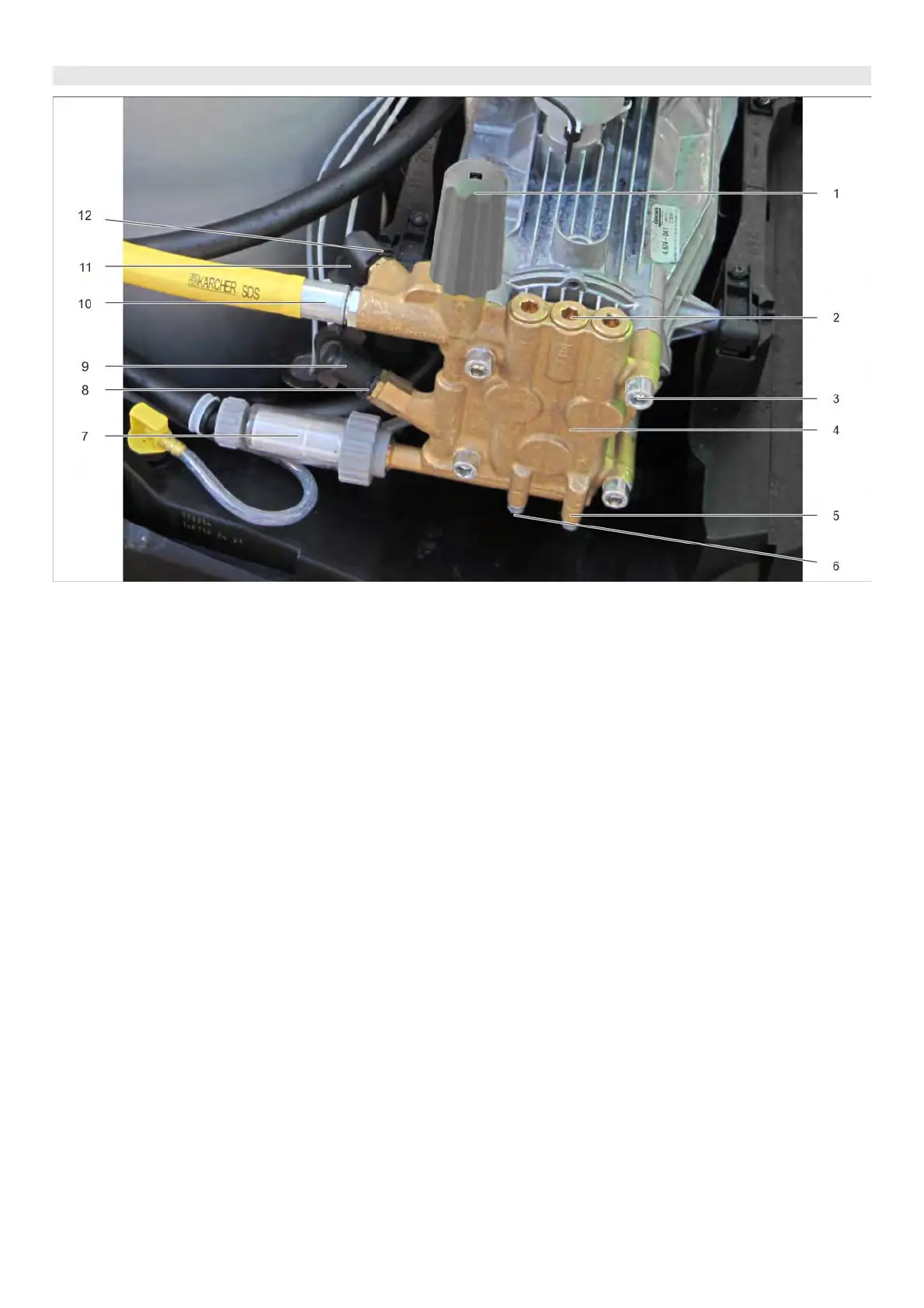

1 Handle, pressure and volume regulation
2 Screwed sealing plug
3 Screws pump head
4 Pump head
5 Suction jumper
6 Screwed sealing plug
7 Filter
8 Safety bracket, pressure switch OFF
9 Pressure switch OFF
10 SDS hose to the safety block
11 Pressure switch ON
12 Safety bracket, pressure switch ON
6.17.1 Revised version with filter before the pump
