English 5.906-432.0 Rev. 00 (06/15) 35

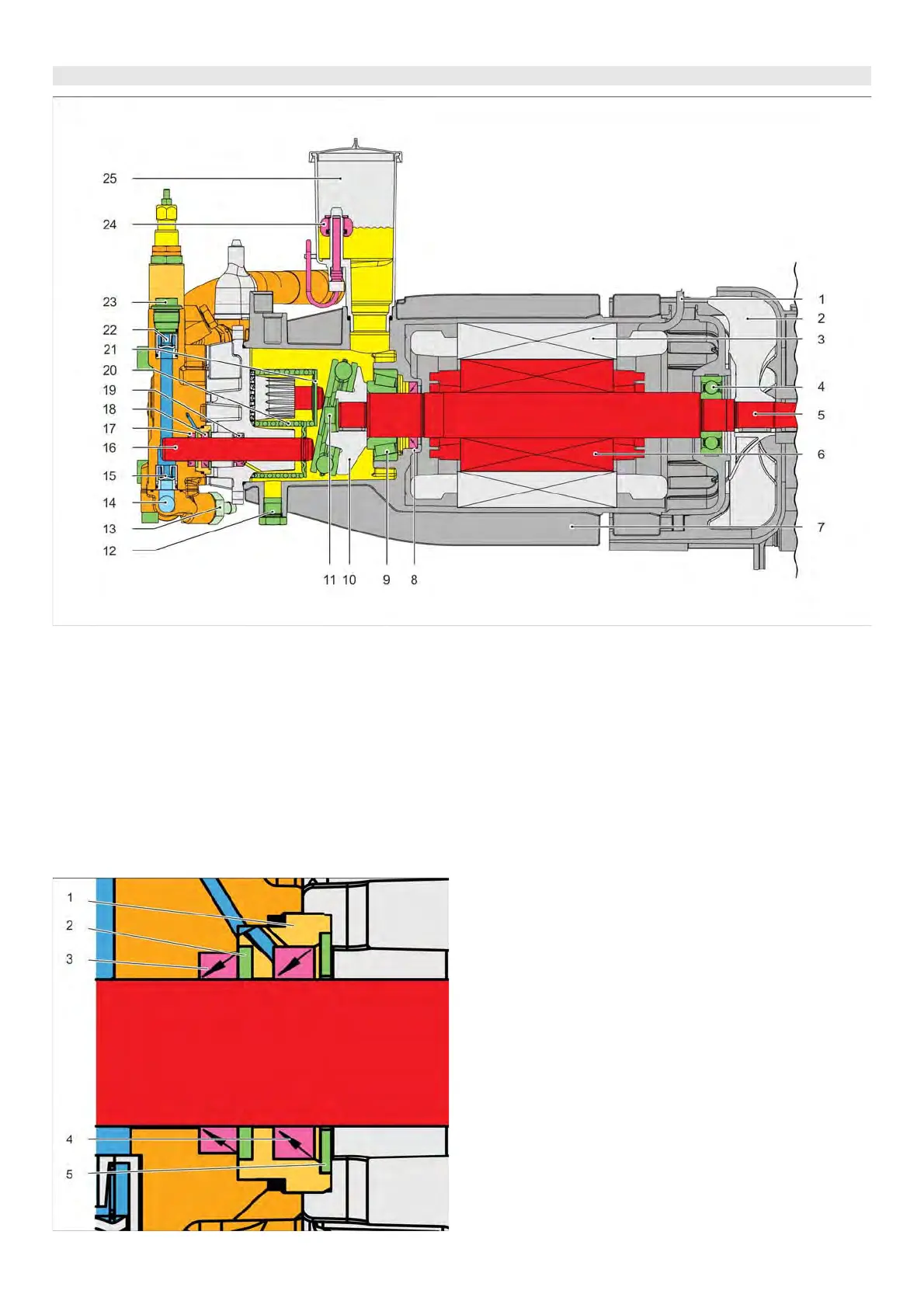

1 Connecting cable, motor
2Fan wheel
3 Stator
4 Motor bearing, rear (B bearing)
5 Motor shaft
6 Rotor
7Casing
8 Shaft seal ring
9 Motor bearing, front (A bearing)
10 Swash plate with axial ball bearing
11 Screw
12 Oil drain screw
13 Detergent suck in
14 Suction side
15 Suction valve
16 Piston
17 High pressure seal
18 Low pressure seal
19 Oil seal
20 Piston spring
21 Retaining plate for piston spring
22 Pressure valve
23 Valve screw
24 Oil level sensor
25 Oil fill container
1 Bushing
2 Washer, plastic
3 High pressure seal
4 Low pressure seal
5 Washer, brass
6.14.1 Motor (air-cooled)
