1 Fuel line to the booster heater
2 Electric box, motor
3 Burner blower
4 Oil refill container pump
5 Motor
6 Handle, pressure and volume regulation
7 Pump head
8 Oil drain screw
9Chassis
10 Plug detergent tank 2
11 Water hose to the pump
12 Casing water fine filter
13 SDS hose to the safety block
14 Splashboard, safety valve
15 Safety valve
16 Water shortage safeguard
17 Continuous heater
18 Service switch and setting liquid softener
19 Exhaust nozzle, on-demand heater
20 Burner, booster heater
21 Locking block cover
22 Cover, storage compartment top

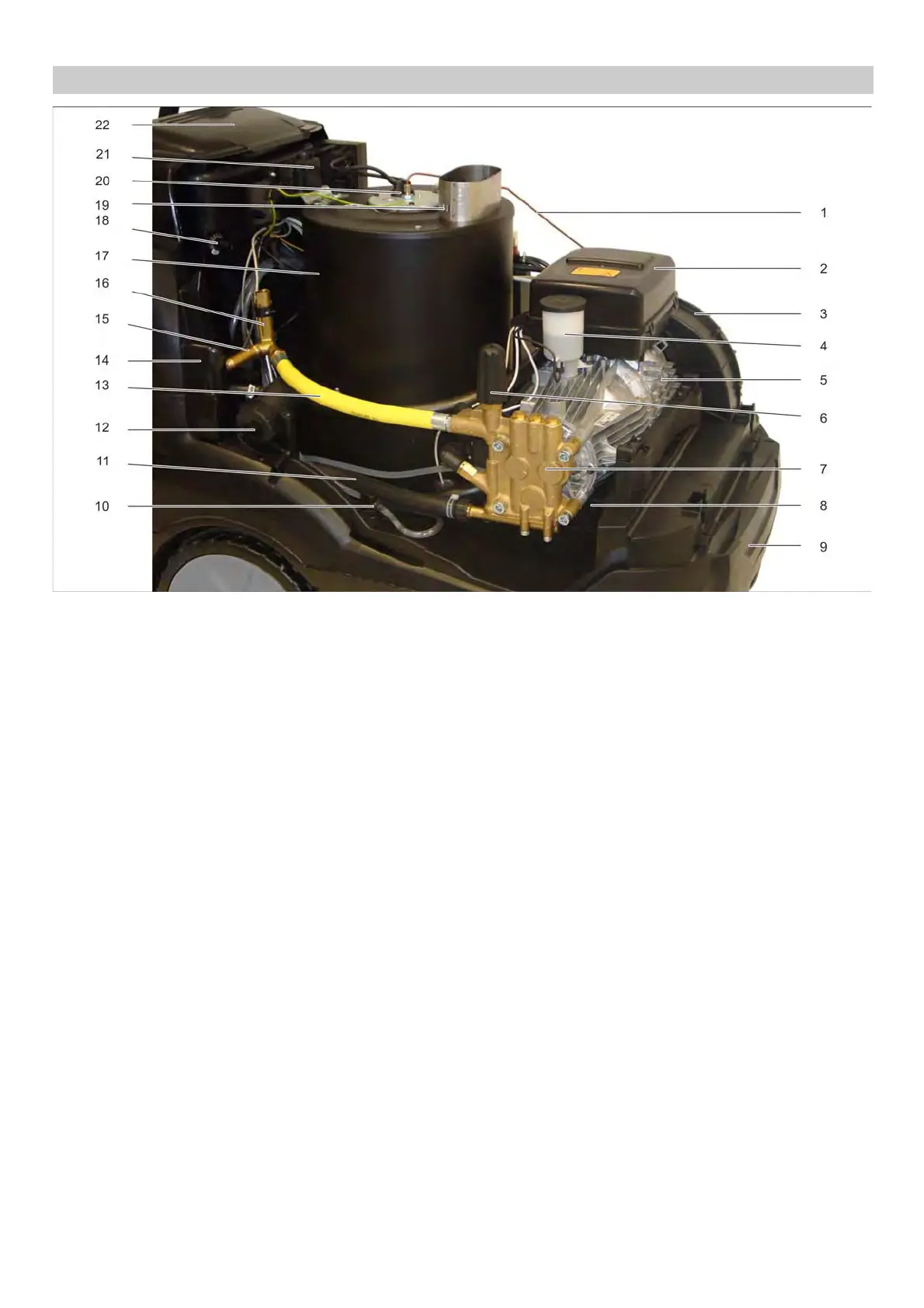

6.7 View from the right, cover removed
