Kärcher HDS 8/18 M Service Manual

42 English 5.906-432.0 Rev. 00 (06/15)

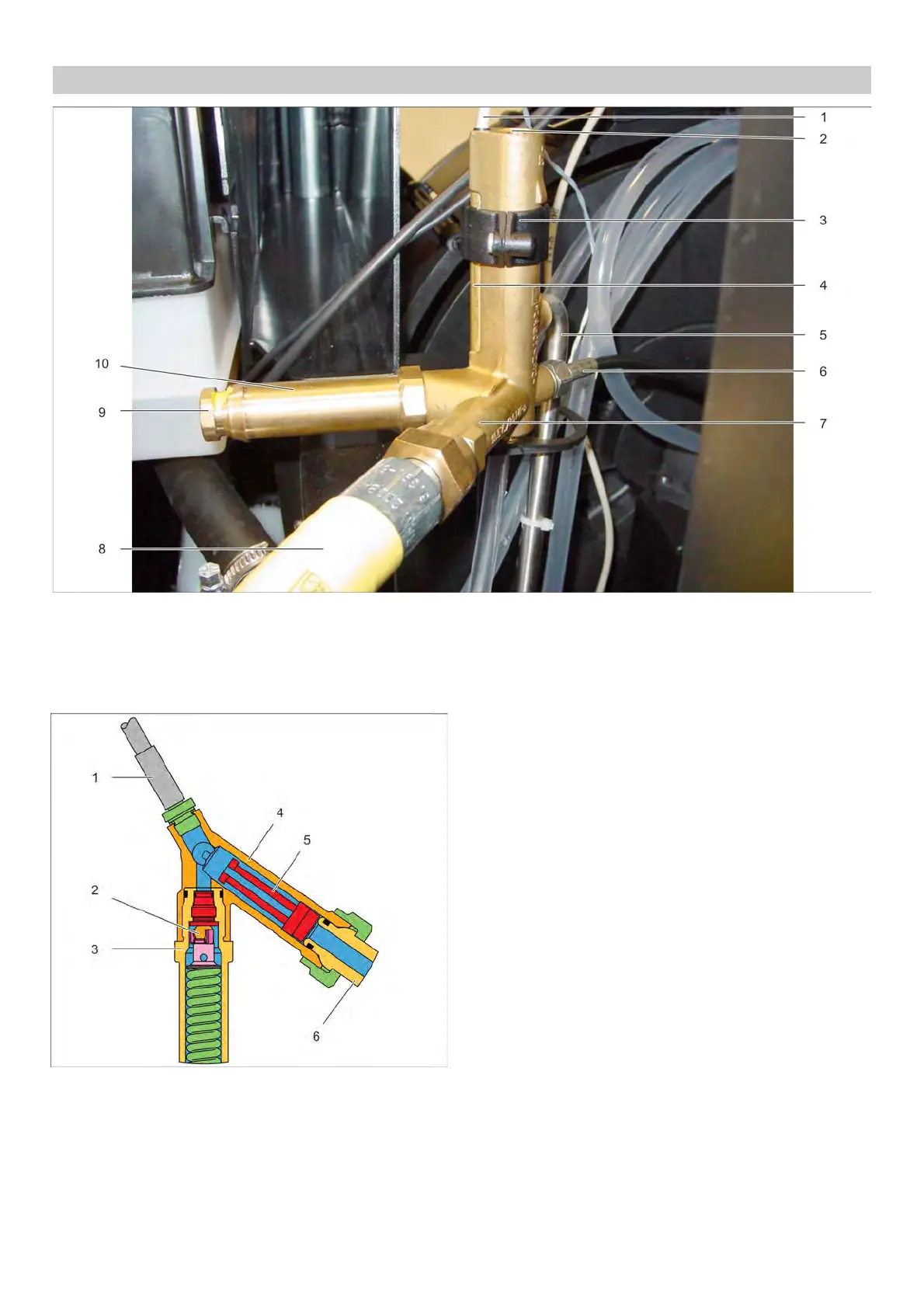

1 Connecting cable, reed switch
2 Screwed sealing plug
3 Clamping bracket
4 Reed switch
5 High pressure pipe to the on-demand heater
6 Connection hose pressure gauge
7 Safety block
8 SDS hose
9 Adjustment screw, safety valve
10 Valve ball
1 Connection hose pressure gauge
2 Valve ball
3 Safety valve
4 Safety block
5Sieve
6 SDS hose
6.18 Safety block
