72 English 5.906-432.0 Rev. 00 (06/15)
 7.1.2Renew O-rings axle, hose reel

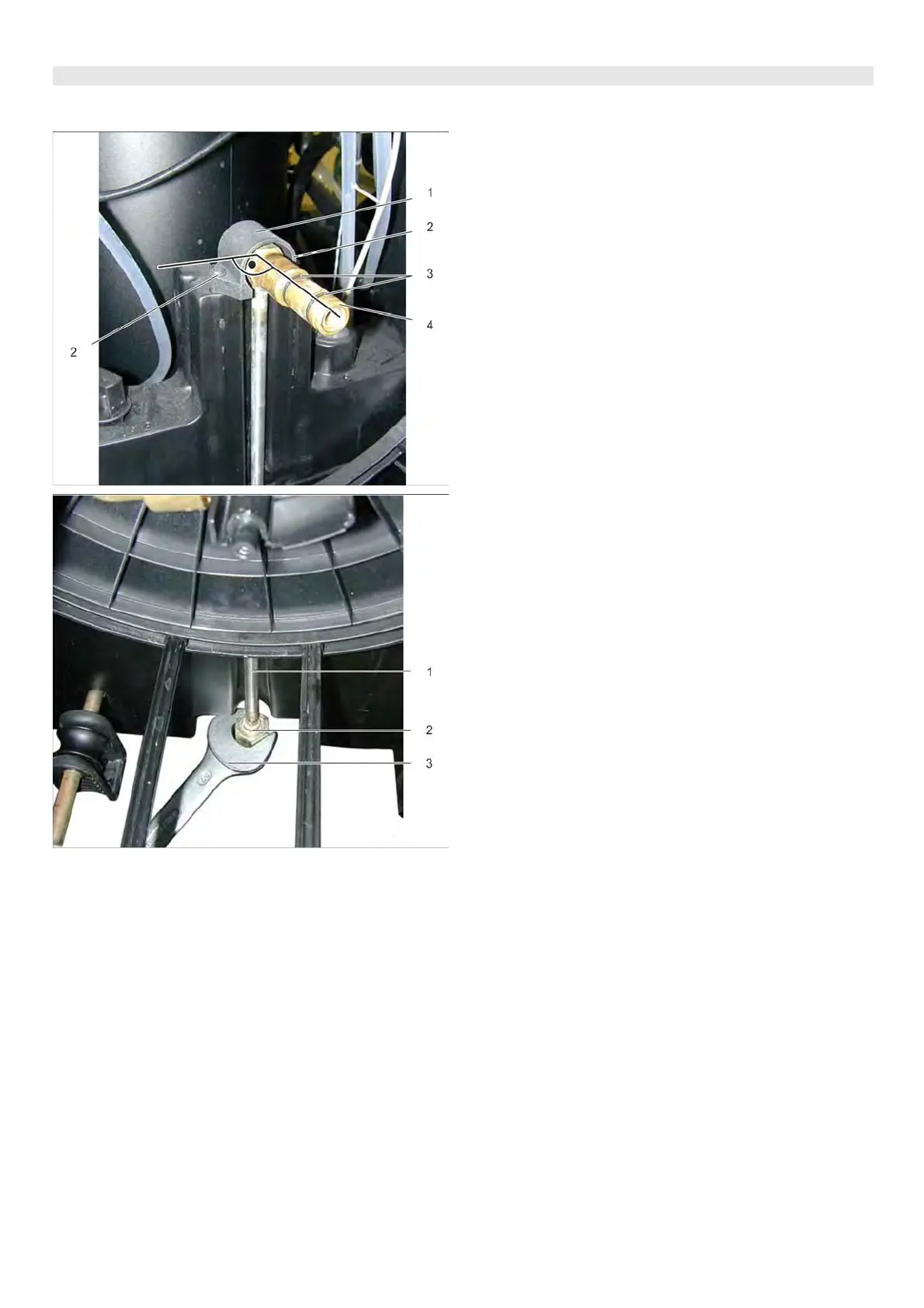

1 Rear bearing block
2 Screws
3O rings
4 Pipeline with axle
Note
Align the pipeline with axle at a right angle to the rear bear-
ing block.
1 Pipeline with axle
2 Screw connection
3 Wrench
 Disconnect screw connection.
 Remove pipeline with axle.
