1 Indicator lamps
2 Programme selector switch (Q1)
3 Storage spray pipe
4 Setting, water temperature
5 Closure, liquid softener tank
6 Storage, power cord
7 Hose reel, high-pressure hose
8 Supply Cord
9 Closure detergent tank 2
10 Crank, hose drum
11 Recess hose reel lock
12 Chassis
13 High pressure hose
14 Water connection with water fine filter
15 Tread
16 Closure detergent tank 1
17 Storage high-pressure hose
18 Lock for fuel tank
19 Setting detergent dosing unit
20 Storage spray pipe
21 Manometer
22 Cover, upper storage compartment

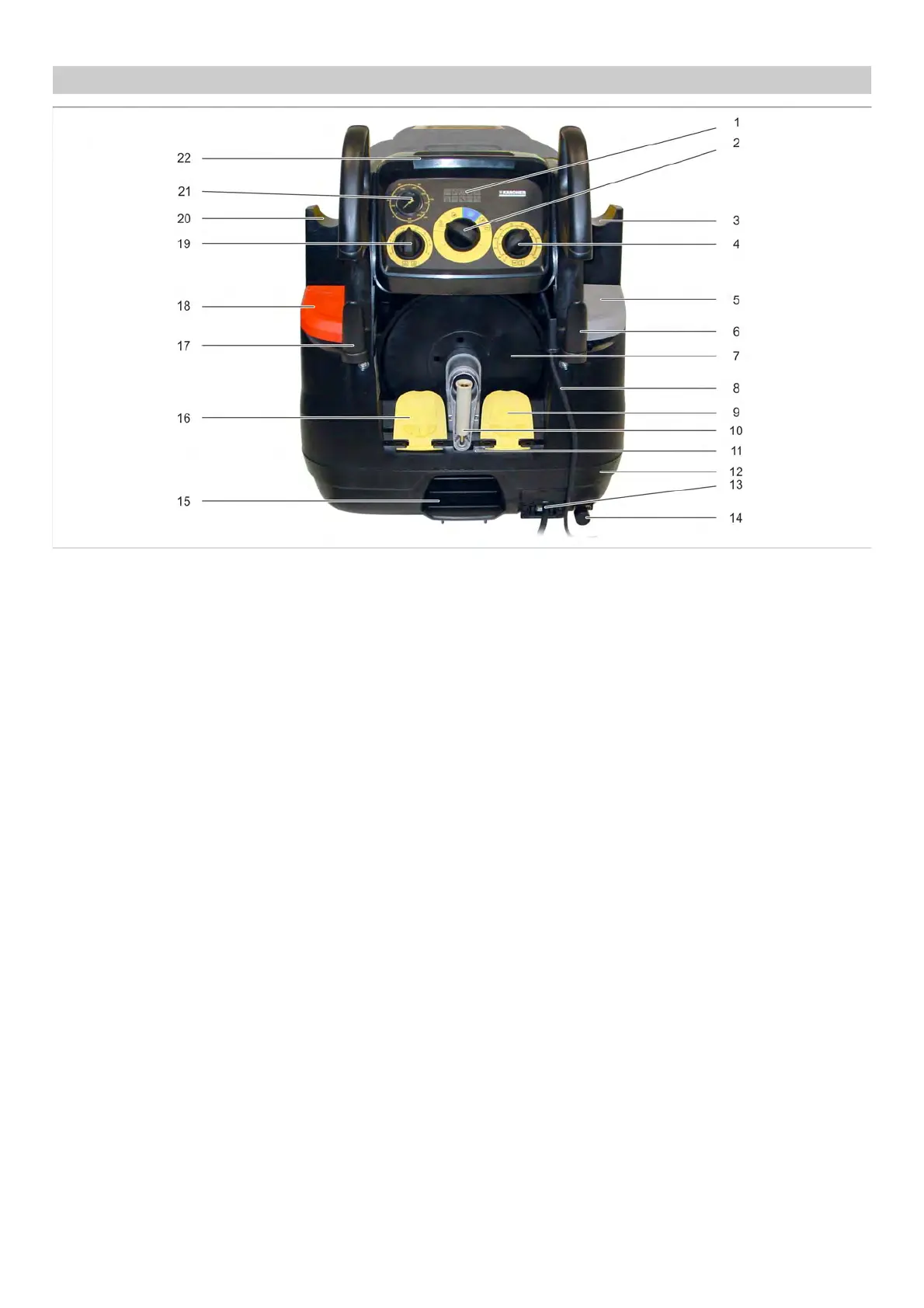

5.3 View from the back, (device with hose reel)
