English 5.906-432.0 Rev. 00 (06/15) 23

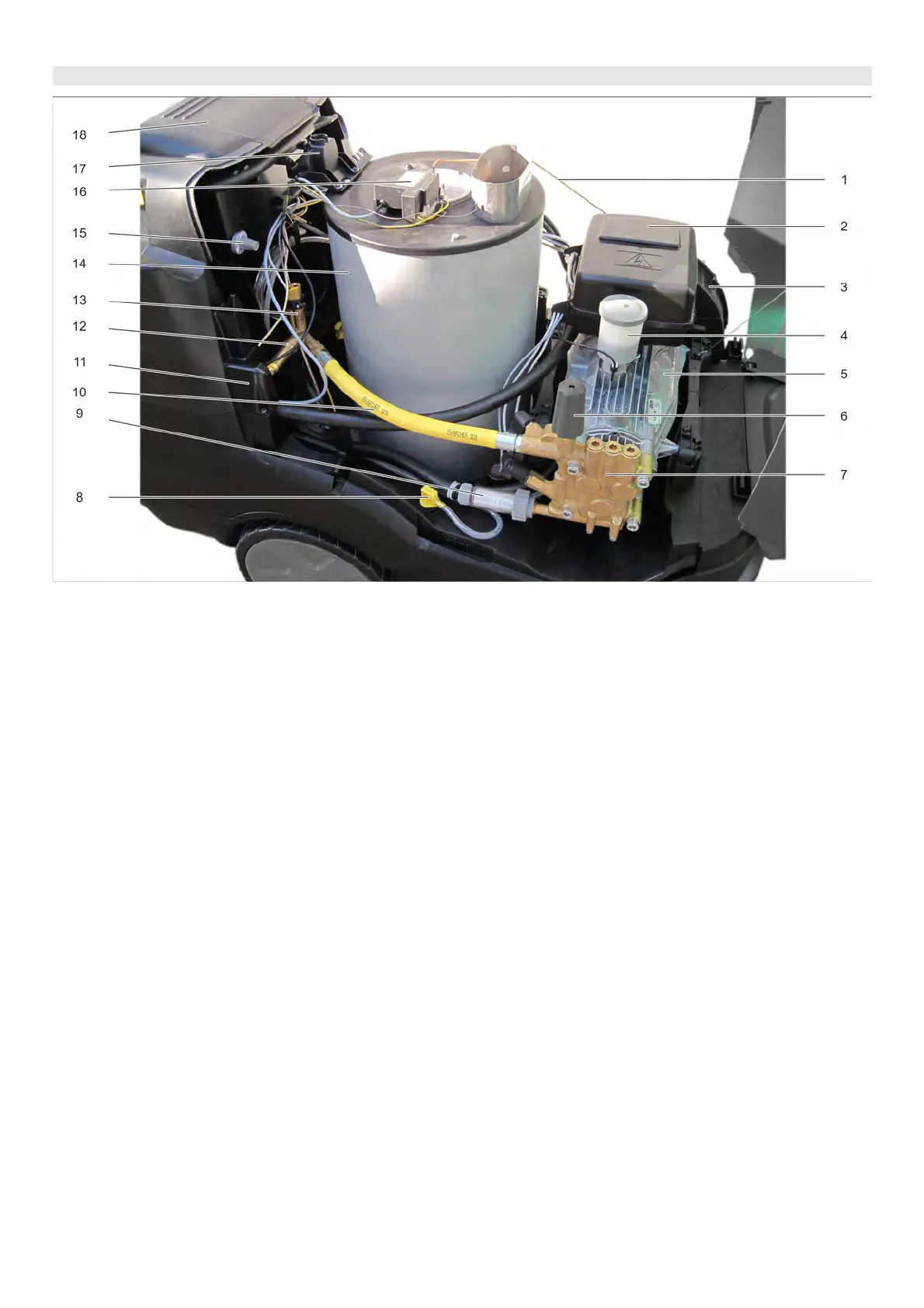

1 Fuel line to the booster heater
2 Electric box, motor
3 Burner blower
4 Oil refill container pump
5 Motor
6 Handle, pressure and volume regulation
7 Pump head
8 Plug detergent tank 2
9 Filter
10 SDS hose to the safety block
11 Splashboard, safety valve
12 Safety valve
13 Water shortage safeguard
14 Continuous heater
15 Service switch and setting liquid softener
16 Burner, booster heater
17 Locking block cover
18 Cover, storage compartment top
6.7.1 Revised device design (with filter before the pump and electronic ignition transformer)
