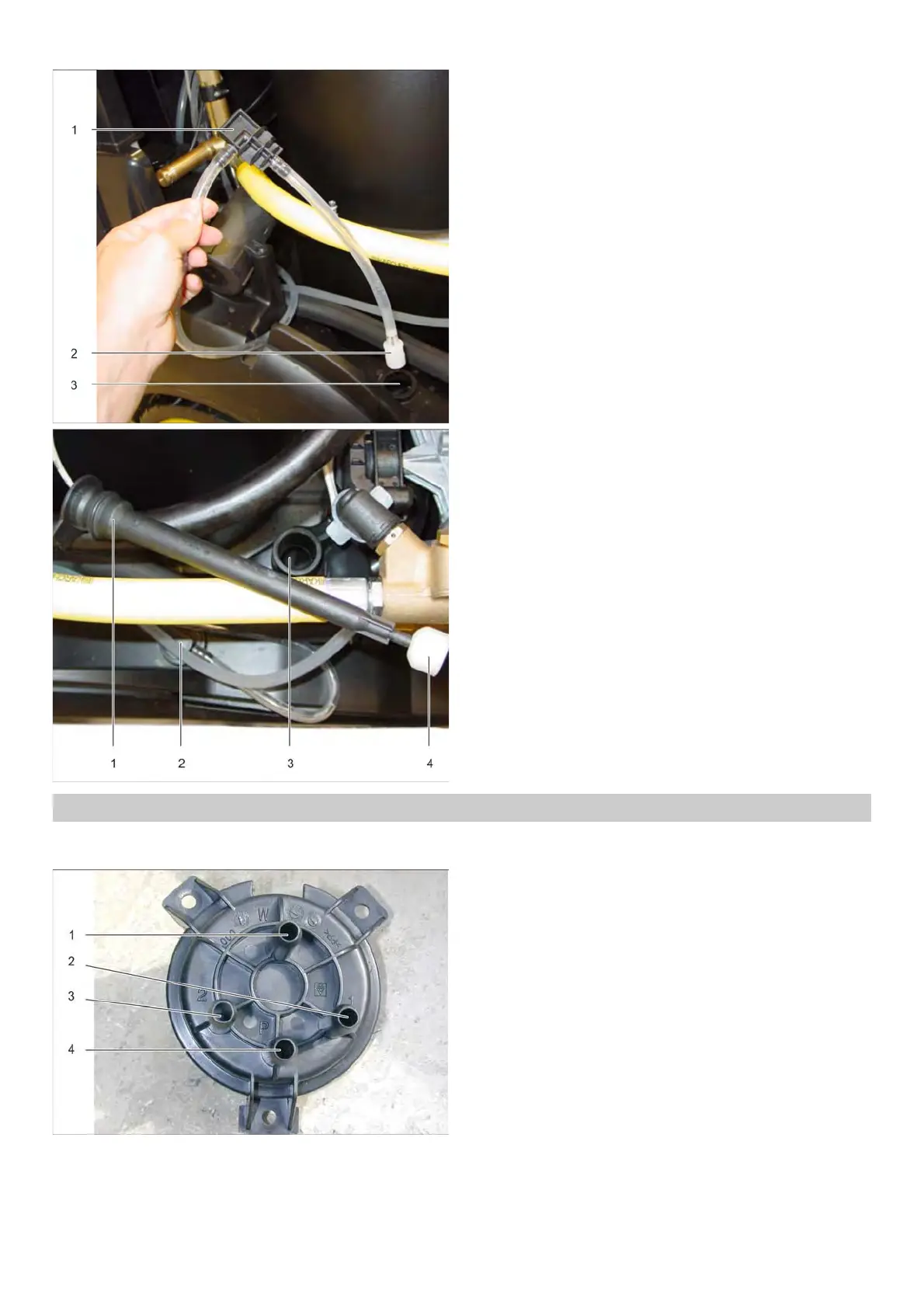

English 5.906-432.0 Rev. 00 (06/15) 33
1 Stopper
2 Cleaning agent filter
3 Detergent tank 2
1 Level sensor (option)
2 Stopper
3 Detergent tank 2
4 Float
Detergent dosing valve with automatic clear rinsing in
zero position
1 Water
2 Detergent tank 1
3 Detergent tank 2
4Pump
6.13 Detergent dosing valve
