3.2.2 Control cabinet installation
Power dissipation for the control cabinet dimension => „3.6.5 Power dissipation 400 V
devices“. A lower value can be used here depending on the operating mode / load.
Installation of the drive controller
For reliable operation, the drive controller must be installed without clearance
on a smooth, closed, bare metal mounting plate.
Mounting distances
Dimen-
sion
Distance in mm Distance in inch
A
B
D
E
F
C
D
A 150 6
B 100 4
C 30 1.2
D 0 0
E 0 0
F
1)
50 2
1)
Distance to preceding elements in the cabinet
door.

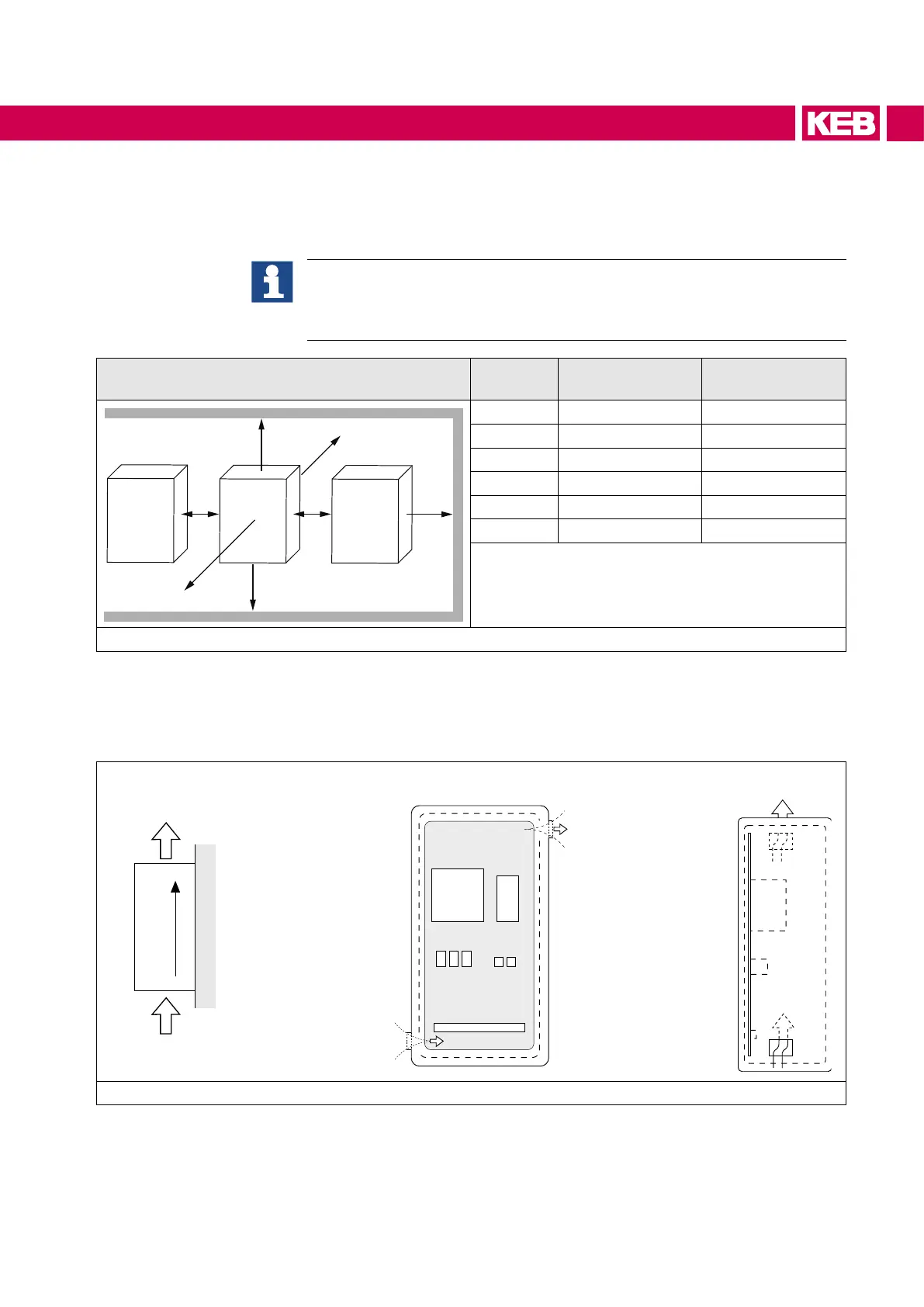

Figure 3: Mounting distances
If construction-conditioned the control cabinet cannot be without indoor ventilation, ap-
propriateltersmustavoidsuctionofforeignobjects.
Direction of the air
ow
Front and side view of the coolant inlet
Coolant outlet
Coolant inlet
Figure 4: Control cabinet ventilation
