CONNECTION OF THE POWER UNIT
4.2.6.8 Wiring of the motor
U
V
W
U
V
W
5
6
X1C
X1A
➀ ➁ ➂
9
10
Control
P A/K
④
Legend
1 KEB COMBIVERT
2 Motor cable
1)
3 Three-phase motor
4 Temperature monitoring
2)

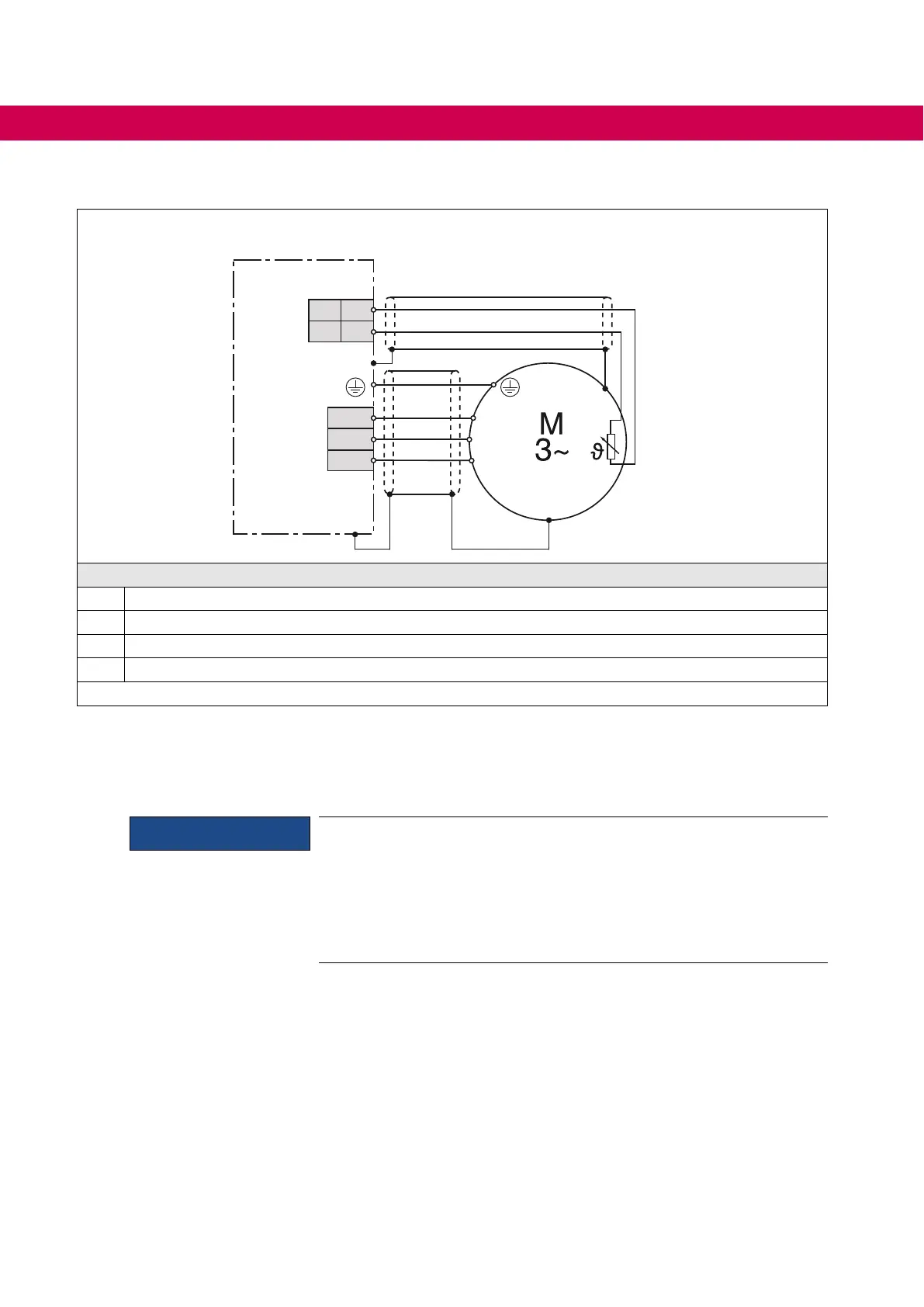

Figure 21: Wiring of the motor
1)
Apply the shield at both ends over a large area on the functional earth (shielding plate or mounting plate)
2)
Temperature monitoring is optionally available, => Instructions for use „Control unit“.
NOTICE
Connection of the temperature monitoring
• Do not lay the connection cable of the motor temperature detection
(also shielded) together with the control cable !
• The connection cable of the temperature detection inside the motor
cable is only permissible with additional shielding (double shielding) !
• The input of the temperature detection has basic isolation.
