BRAKE CONTROL AND TEMPERATURE DETECTION FOR P- CONTROL
4.4.2.3 Connection of PTC, temperature switch or PT1000
Thermal contact (NC contact)
TA1
TA2
①
Temperature sensor (PTC) or PT1000
TA1
TA2
①
Mixed sensor chain
TA1
TA2
①
Name Function Stetting
TA1 (X1C.9);
TA2 (X1C.10)
Temperature sensor input
dr33=1; PTC or tempera-
ture switch
dr33=4; PT1000
1 Connection via shield plate
1)

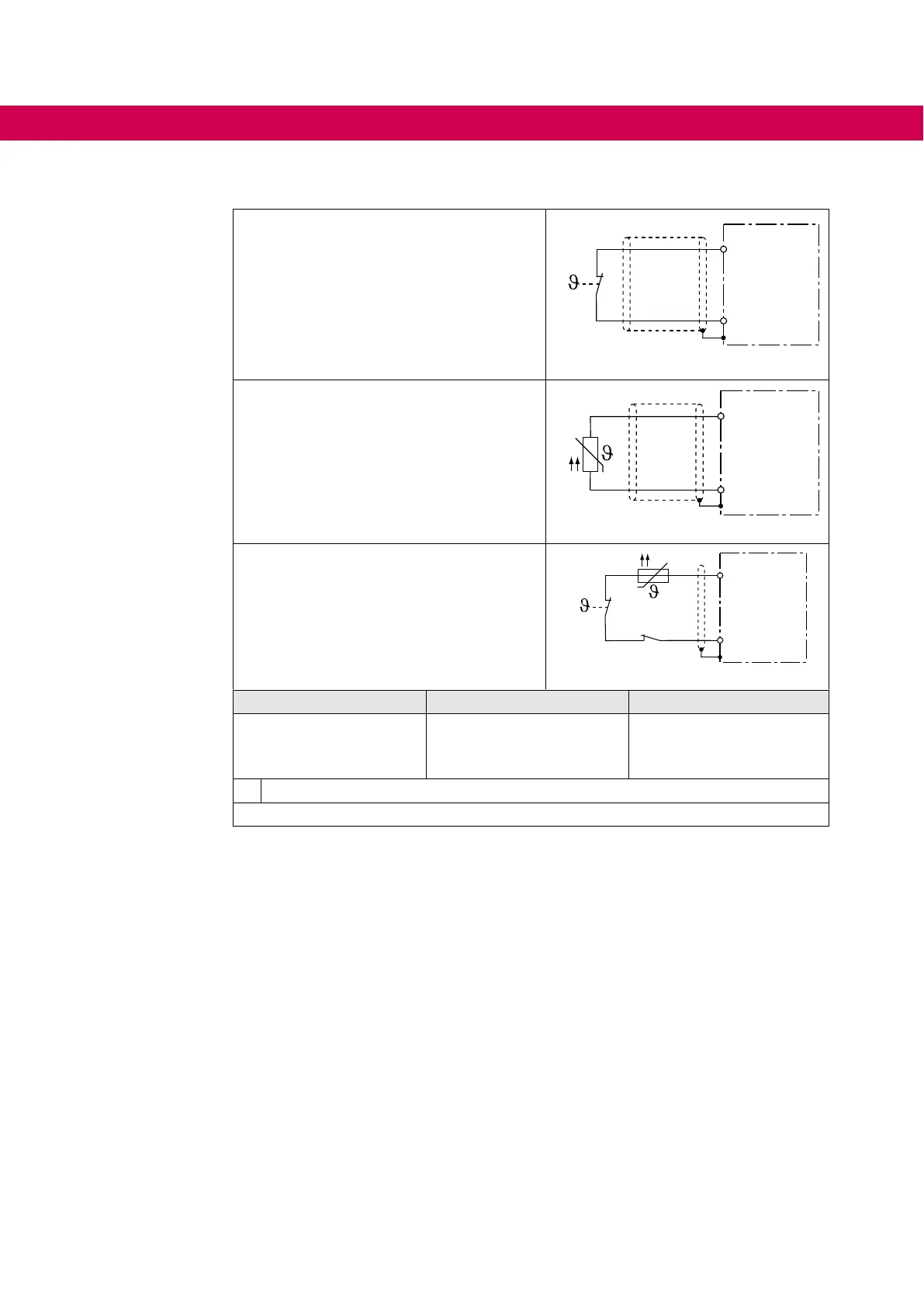

Figure 30: Connection examples of dierent temperature sensors for P-control
1)
If not available, place on the mounting plate.
