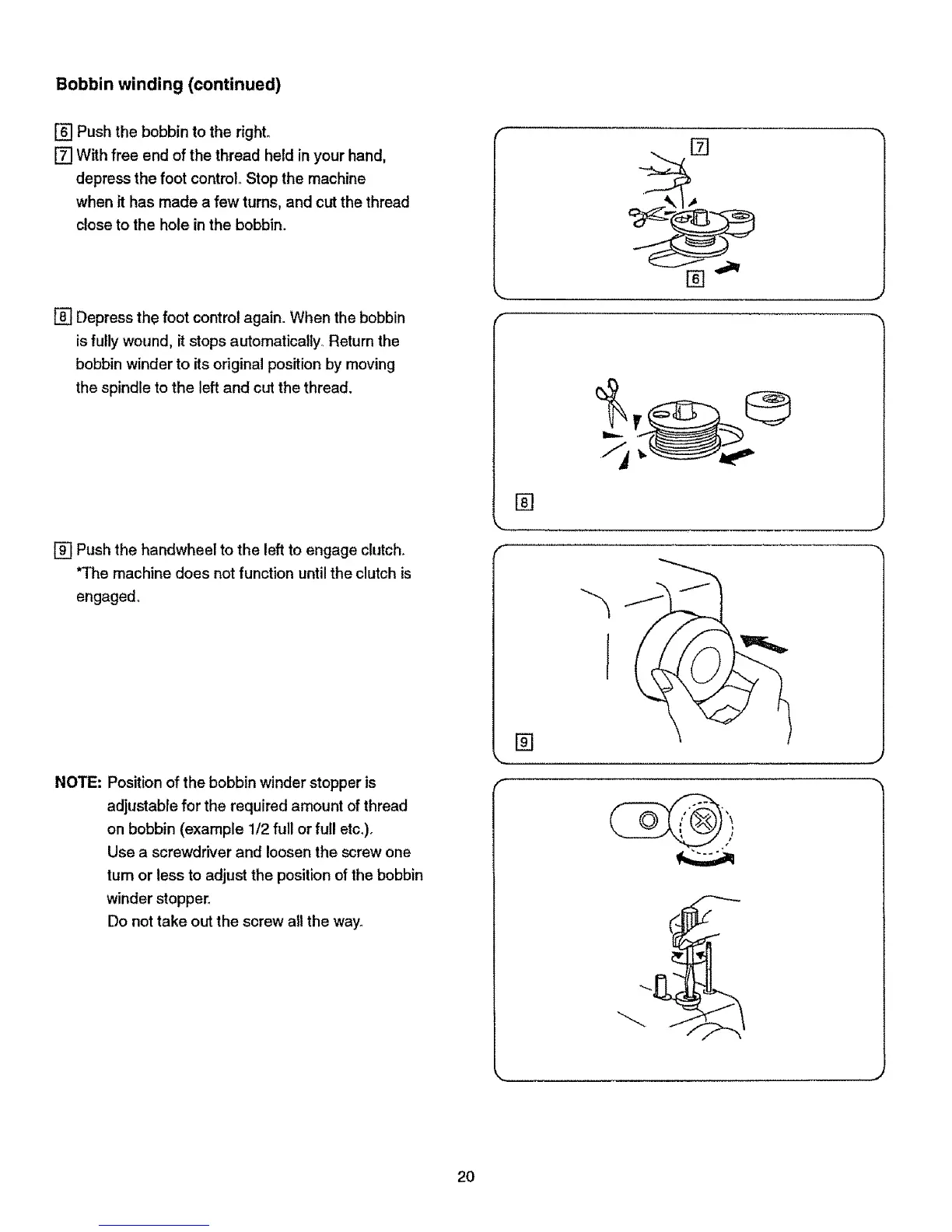

Bobbin winding (continued)
[] Push the bobbin to the right.
[] With free end of the thread held in your hand,
depress the foot control,, Stop the machine
when it has made a few turns, and cut the thread
close to the hole in the bobbin.
[] Depress the foot control again. When the bobbin
isfully wound, it stops automatically,. Return the
bobbin winder to its original position by moving
the spindle to the left and cut the thread.
[]
.... J
[] Push the handwheel to the left to engage clutch.
*The machine does not function until the clutch is
engaged_
NOTE: Position of the bobbin winder stopper is
adjustable for the required amount of thread
on bobbin (example 1/2 full or full etc.).
Use a screwdriver and loosen the screw one
tum or less to adjust the position of the bobbin
winder stopper,
Do not take out the screw all the way_
r
..... ,J
2O
