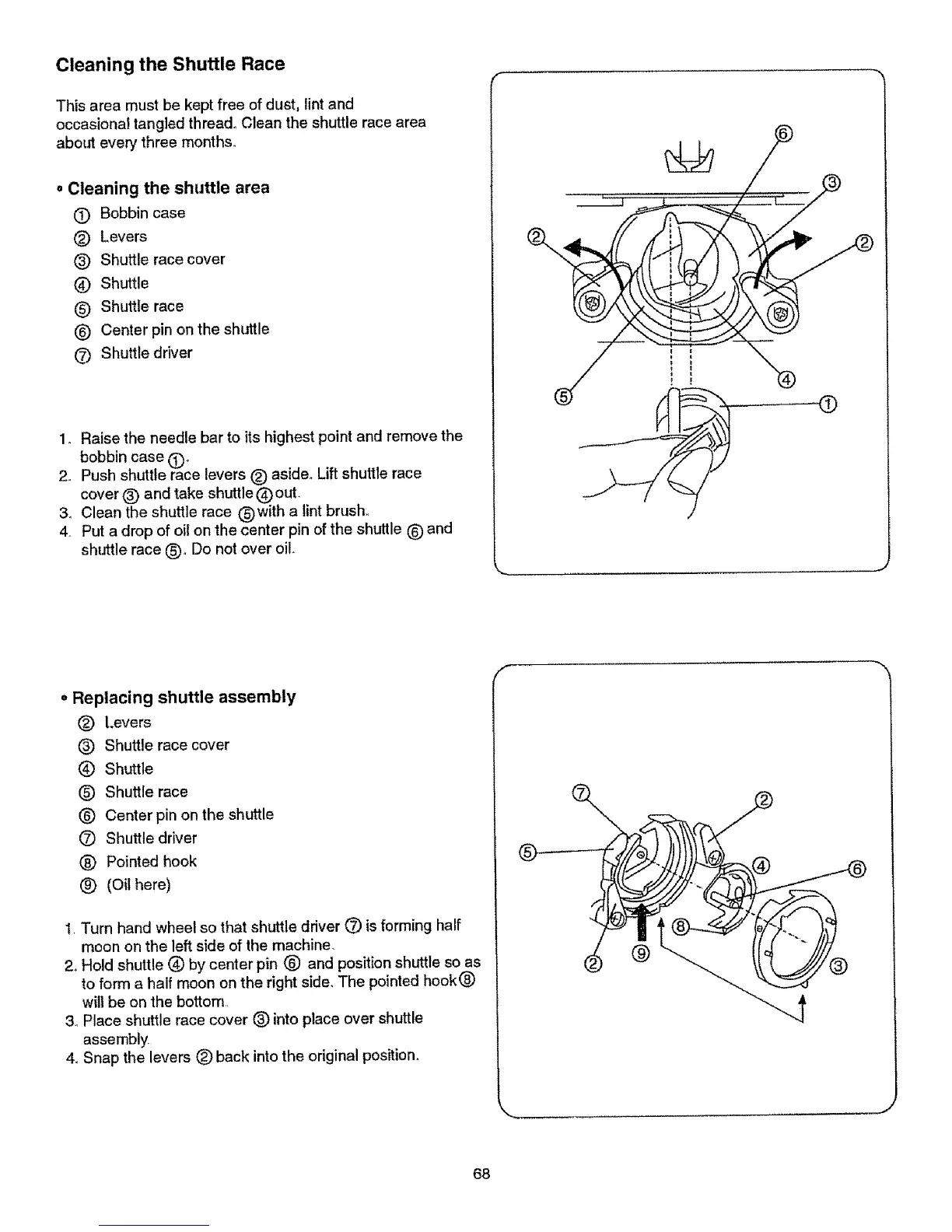

Cleaning the Shuttle Race
This area must be kept free of dust, lint and
occasional tangled thread. Clean the shuttle race area
about every three months.
o Cleaning the shuttle area
0 Bobbin case
(_) Levers
(_ Shuttle race cover
(_ Shuttle
(_) Shuttle race
(_ Center pin on the shuttle
0 Shuttle driver
1o Raise the needle bar to its highest point and remove the
bobbin case (_)o
24 Push shuttle race levers _) aside° Lift shuttle race
cover (_ and take shuttle (_out,
34 Clean the shuttle race (_)with a lint brush,
4. Put a drop of oil on the center pin of the shuttle (_ and
shuttle race _). Do not over oil.
oReplacing shuttle assembly
(_) Levers
(_) Shuttle race cover
(_ Shuttle
(_) Shuttle race
_) Center pin on the shuttle
0 Shuttle driver
(_ Pointed hook
(_) (Oil here)
1, Turn hand wheel so that shuttle driver (Z) isforming half
moon on the left side of the machine.
2.,Hold shuttle (_) by center pin (_) and position shuttle so as
to form a half moon on the right side, The pointed hook(_)
will be on the bottom,
3_ Place shuttle race cover (_) into place over shuttle
assembly
4, Snap the levers (_ back into the original position.
®
®
68
