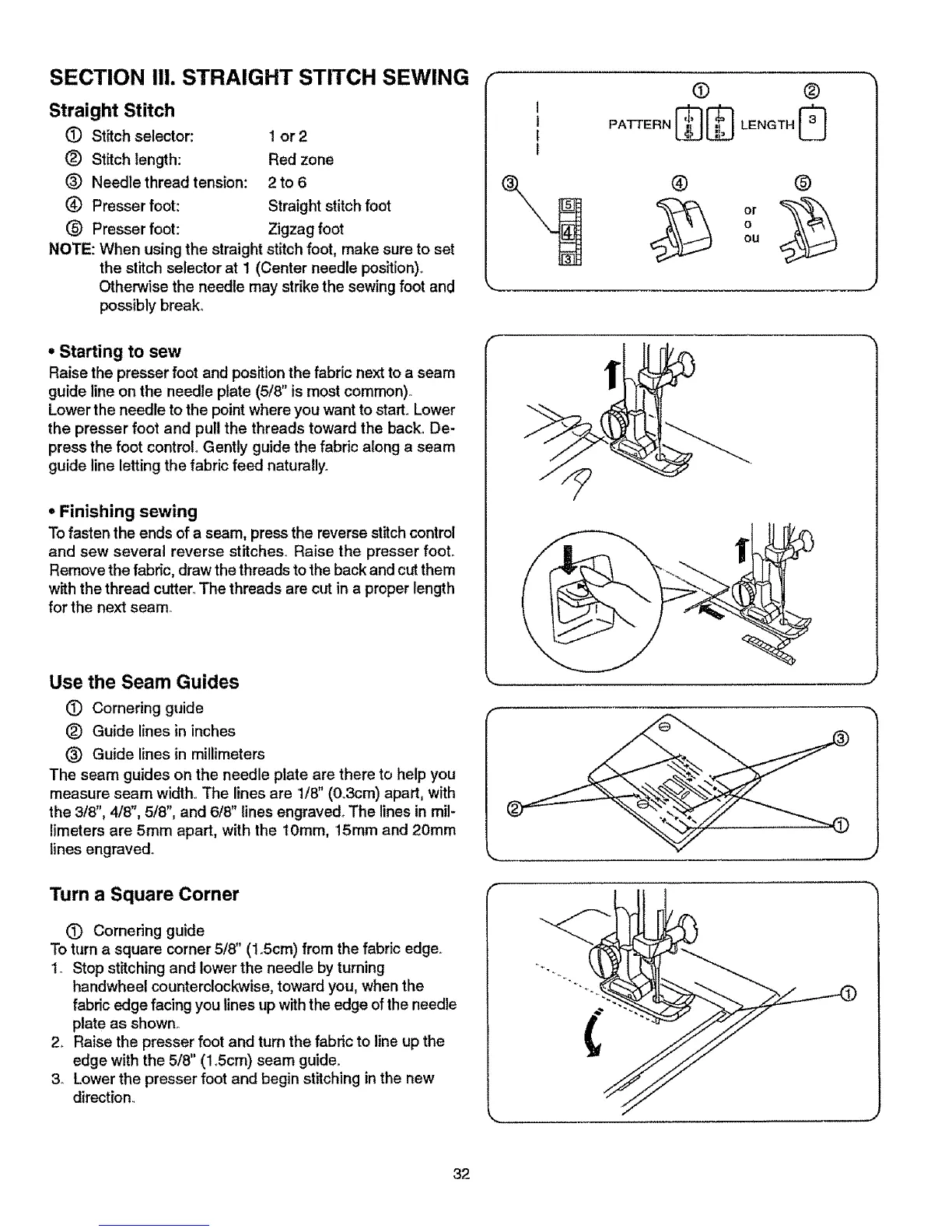

SECTION III. STRAIGHT STITCH SEWING r
Straight Stitch
(_ Stitch selector:
(_) Stitch length:
(_ Needle thread tension:
(_) Presser foot:
_) Presser foot:
NOTE: When using the straight stitch foot, make sure to set
the stitch selector at I (Center needle position),
Otherwise the needle may strike the sewing foot and
possibly break°
1 or2
Red zone
2to 6
Straight stitch foot
Zigzag foot
• Starting to sew
Raise the presser foot and position the fabric next to a seam
guide line on the needle plate (5/8" is most common)_
Lower the needle to the point where you want to start, Lower
the presser foot and pull the threads toward the back, De-
press the foot control. Gently guide the fabric along a seam
guide line letting the fabric feed naturally.
° Finishing sewing
To fasten the ends of a seam, press the reverse stitch control
and sew several reverse stitches.. Raise the presser foot..
Remove the fabric, draw the threads to the back and cut them
with the thread cutter. The threads are cut in a proper length
for the next seam.
i
I
I
I
0 ®
PATTERN _ _ LENGTH _
or
o
OU
Use the Seam Guides
(_) Cornering guide
(_) Guide lines in inches
(_) Guide lines in millimeters
The seam guides on the needle plate are there to help you
measure seam width° The lines are 1/8" (0.3cm) apart, with
the 3/8", 4/8", 5/8", and 6/8" lines engraved..The lines in mil-
limeters are 5ram apart, with the 10mm, 15ram and 20mm
lines engraved°
Turn a Square Corner
(_ Cornering guide
To turn a square corner 5/8" (1,,Scm)from the fabric edge,,
1o Stop stitching and lower the needle by turning
handwheel counterclockwise, toward you, when the
fabric edge facing you lines up with the edge of the needle
plate as shown°
2, Raise the presser foot and turn the fabric to line up the
edge with the 5/8" (1.5cm) seam guide,
3_ Lower the presser foot and begin stitching in the new
direction,
32
