Kenmore Oasis 110.67092600 User Manual

2-8

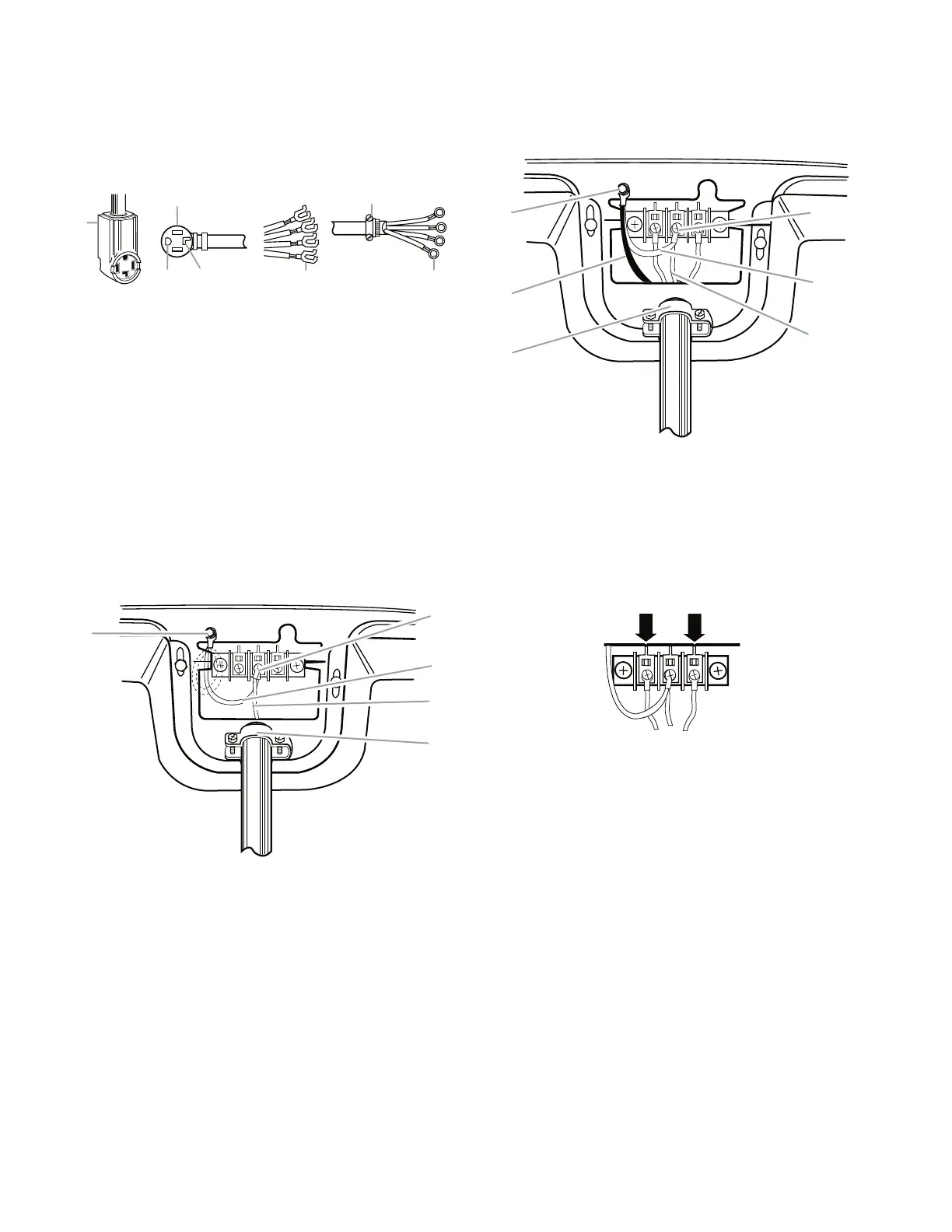

4-wire connection: Power supply cord
IMPORTANT: A 4-wire connection is required
for mobile homes and where local codes do
not permit the use of 3-wire connections.
A. 4-wire receptacle (NEMA type 14-30R)
B. 4-prong plu
g
C.
Ground prong
D. Neutral
prong
E. Spade terminals with upturned ends
F.
³⁄4
(1.9 cm) UL listed strain relief
G. Ring terminals
A
B
C
D
E
F
G
˝
3. Connect ground wire (green or bare) of
power supply cord to external ground
conductor screw. Tighten screw.
1. Remove center silver-colored terminal
block screw.
2. Remove neutral ground wire from exter
-
nal ground conductor screw. Connect
neutral ground wire and the neutral wire
(white or center wire) of power supply
cord under center, silver-colored terminal
block screw. Tighten screw.
A. External ground conductor screw - Dotted line shows
position of NEUTRAL ground wire before being moved to
center silver-colored terminal block screw.
B. Center silver-colored terminal block scre
w
C. Neutral ground wire
D. Neutral
wire (white or center wire)
E.
¾" (1.9 cm) UL listed strain relief
A
C
B
D
E
4. Connect the other wires to outer terminal
block screws. Tighten screws.
A. External ground conductor screw
B. Ground wire (green or bare) of power supply
cord
C. ¾" (1.9 cm) UL listed strain relie
f
D. Center silver-colored terminal block scre
w
E. Neutral ground wire
F. Neutral wire
(white or center wire)
D
E
F
A
C
B
5. Tighten strain relief screws.
6. Insert tab of terminal block cover into slot
of dryer rear panel. Secure cover with
hold-down screw.
7. You have completed your electrical con
-
nection. Now go to “Venting Require
-
ments.”
