2-3
Additional spacing is required if you ex-
haust out the rear of the dryer to either the
right or left side.
•

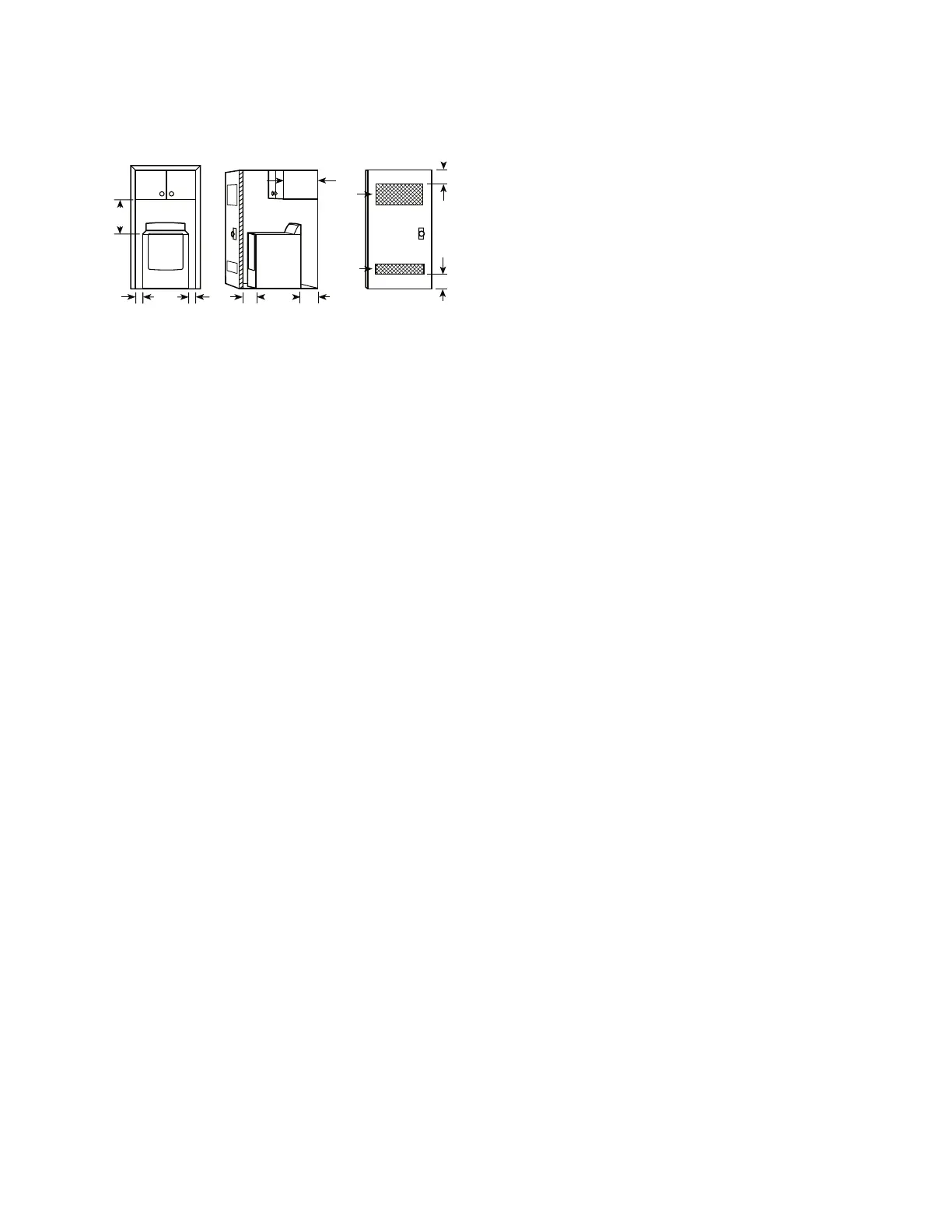

*Required spacing
A. Recessed area
B. Side view - closet or confined area
C. Closet door with vents
A
B
C
18"*
(45.7 cm
)
1"
(2.5 cm
)
29"
(73.66 cm
)
1"
(2.5 cm
)
1"*
(2.5 cm
)
14" max.*
(35.6c
m)
29¼"
(74.3 cm
)
5"
(12.7 cm)
48 in. *
(310 cm
)
2
2
24 in. *
(155 cm
)
2
2
3"*
(7.6 cm
)
3"
*
(7.6 cm
)
Mobile Home - Additional Installation Re-
quirements
This dryer is suitable for mobile home instal-
lations. The installation must conform to the
Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280 (formerly
the Federal Standard for Mobile Home Con
-
struction and Safety, Title 24, HUD Part 280).
Mobile home installations require:
Metal exhaust system hardware, which
is available for purchase from your local
Sears store or Sears Service Center.
Special provisions must be made in mo
-
bile homes to introduce outside air into the
dryer. The opening (such as a nearby win
-
dow) should be at least twice as large as
the dryer exhaust opening.
•
•
