4-1
SECTION 4
COMPONENT ACCESS

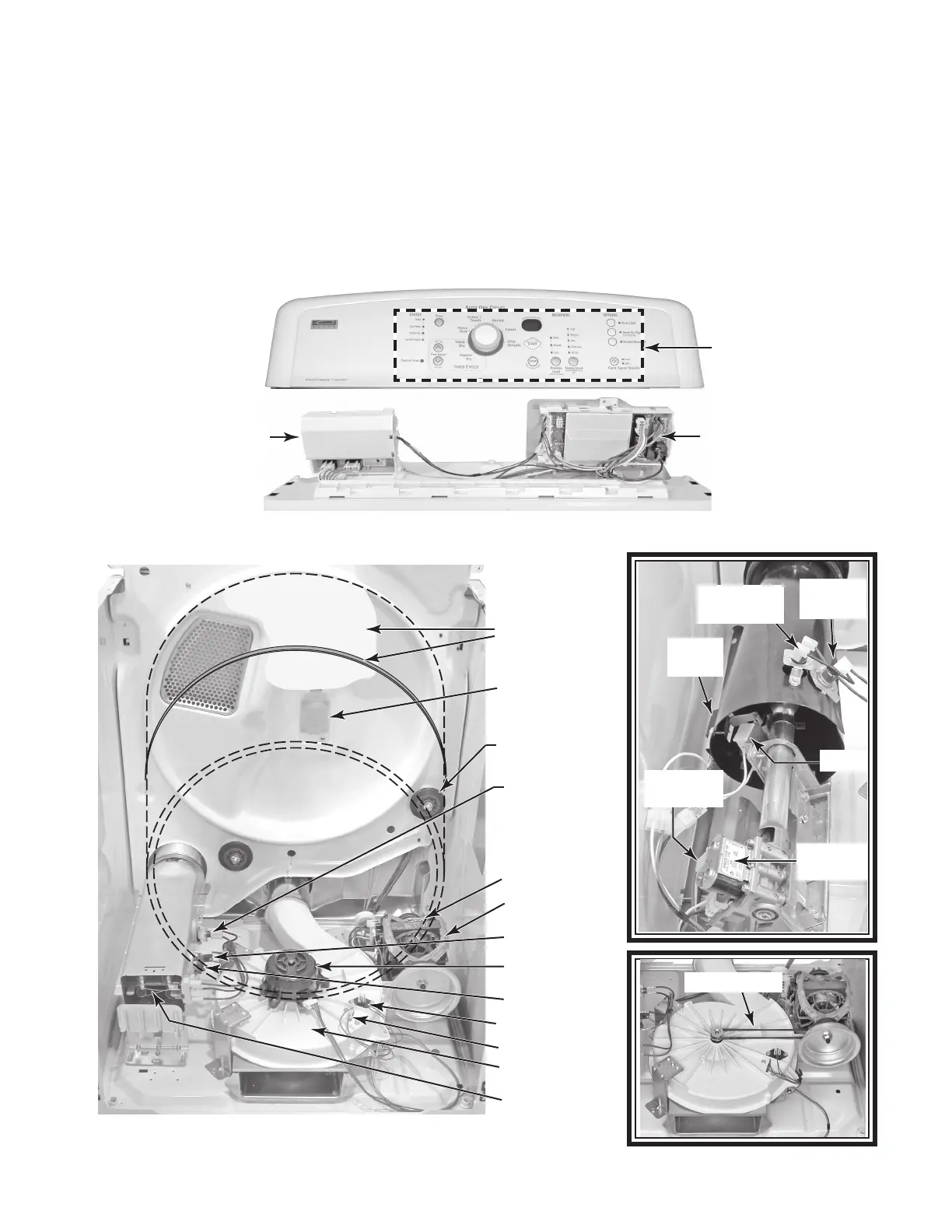

COMPONENT LOCATIONS
This section instructs you on how to service each component inside the Oasis Gas & Electric
Dryers. The components and their locations are shown below.
CONSOLE & TOP CABINET COMPONENTS
User Interface
Board
Machine
Control
LOWER CABINET COMPONENTS
Drum Light
Assembly
Drum Roller
(1 of 4)
Drum & Belt
Belt Switch
Drive Motor
Coil
Assembly
Ignitor
Flame
Sensor
High-Limit
Thermostat
High-Limit
Thermostat
Electric Heater
Thermal Cutoff
(Electric Only)
Inlet Thermistor
Outlet Thermistor
NOT SHOWN: Door Switch & Moisture Sensor
Thermal Fuse
Blower Fan
Thermal
Cutoff
Gas
Regulator
GAS BURNER ASSEMBLY
Blower Motor
Motor Control
(Dual Motor Models)
Dual Motor Model
Single Motor Model
Blower Belt
