4-17

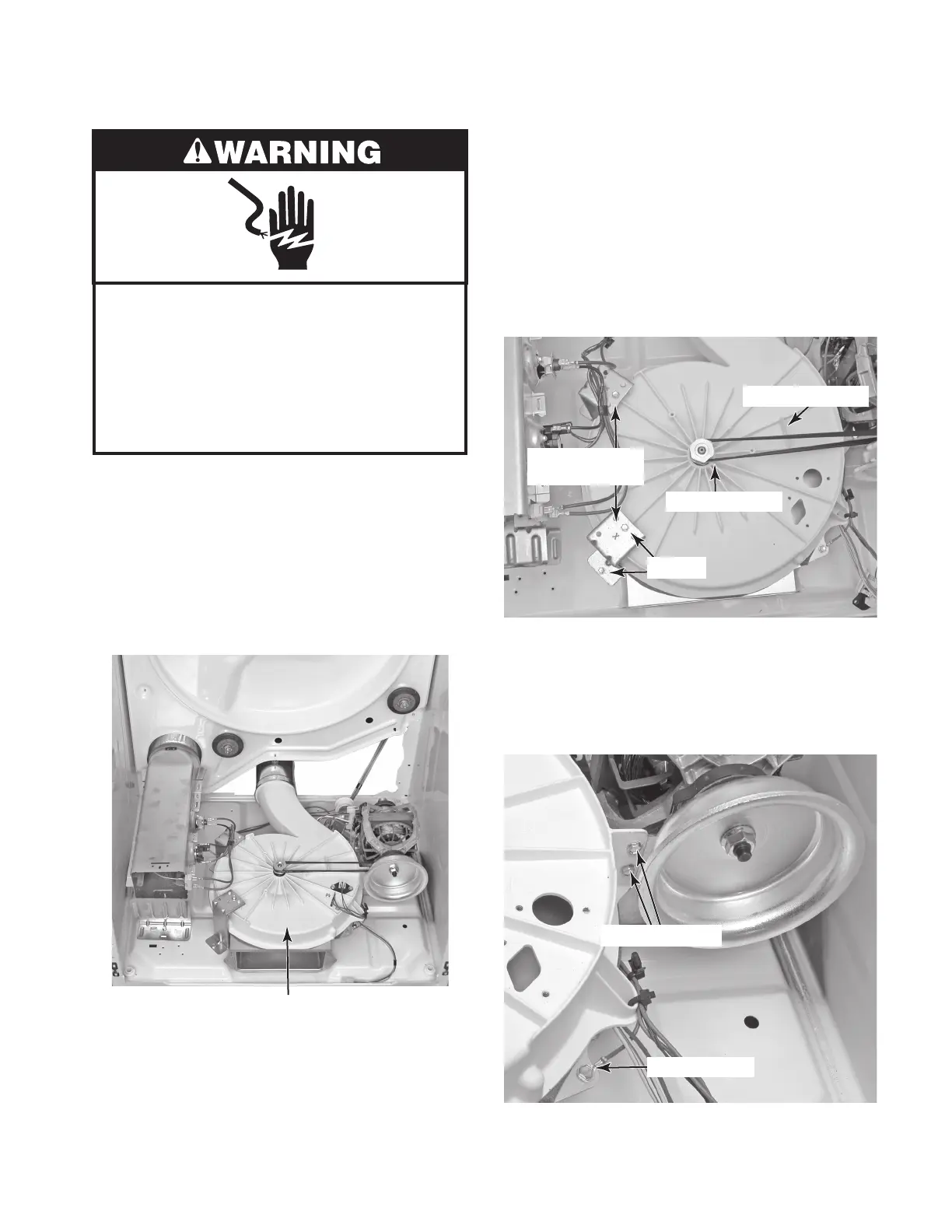

REMOVING THE BLOWER FAN (SINGLE MOTOR MODELS)
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug dryer or disconnect power.
2. Turn off gas supply to dryer.
3. Remove the belt and drum from the dryer
(see page 4-15 for the procedure).
4. Remove the thermal fuse and the outlet
thermistor from the blower fan housing
(see page 4-9 for the procedure).
7. Remove the two 5/16
˝ hex-head screws
from the drive motor and blower fan hous
-
ing.
8. Remove the ground wire screw from the
blower fan housing air duct.
5. Remove the belt from the blower fan pul-
ley.
NOTE: It is important that you reinstall
the belt properly to prevent the blower
from turning backwards. The post on the
blower housing (see below) will interfere
with the belt if it is installed incorrectly.
6. Remove the two 5/16
˝ hex-head screws
from each of the blower fan housing
mounting brackets.
Blower Fan Housing
Blower Fan Belt
Blower Housing
Brackets
Screws
Housing Screws
Ground Screw
Interference Post
Continued on the next page.
